EdgeStar AP10000HW User Manual

10
Operation – Using the Control Panel
Turning the Unit On or Off
Press the Power button and the unit will start in auto mode. If the ambient temperature is:
o
F, the unit will operate in cooling mode.
- Higher than 68
o
F but below or equal to
o
F, the unit will operate in fan mode.
- Below 68
o
F, the unit will operate in heating mode.
An indicator light will display next to the corresponding mode.
*NOTE: The display window shows the ambient room temperature from 32
o
F to 122
o
F
To turn the unit off, press the Power button again.
Selecting Between Automatic, Cooling, Heating, or Fan Mode
Press the MODE button to select the desired mode: automatic, cooling, heating or fan.
The indicator of your selected mode comes on.

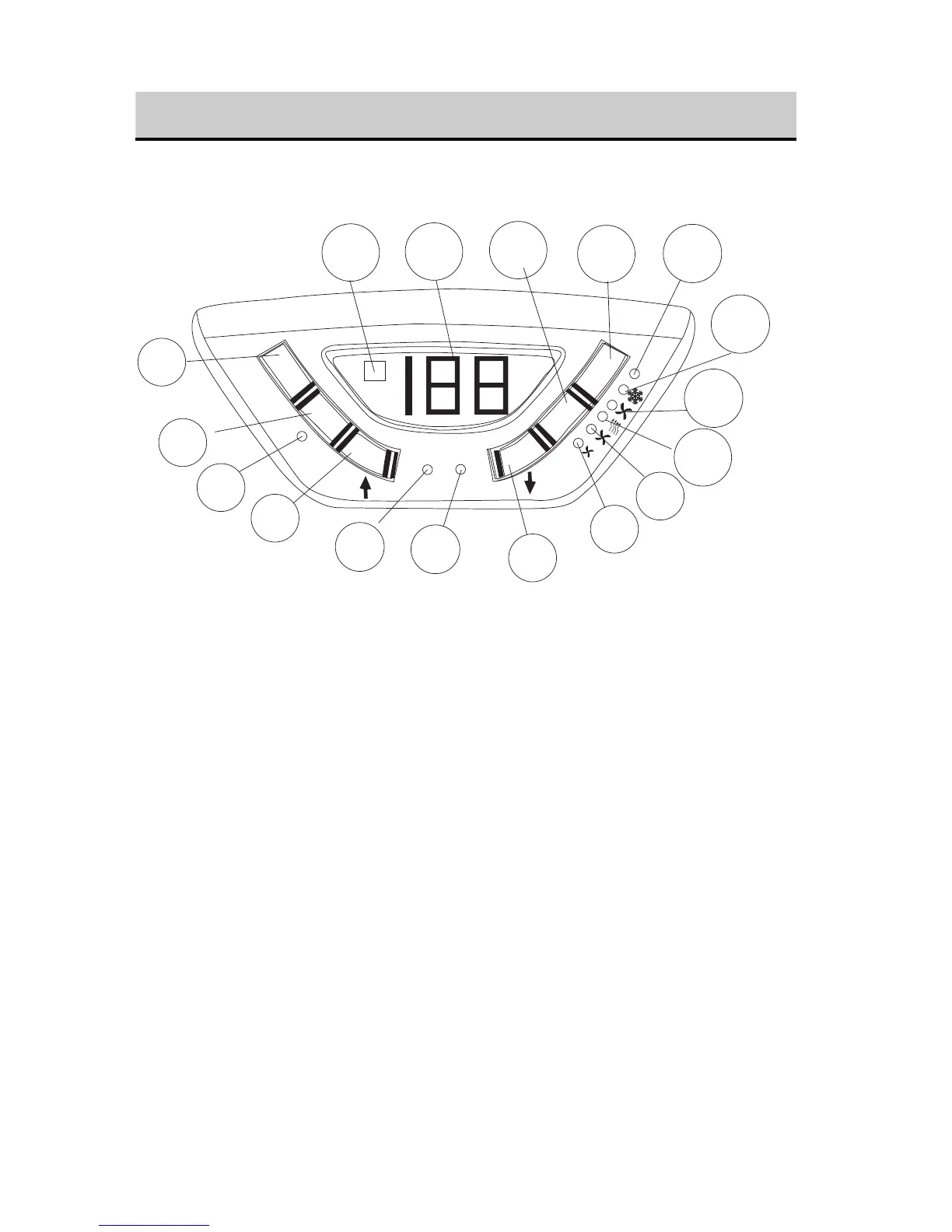

Control Panel Parts
FIG.12
1. Power button
2. Timer button
3. Timer operation indicator
4. Temperature up button
5. Compressor indicator
6. Water Full indicator
7. Temperature down button
8. Low fan speed indicator
9. High fan speed indicator
10. Heat mode indicator
11. Fan mode indicator
12. Cooling mode indicator
13. Automatic mode indicator
14. Mode (function) option button
15. Fan speed button
16. Display window
17. Receiver for remote control
- Higher than 74
74
1
TIMER
POWER
UP
DOWN
A/C
Water
SPEED
MODE
17
16
15
14
13
11
12
10
9
8
7
6
5
4
3
2
AUTO

EdgeStar AP10000HW Specifications

General

Description of Product	EdgeStar Portable Air Conditioner
Model	AP10000HW
Refrigerant	R22/15.2 OZ
Voltage / Frequency	115 V, 60 Hz
Power / Ampere Consumption for cooling	830W / 7.9 A
Power / Ampere Consumption for heating	920W / 8.2 A
Maximum Dehumidifying Capacity	50 pints/day
Fan speeds	2 (High and Low)
Timer	1- 12 hours

Weight and Dimensions

Net Weight	51 lbs.
Dimensions	12 3/8” x 14 1/16” x 27 15/16” (WxDxH)
