1-6 SECTION 1: OVERVIEW
installed contact EdgeTech for support. The tow fish needs to be properly connected to the topside and
powered up to perform this procedure.
1.4
Connecting the Magnetometer to the 4125 Tow Fish

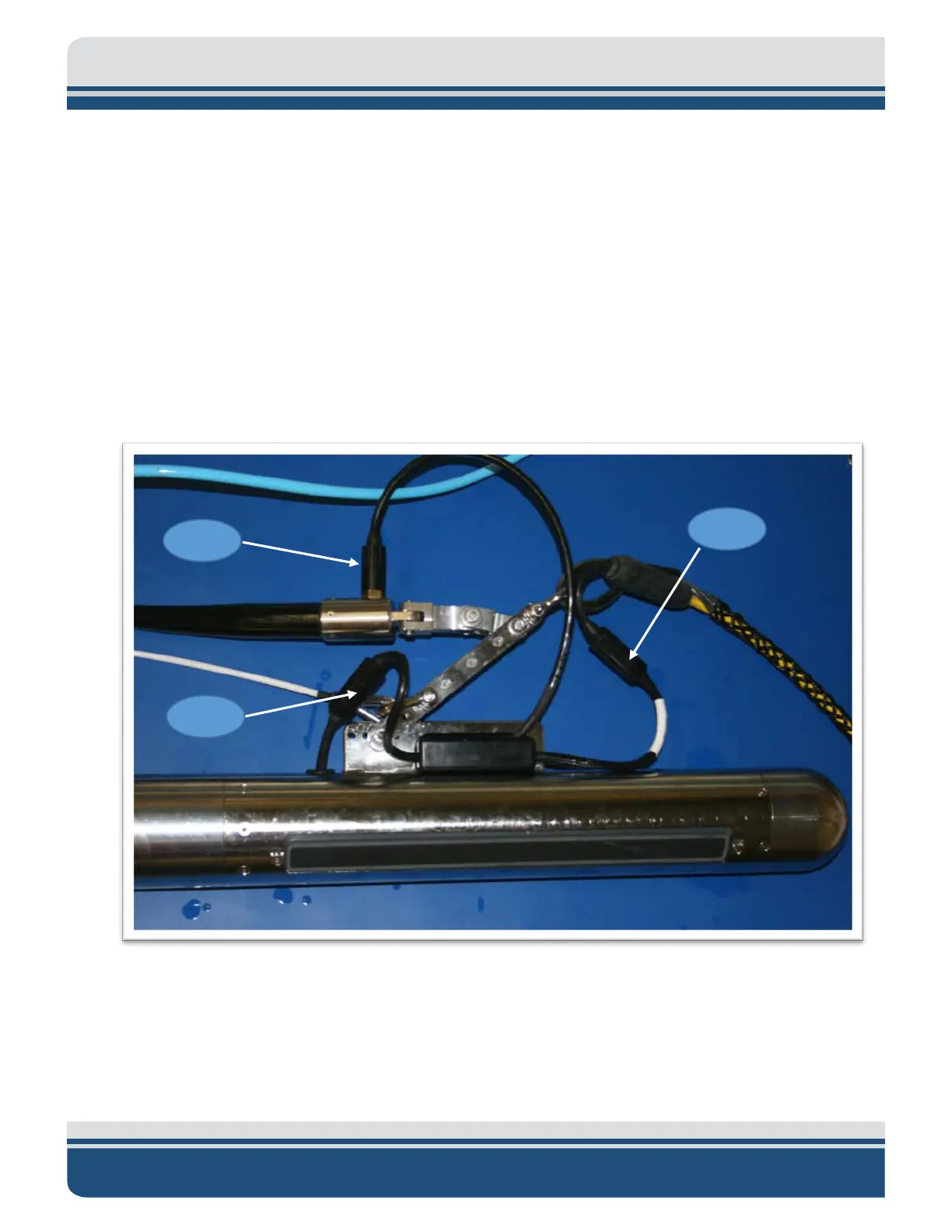

1) Connect Tow Fish Cable Extension to the Y-Splice Tow Fish Extension Cable Connector
2) Connect Female Tow Cable Connector into the Male Y-Splice Tow Cable Connector
3) Connect Y-Splice Magnetometer Female Connector into the Male connector on the Mini-
Explorer or SeaSpy 2 Magnetometer Tow Cable :
1)
2)
3)
4125 MAGNETOMETER INTERFACE 0016510_REV_A
