EDILGRAPPA PR16 - Equipment Operation; Head in Standard Configuration

PR16-32
11
2.04 EQUIPMENT OPERATION
2.04.01 HEAD IN STANDARD CONFIGURATION

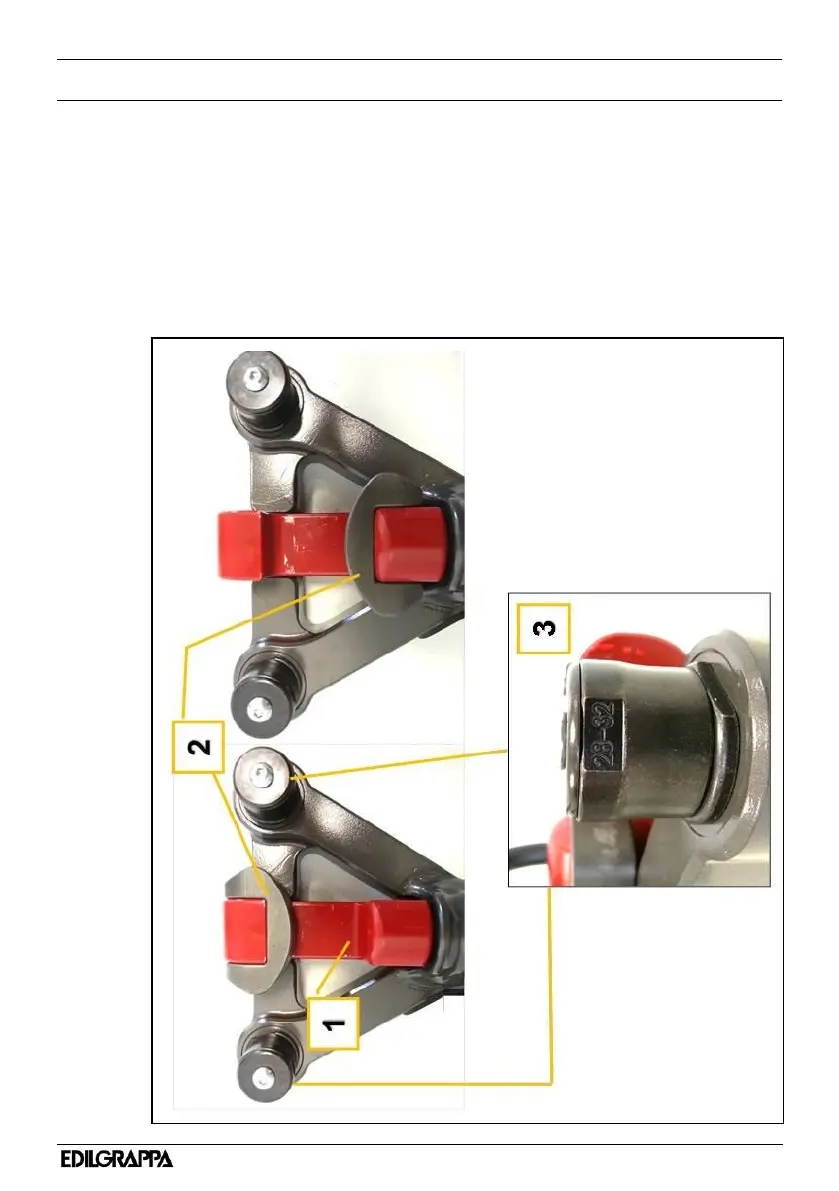

In its standard configuration, the tool head is supplied as shown in fig. 2A.
In particular, the following can be seen:
1. Cam support;
2. Cam, applicable for both push bending and pull bending;
3. Bending rollers (standard version: for bending - straightening from Ø28mm to Ø32mm).
Fig. 2A
