CAM:
- Loosen the lock screws (see ref. A fig. 5B);
- Remove the die ( see ref. B in fig. 5B ) as indicated by the arrow;
- Mount the new cam making sure that the bevel ( see ref. C in fig. 5B ) is facing
downwards, that is, towards the surface of the cam support housing.

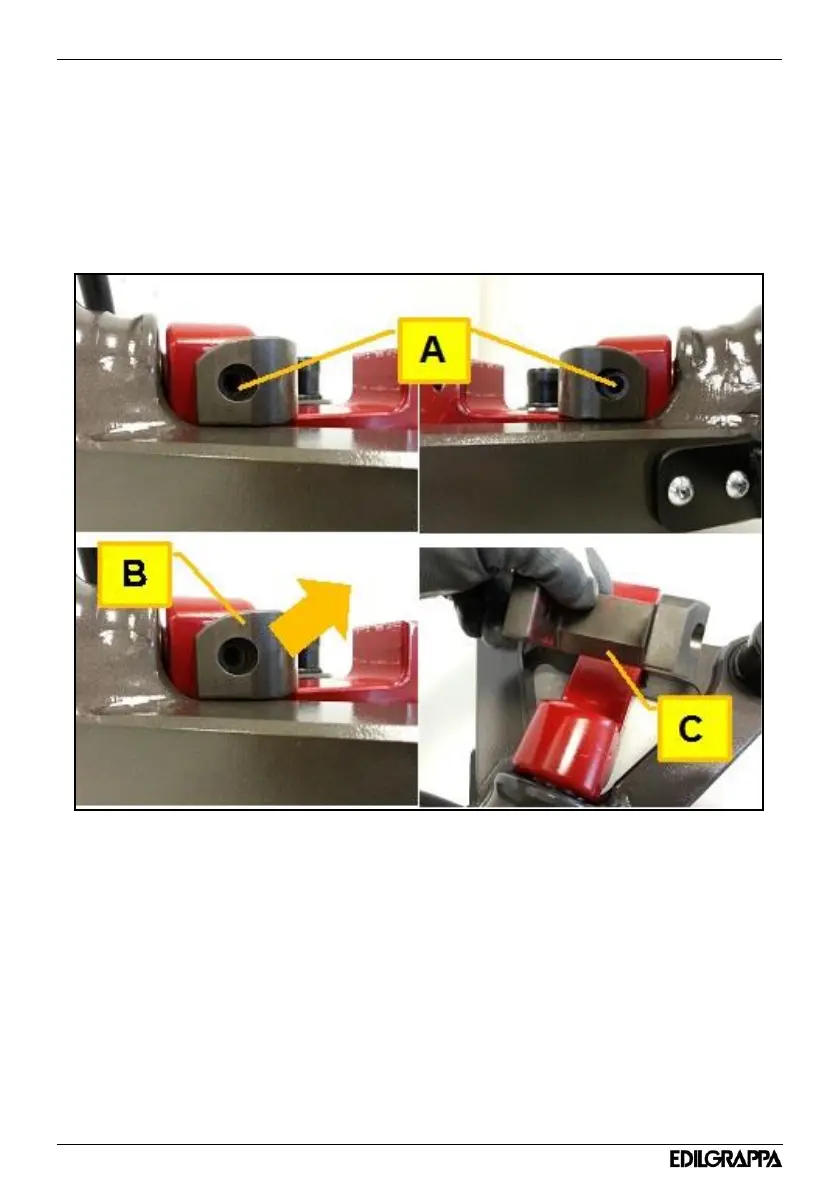

Fig. 5B
