EdilKamin BASIC User Manual

ENGLISH
36

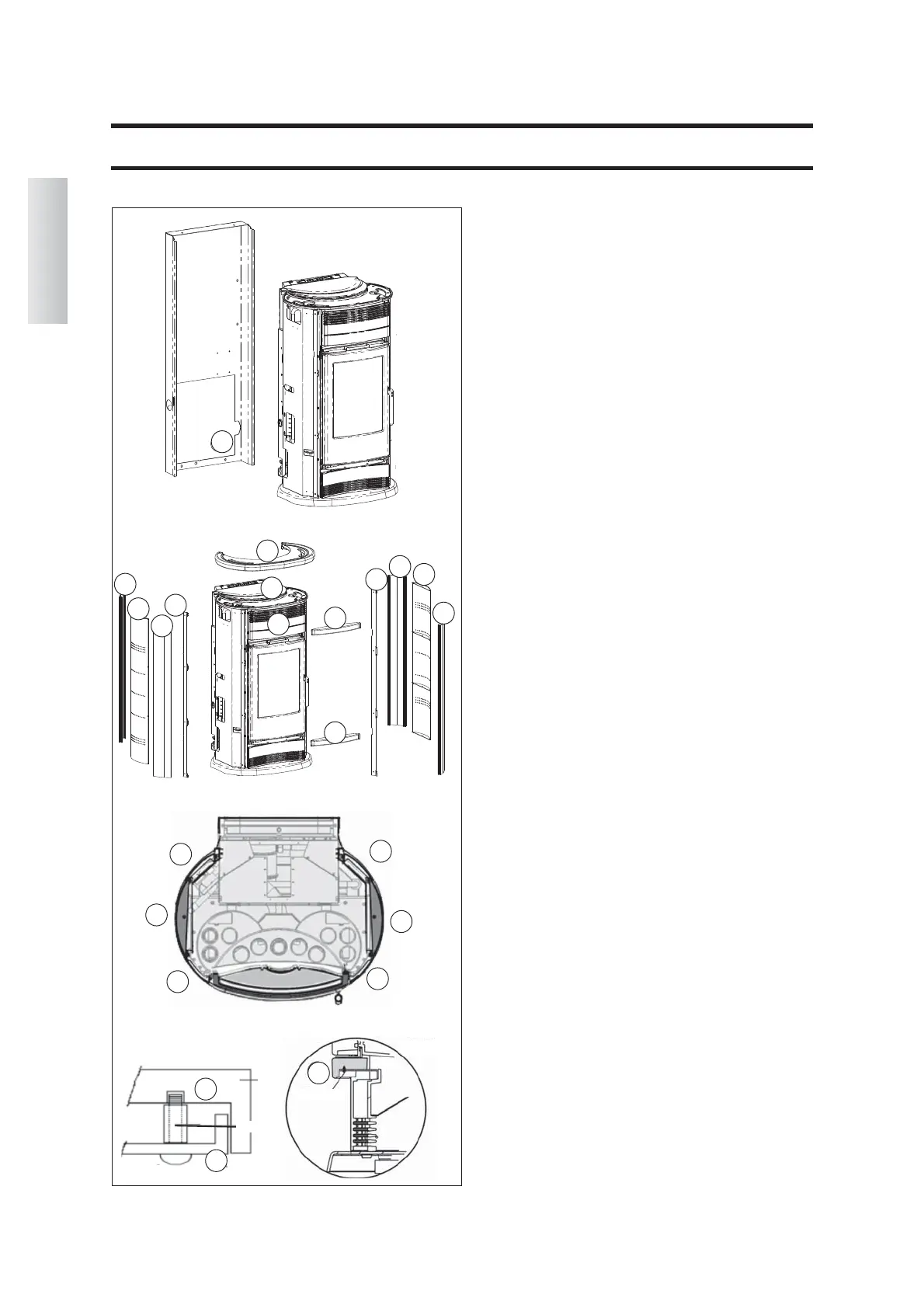

MOUNTING THE COVERING
MAGIC
INCLUDED HARDWARE:
2 M6x25 screws
2 M6x12 screws
4 silicone spacers for ceramic top
8 flat washers M6
2 bushings
The thermo-stove comes furnished with its lateral metal
side panels already assembled, while its ceramic upper
and lower front panels (72) and top (73) must be assem-
bled as follows:
ASSEMBLING THE UPPER FRONT PANEL
Pull the cast iron upper grille upwards (19).
Position the upper front panel (72) against the metallic
front panel support located above the door.
Use an Allen key to fasten the front panel in place using
the 2 supplied M6x25 screws and the 2 supplied M6
washers (the door must be opened before performing this
operation).
NOTE:
In order to correctly install the upper front panel (72), the
supplied bushing must be positioned between it and the
metallic front panel (14), as indicated in detail "Z".
ASSEMBLING THE LOWER FRONT PANEL
Position the front panel (72) and use an Allen key to
fasten it in place using the 2 supplied M6x25 screws and
the 2 supplied M6 washers, as indicated in detail "X".
ASSEMBLING THE CERAMIC TOP (73).
• insert the 4 ceramics spacers into the 4 free respective
holes in the cast iron top
• position the ceramic top (73) to make sure it rests pro-
perly
• if necessary, insert a washer between the silicone spacer
and the cast iron top.
NOTE:
If the metal side panels need to be removed, do the fol-
lowing:
Remove the ceramic top (73) and disassemble the rear
panel (27), the two profiles (29) and the cast iron top
along with the plate (139).
At this point the side panels (85) can be extracted, by
pulling them upwards, along with the 4 aluminium
uprights (86-88).
72
72
72
29
70
70
70
132
132
132
29
70
70
70
132
132
132
73
72
72
73
29
85
86
88
86
29
85
86
111
36
37
115
114
113
86
86
112
112
130
131
115
114
113
86
88
ESPRIT
PRESTIGE
MAGIC
27
26
25
27
26
25
27
26
25
34
34
131
130
37
36
72
72
29
70
70
70
132
132
132
29
70
70
70
132
132
132
73
72
72
73
29
85
86
88
86
29
85
86
111
36
37
115
114
113
86
86
112
112
130
131
115
114
113
86
88
ESPRIT
PRESTIGE
MAGIC
27
26
25
27
26
25
27
26
25
34
34
131
130
37
36
72
72
29
70
70
70
132
132
132
29
70
70
70
132
132
132
73
72
72
73
29
85
86
88
86
29
85
86
111
36
37
115
114
113
86
86
112
112
130
131
115
114
113
86
88
ESPRIT
PRESTIGE
MAGIC
27
26
25
27
26
25
27
26
25
34
34
131
130
37
36
27
139
19
86
88
86
85
85
73
29
29
72
72
86
Detail X
85
85
86
88
86
86
2 Screws
72
14
Detail Z
bushings
screw
