EdilKamin BASIC User Manual

ENGLISH
37

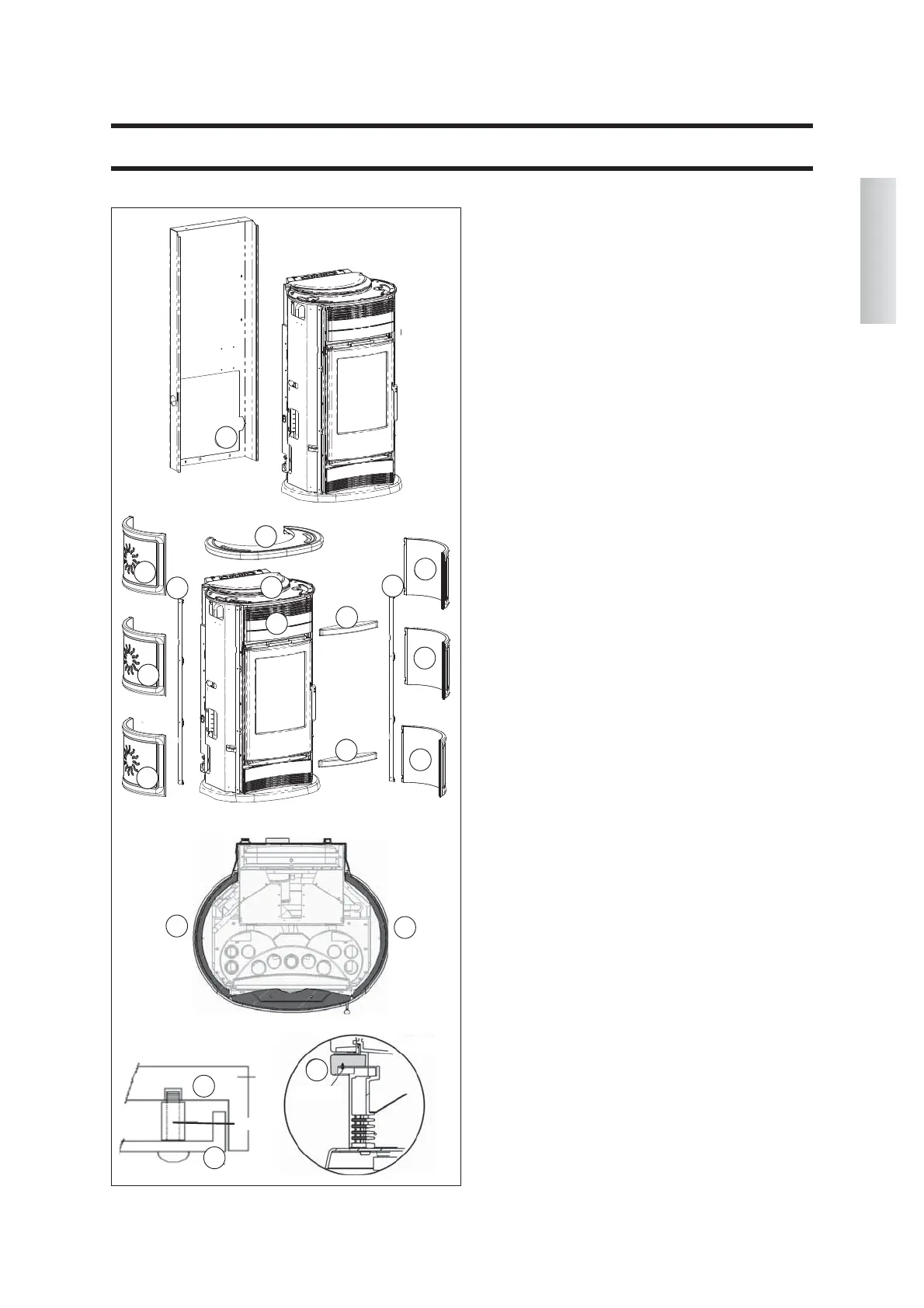

MOUNTING THE COVERING
PRESTIGE
INCLUDED HARDWARE:
2 M6x25 screws
2 M6x12 screws
4 silicone spacers for ceramic top
8 flat washers M6
2 bushings
ASSEMBLING THE LATERAL TILES
Remove the rear panel (27) and the two profiles (29) and
insert the tiles (70) on both sides.
As the tiles are made by casting, their thicknesses may
vary slightly. The silicone spacers can be used to compen-
sate for any variations in thickness, without compromi-
sing the aesthetics of the stove itself.
Reinstall the profiles (29) and the rear panel (27).
ASSEMBLING THE UPPER FRONT PANEL
Extract the cast iron upper grille, by pulling it upwards,
and position the upper front panel (72) against the metal-
lic front panel support located above the door.
Use an Allen key to fasten the front panel in place using
the 2 supplied M6x25 screws and the 2 supplied M6
washers (the door must be opened before performing this
operation).
NOTE:
In order to correctly install the upper front panel (72), the
supplied bushing must be positioned between it and the
metallic front panel (14), as indicated in detail "Z".
ASSEMBLING THE LOWER FRONT PANEL
Position the lower front panel (72) and use an Allen key
to fasten it in place using the 2 supplied M6x12 screws
and the 2 supplied M6 washers, as indicated in detail "X".
ASSEMBLING THE CERAMIC TOP (73).
• insert the 4 ceramics spacers into the 4 free respective
holes in the cast iron top
• position the ceramic top (73) to make sure it rests pro-
perly.
• if necessary, insert a washer between the silicone spacer
and the cast iron top.
NOTE:
• the red enamel with crystalline, applied to the
majolica, crazes (cracks) evenly over the whole surface.
Crazing is not a defect but is a characteristic of enamel
applied to majolica known as “craclè”.
• The ceramic parts (majolica) are cast and enamelled
manually and may present small defects that will not
affect their quality (small dents or enamel porosity).
70
70
72
72
29
70
70
70
132
132
132
29
70
70
70
132
132
132
73
72
72
73
29
85
86
88
86
29
85
86
111
36
37
115
114
113
86
86
112
112
130
131
115
114
113
86
88
ESPRIT
PRESTIGE
MAGIC
27
26
25
27
26
25
27
26
25
34
34
131
130
37
36
72
72
29
70
70
70
132
132
132
29
70
70
70
132
132
132
73
72
72
73
29
85
86
88
86
29
85
86
111
36
37
115
114
113
86
86
112
112
130
131
115
114
113
86
88
ESPRIT
PRESTIGE
MAGIC
27
26
25
27
26
25
27
26
25
34
34
131
130
37
36
72
72
29
70
70
70
132
132
132
29
70
70
70
132
132
132
73
72
72
73
29
85
86
88
86
29
85
86
111
36
37
115
114
113
86
86
112
112
130
131
115
114
113
86
88
ESPRIT
PRESTIGE
MAGIC
27
26
25
27
26
25
27
26
25
34
34
131
130
37
36
27
139
19
73
29
29
72
72
70
70
70
70
70
70
72
Detail X
2 Screws
72
14
Detail Z
bushings
screw
