TECHNICALAND HEATING SPECIFICATIONS
Hopper capacity 25 kg
Efficiency 90,34 %
Available power 10 kW
Time between refuellings (min/max) 11 /23 hours
Fuel consumption (min/max) 1,1 / 2,2 kg/h
Heatable room dimensions 240 m³
Weight including packaging 203 kg
Smoke duct diameter (female) 80 mm
Air intake duct diameter (male) 40 mm
ELECTRICAL SPECIFICATIONS
Power supply 230Vac +/- 10% 50 Hz
Average power consumption 150 W
Power consumption during
ignition
400 W
Remote control frequency
(supplied as standard)
infrared
Protection on mains power
supply
5 x 20 2 A 250
VAC fuse
Electronic circuit board
protection
5 x 20 2 A 250
VAC fuse
SAFETY DEVICES
THERMOCOUPLE: on the smoke outlet.
It measures the smoke temperature.
It controls the ignition, operating and shutdown stages
according to the parameters set.
AIR FLOW SENSOR: on the intake duct.
It trips when the flow of combustion air is not correct,
therefore causing low pressure problems in the smoke
circuit.
SAFETY THERMOSTAT: it trips if the temperature
inside the stove is too high.
It stops pellet loading, thus causing the stove to go out.
PELLET LOADING
A convenient front drawer allows easy pellet loading without
having to remove the firebox from its housing, thus making it
absolutely safe in compliance with EN 14785 standards.
BACKUP BATTERY
A backup battery is found on the control board (3-Volt CR
2032 battery). Its malfunction is indicated with the following
messages (not considered a defect but due to normal wear-
and-tear): “Check Battery”. For more detailed information,
please contact the DEALER who has performed the first 1st
ignition.

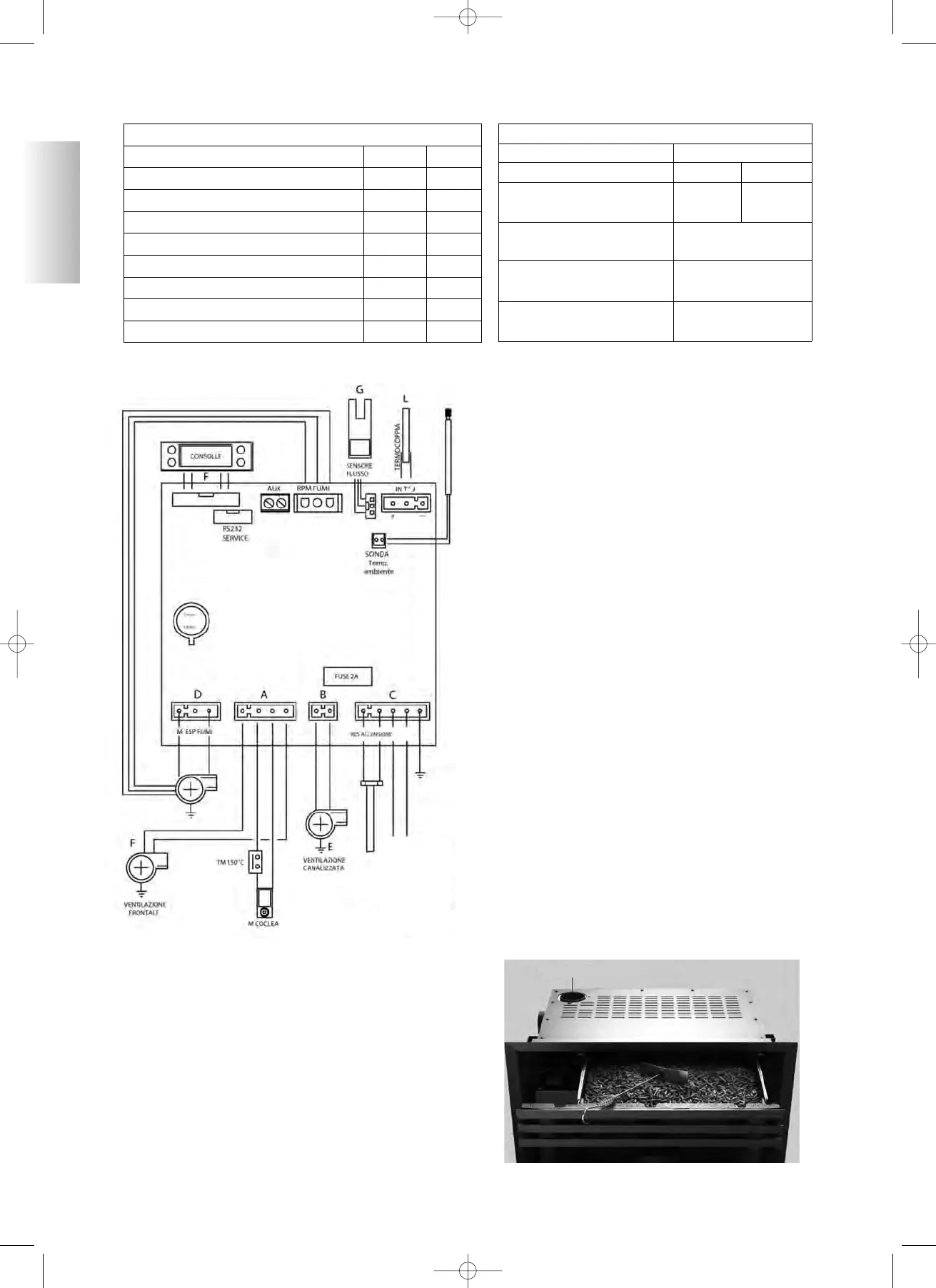

WIRING DIAGRAM
LEGEND:
CONSOLLE: CONSOLE
RS232 SERVICE: RS232 SERVICE
RPM FUMI: SMOKE RPM
SENSORE FLUSSO: FLOW SENSOR
TERMOCOPPIA: THERMOCOUPLE
SONDA TEMP. AMBIENTE: ROOM PROBE
M. ESP. FUMI: SMOKE EXPULSION MOTOR
FUSE 2A: 2A FUSE
RES ACCENSIONE: IGNITION ELEMENT
VENTILAZIONE FRONTALE:VENTILATION FRONT
MOTORE COCLEA: SCREW FEEDER MOTOR
VENTIL. CANALIZZATA: VENTILATION CHANNELLED
RETE 230Vac: 230V AC POWER SUPPLY
smoke outlet Ø 8
backup battery
