ENGLISH
23

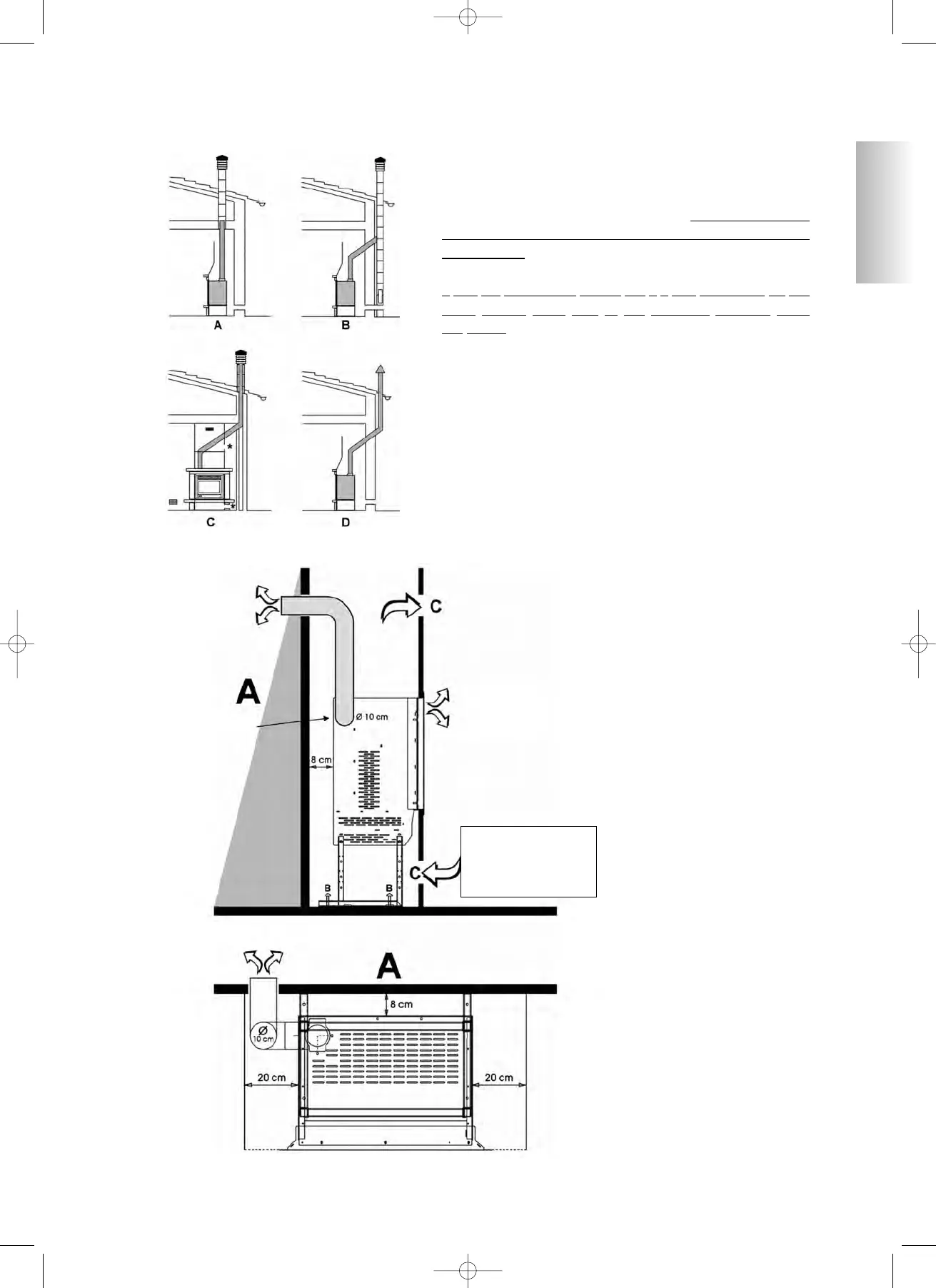

POSSIBLE INSTALLATION LAYOUTS (fig. 2)
A: internal flue up to roof
B: external brick-built flue
C: internal brick-built flue
D: external double-walled steel flue (for the following
installation, the entire flue must have a well insulated
double wall)
* two air circulation grilles (36 x 9 cm, provided) on the
front and/or right side of the fireplace (looking from
the front)
LOCATION AND AIR CHANNELLING (fig. 3)
A: adjacent room
B: anchor plugs to support
insert (must be fixed)
C: air circulation grille
NB: FIT ACCESSORY
AIR CIRCULATION
GRILLE (C) ON THE
FRONT AND/OR
RIGHT SIDE OF THE
COVERING
Hot air outlet
in adjacent room
or the same room.
Outlet for coupling channel
to
adjacent room
or the same room.
Hot air outlet
from front grille
NB:
FIT ACCESSORY AIR
CIRCULATION GRILLE (C)
Hot air outlet in adjacent room
or the same room.
