ENGLISH
a Box
n°
1
b Ø 8 pipe
n°
1
c Smoke outlet end-piece
n°
1
g Pipe blocking clamp
n°
2
h
Wall collar
n°
2
i
Screws
n°
4
l
Dowels
n°
4
f
d
c
b
a
e
g
h
h
i
l
i
b
c
h
h
d
i
g
b
l
l
e
KIT 12 BIS (code 778160) (optional)
TO CHANNEL HOT AIR INTO A REMOTE ROOM
IN ADDITION TO THAT OF INSTALLATION
Includes:
NOTE:
THE FIRST PART OF THE FLEXIBLE PIPE MUST BE
COMPLETELY “RELAXED” IN SUCH AWAY TO ELI-
MINATE CORRUGATION. IN THIS WAY, THE INTER-
NAL DIAMETER WILL BE SLIGHTLY ENLARGED TO
FAVOUR ENTRANCE.
Procedure:

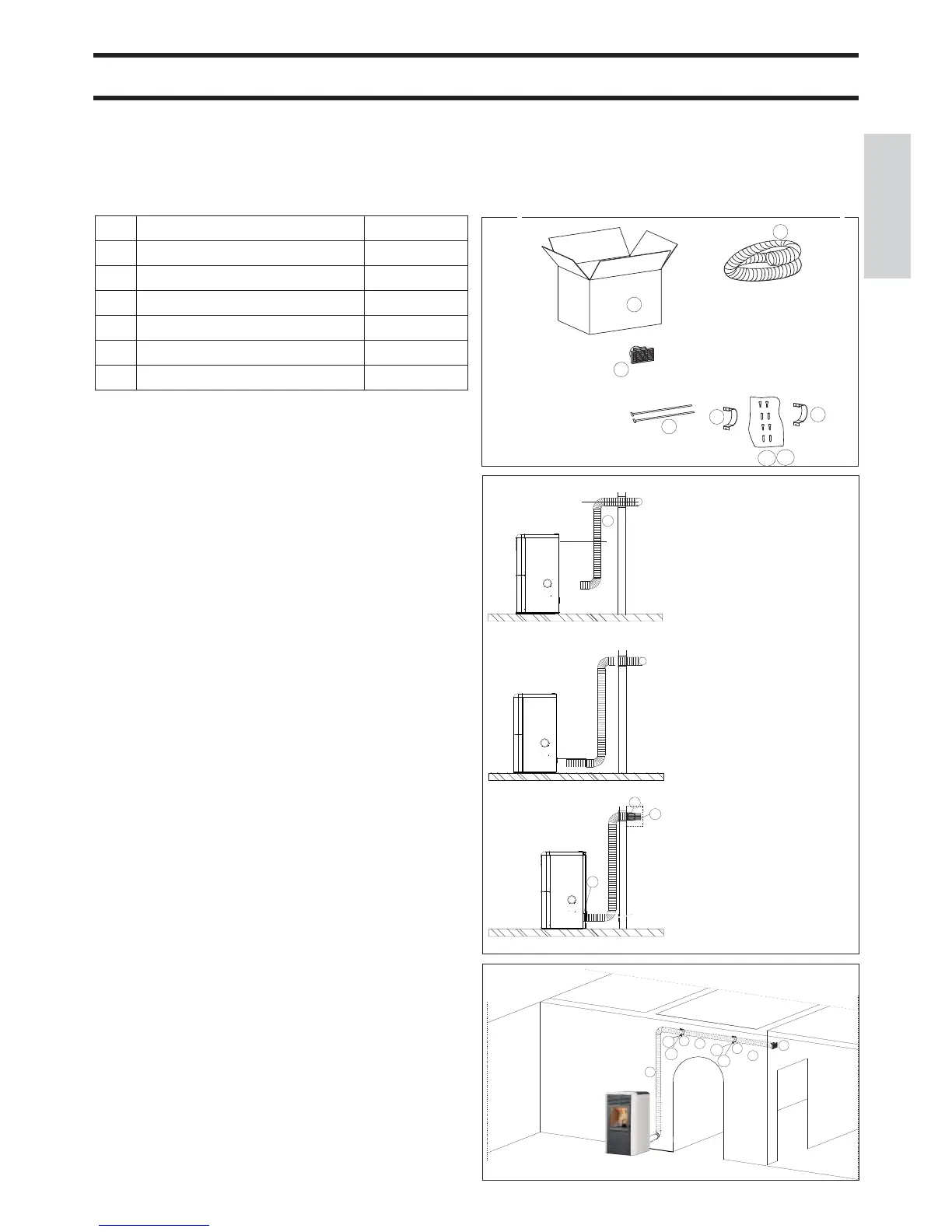

- Defi ne the position of the stove with respect to the walling
(fi g. a).
- Place the stove in its defi nite position.
- Extend the aluminium pipe (b) for hot air channelling, wi-
thout connecting the stove outlet.
- Fit the alluminium pipe to the hot air oulet on the back of the
stove (fi g.C) and fasten it by its blocking clamp (g)
- Install the hot air outlet(c) into the room to heat and the allu-
minium pipe (b) fi xing it by the wall collar (h) and nogs with
screws (i-l)
HOT-AIR DUCTWORK
c
g
g
d
f
e
fi g. c
b
d
e
fi g. a
fi g. b
