- 33 -
ENGLISH

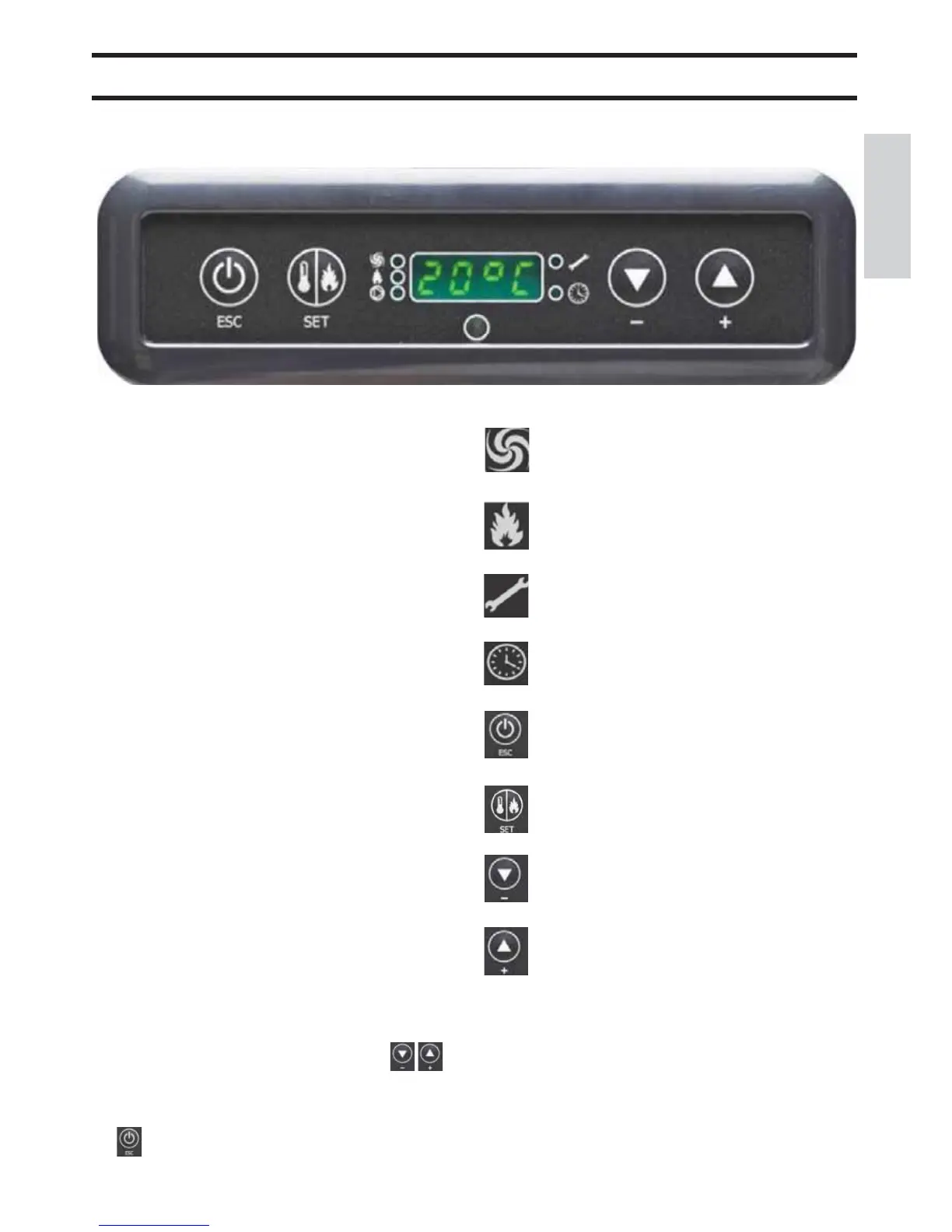

INSTRUCTIONS FOR USE
ON/OFF key
this also serves to con rm/exit
Selection key:
Automatic/Manual/Settings menu
Key to DECREASE power/temperature and
to scroll back from the current selection
Key to INCREASE power/temperature and
to scroll forward from the current selection
This indicates the functioning of the fan
This indicates the functioning of the pellet loading
motor
This indicates that the stove is functioning within the
parameters of the menu (technical assistance centre
only)
This indicates that the timer is active, and that an
automatic time programme has been chosen
DISPLAY INDICATIONS
OFF Shut-off phase in progress, duration approx.
10 minutes
ON AC Stove in the rst ignition phase: pellet load
ing and waiting for the ame to light
ON AR Stove in the second ignition phase, start
normal combustion
PH Stove in air-exchanger heating phase
P1-P2-P3 Power level set
10….30°C Desired temperature level in the room
where the stove is installed
Pu Automatic cleaning of chamber in progress
SF Stop Flame: stops functioning due to
probable lack of pellets
CP-TS-PA Control menu available only to Technical
Assistance Centres
AF Ignition Failed: stops functioning for failed
ignition
H1……H9 System in alarm, the number indicates the
cause of the alarm
Bat1 Clock battery dead (type CR2032)
Fron Enable front ventilation
Cana Enable ducted ventilation
FrCa Ventilations enabled
When the stove is in standby, the display will show the word
OFF together with the power set if the stove is in MANUAL,
or the word OFF along with the set temperature if the stove is
in AUTOMATIC.
SCREW FILLING.
The pellet transport duct (screw) has to be lled when the boiler
is new (on rst ignition) or if the stove has completely user all the
pellets.
To activate reloading, simultaneously press the keys
,
the display will show the wording “RI”.
The reloading function stops automatically after 240” or when the
key
is pressed.
CONTROL PANEL
