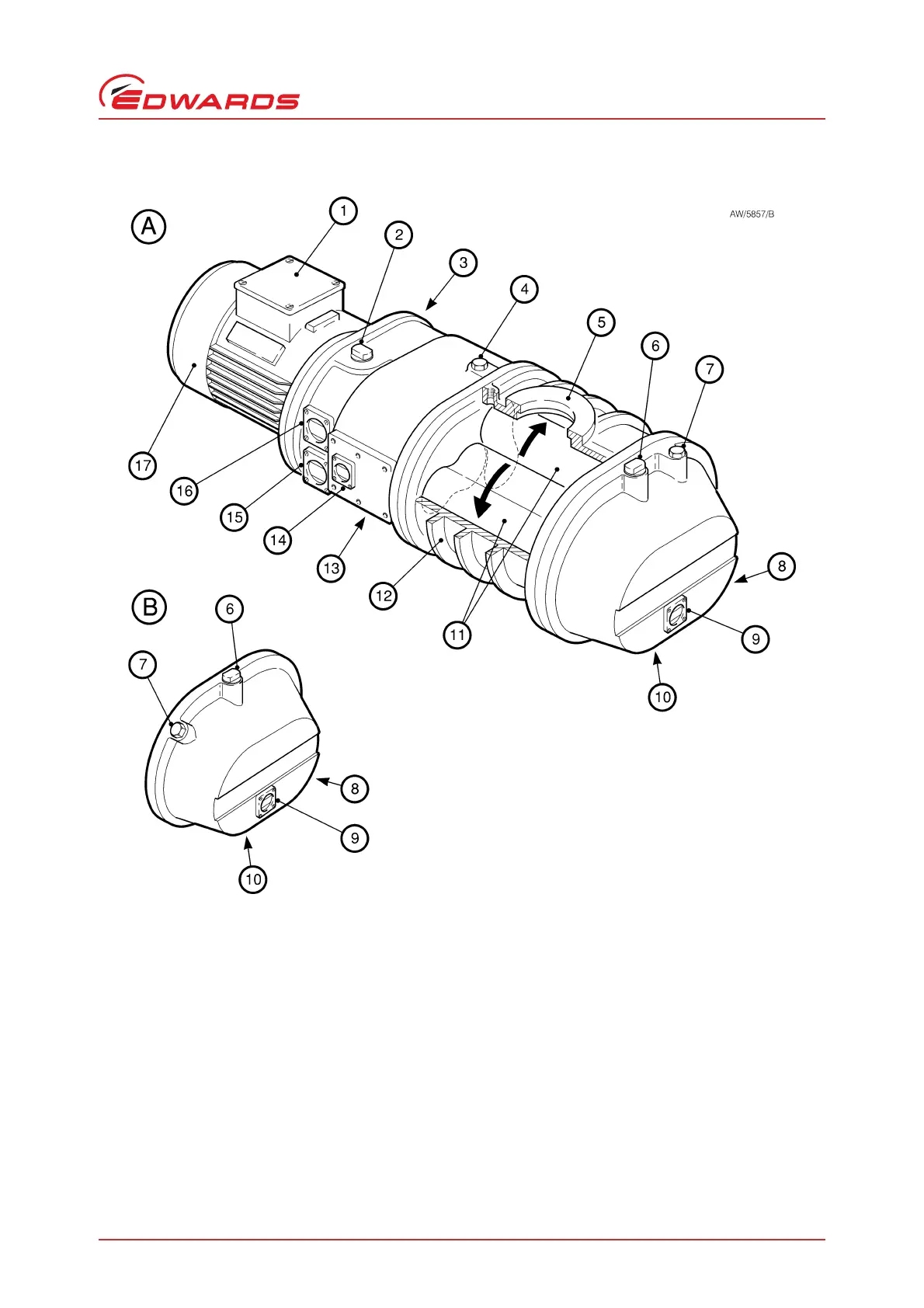

Figure 2 - All EH1200FX, EH2600 and EH4200 pump variants
1. Terminal box
2. Shaft seal reservoir vented oil filler plug
3. Cooling water connection
4. Hydrokinetic drive/gearbox oil filler plug *
5. Inlet flange
6. External evacuation point
7. Gear cover oil filler plug
8. Cooling water connection
9. Oil level sight glass (gear cover)
10. Gear cover oil drain plug (under the pump)
11. Rotors
12. Stator housing
13. Hydrokinetic drive/gearbox oil drain plug
(under the pump)
14. Direction of rotation sight glass
†
15. Oil level sight glass (hydrokinetic drive/
gearbox)
16. Oil level sight glass (shaft seal reservoir)
17. Motor fan cover
† EH1200 pumps only.
A. All EH2600 and EH4200 pumps
B. All EH1200 pumps
