Edwards RV5 User Manual

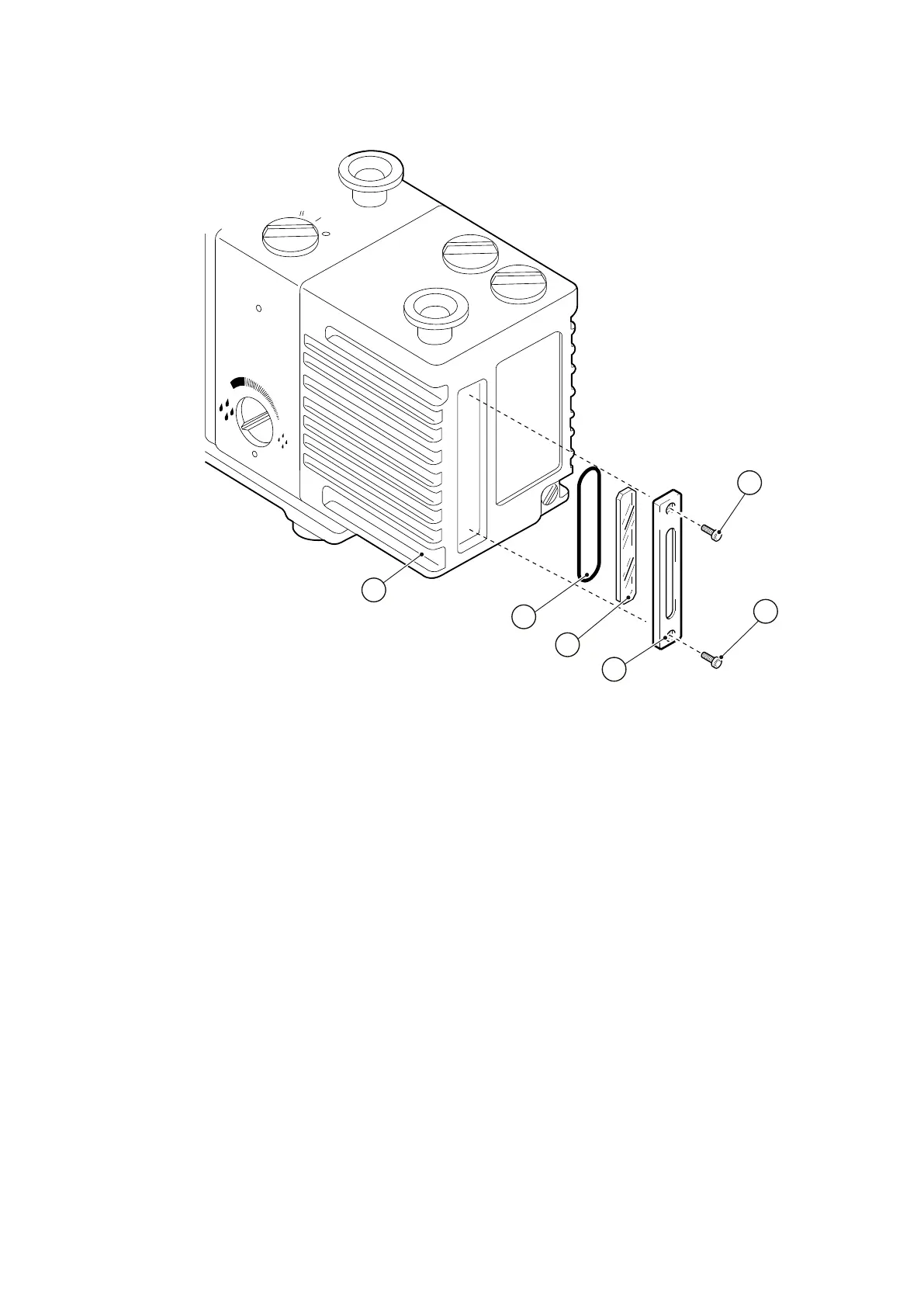

Figure 9 Sight-glass assembly
CS/1111/A
1
1
2
3
4
5
1. Screws (2 o M6 x 20) 2. Bezel
3. Sight-glass 4. O-ring
5. Oil-box
1. Screws (2 o M6 x 20) 2. Bezel
3. Sight-glass 4. O-ring
5. Oil-box
6.8 Clean the motor fan-cover and enclosure
If the motor fan-cover and enclosure are not kept clean, the air-ow over the motor can
be restricted and the pump may overheat.
1.
Switch o the pump and disconnect it from the electrical supply.
2.
Use a dry cloth and a so brush to remove dirt and deposits from the fan-cover
and enclosure.
6.9 Clean and overhaul the pump
Clean and overhaul the pump as described in the instrucons supplied with the clean
and overhaul kit (see Spares on page 51).
6.10 Fit new blades
Fit new blades to the pump as described in the instrucons supplied with the blade kit
(see Spares on page 51).
03/2021 - ©Edwards Limited
Page 45A65201880_AA
A65201880_AA - Maintenance
