eego amplifier EE-21x EE-22x User Manual
Rev. 5, DRN-PDO-1664 20 of 26 2016-07-11
POWER AND USB CONNECTOR
The power connector of the eego amplifier is compatible with the DC output cable of the supplied
battery charger. Do not connect any other power source to the amplifier!
The USB connector of the eego amplifier is typically connected with the USB port of a computer (USB
plug type A). This cable is necessary for data transmission. It does not power the amplifier or battery
but supplies the electrically isolated USB communication module. Please inspect the settings for the
USB ports available at your computer, and make sure ‘power saving’ options are turned off for the
USB ports.

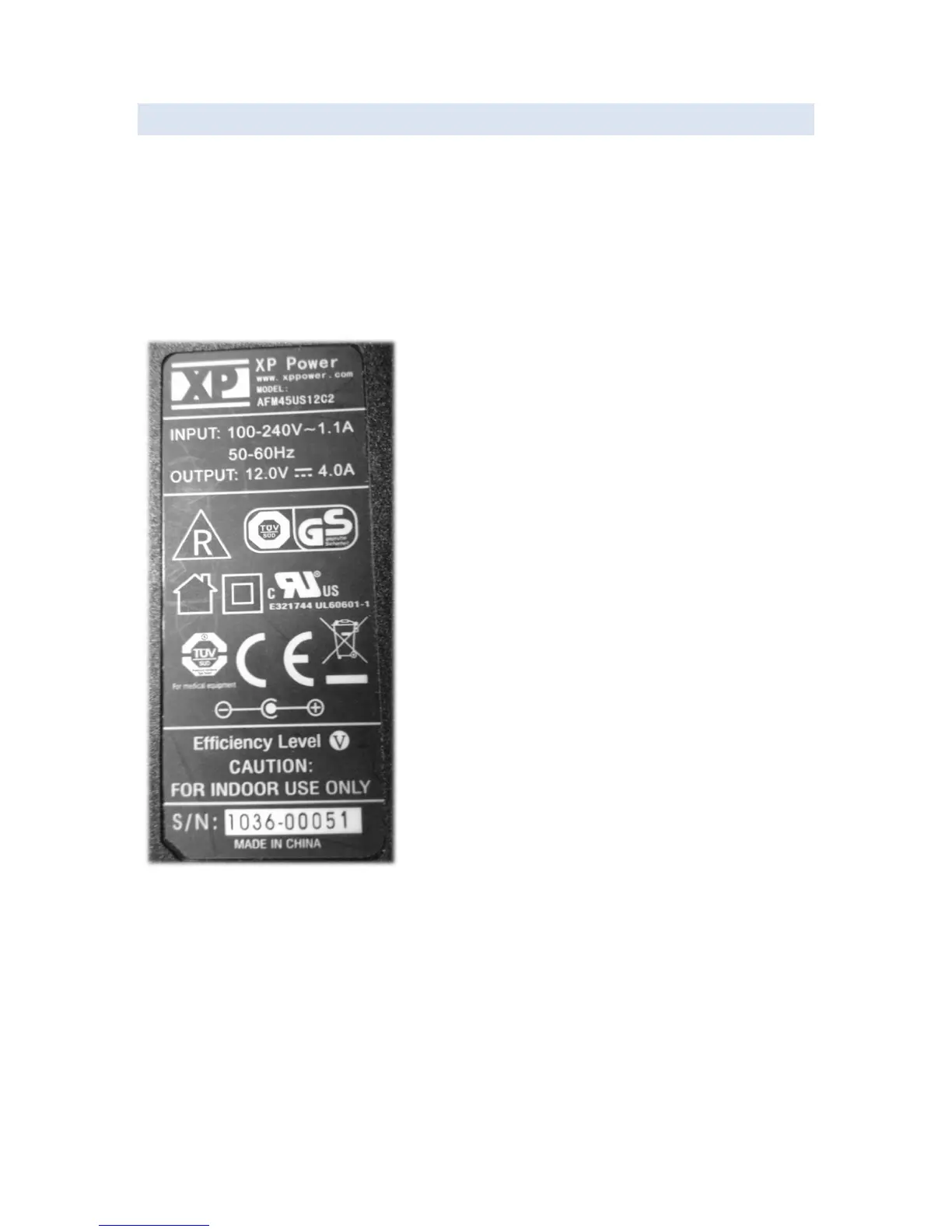

Figure A-0-1. The label of the compatible power supply.
