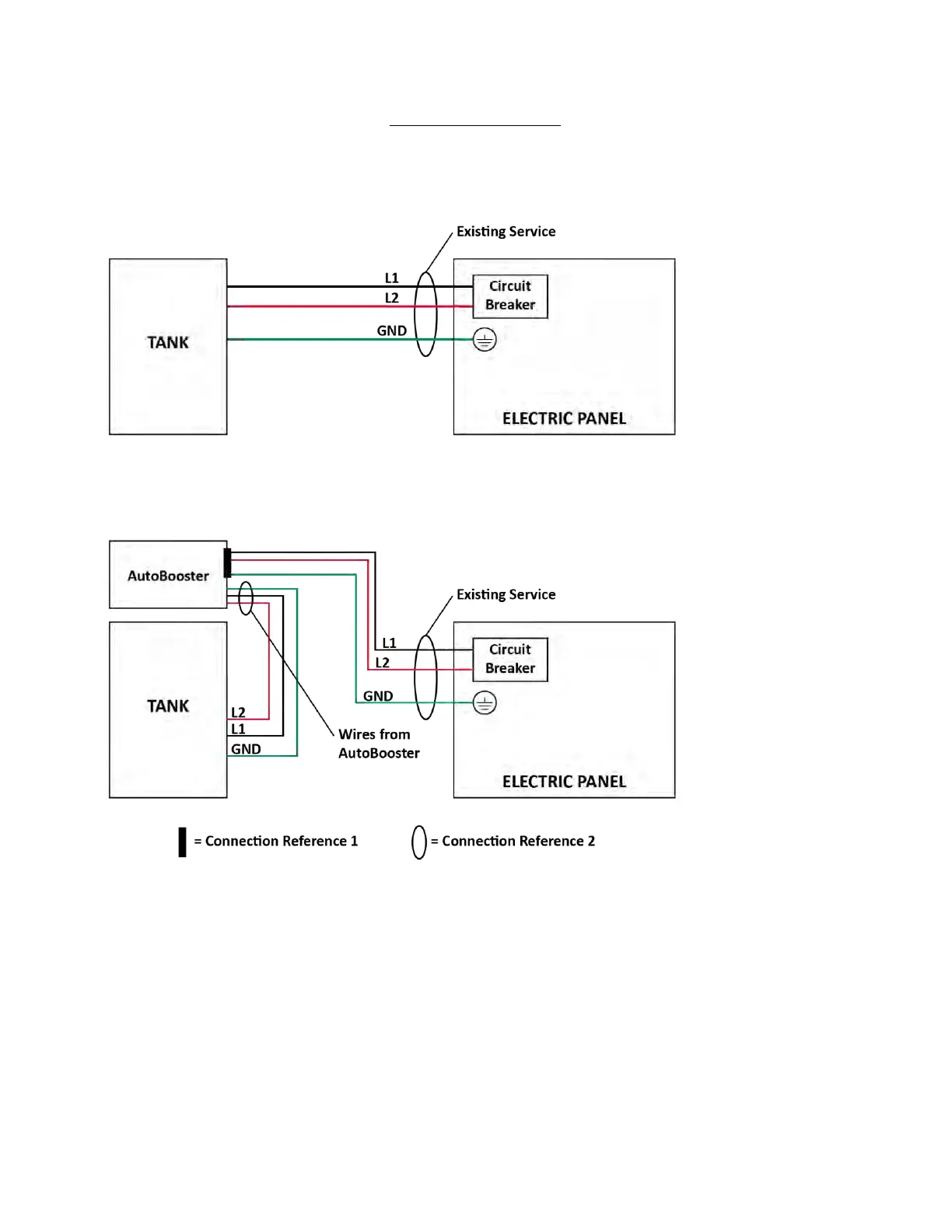

Electrical Wiring Diagram
Normal Tank Configuration:
AutoBooster™ and Electric Tank Configuration:
Connection Reference 1, shown on page 11.
Connection Reference 2, shown on page 12.
