13

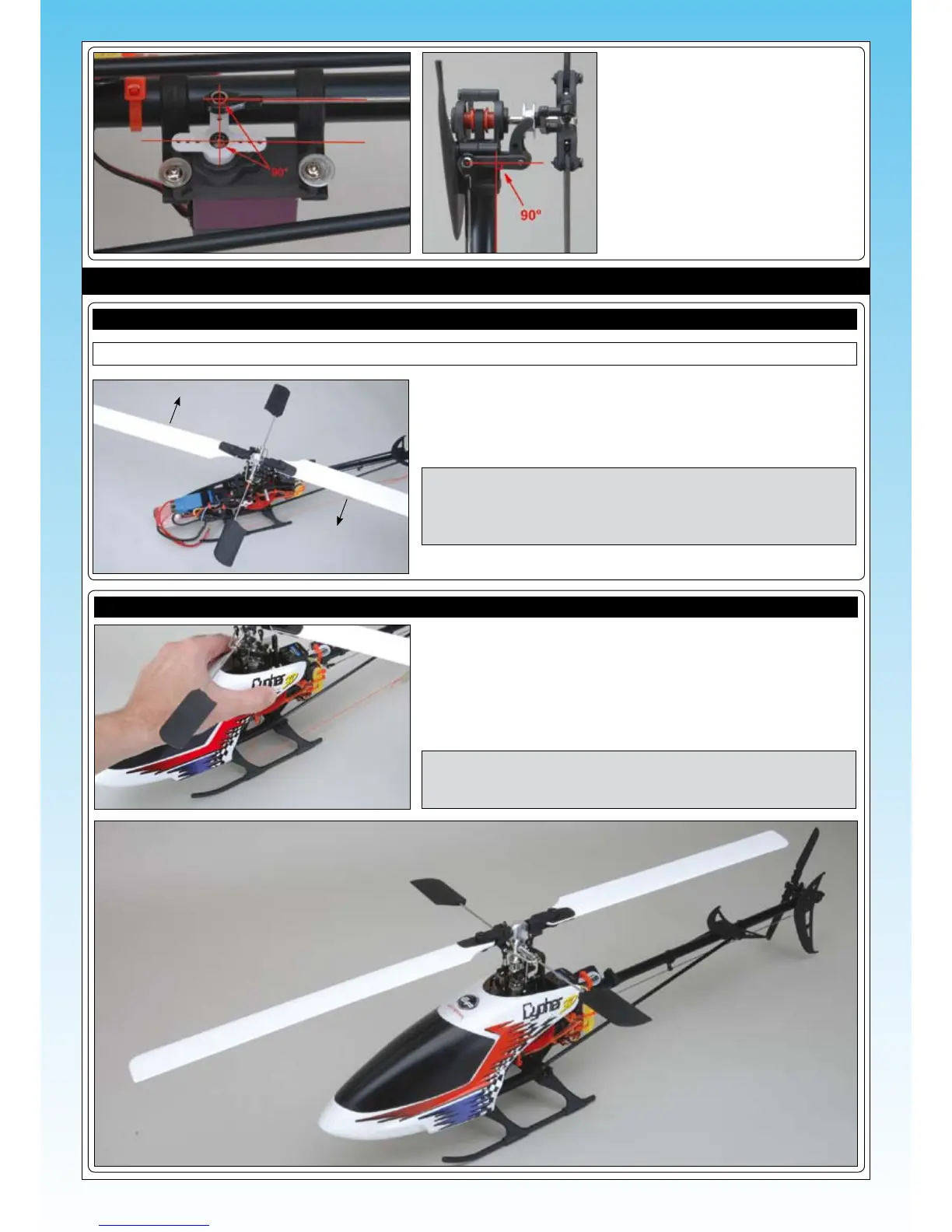

❑ With the tail rotor servo and servo horn
centred, adjust the ball-end so that the
tail rotor pivot arm is aligned 90º to the
tail boom.
INSTALLING THE MAIN ROTOR BLADES AND BODY
❑ Install the main rotor blades, making sure that the rounded leading edge
of both blades is facing the same direction as the rounded leading edge
of the paddles.
IMPORTANT The rotor blades are balanced from the factory. No balancing is required.
INSTALLING THE MAIN ROTOR BLADES
IMPORTANT Don't overtighten the socket-cap screws and lock nuts.
Tighten them, then back them off about 1/4 - 1/2 of a
turn to ensure that the blades are tight, but not binding.
They must be able to move slightly.
INSTALLING THE BODY
❑ Slide the body over the front of the main frames.
❑ Hook the lower edge over the undercarriage then spread the rear of the
body over the two aluminium body posts. Now push the pre-drilled hole
in each side of the body over the pin on the body post on each side of
the main frame.
IMPORTANT Double-check that no part of the body interferes with the
main gear or the swashplate assembly. If the t is too
close, trim the body slightly using a pair of scissors.
