9

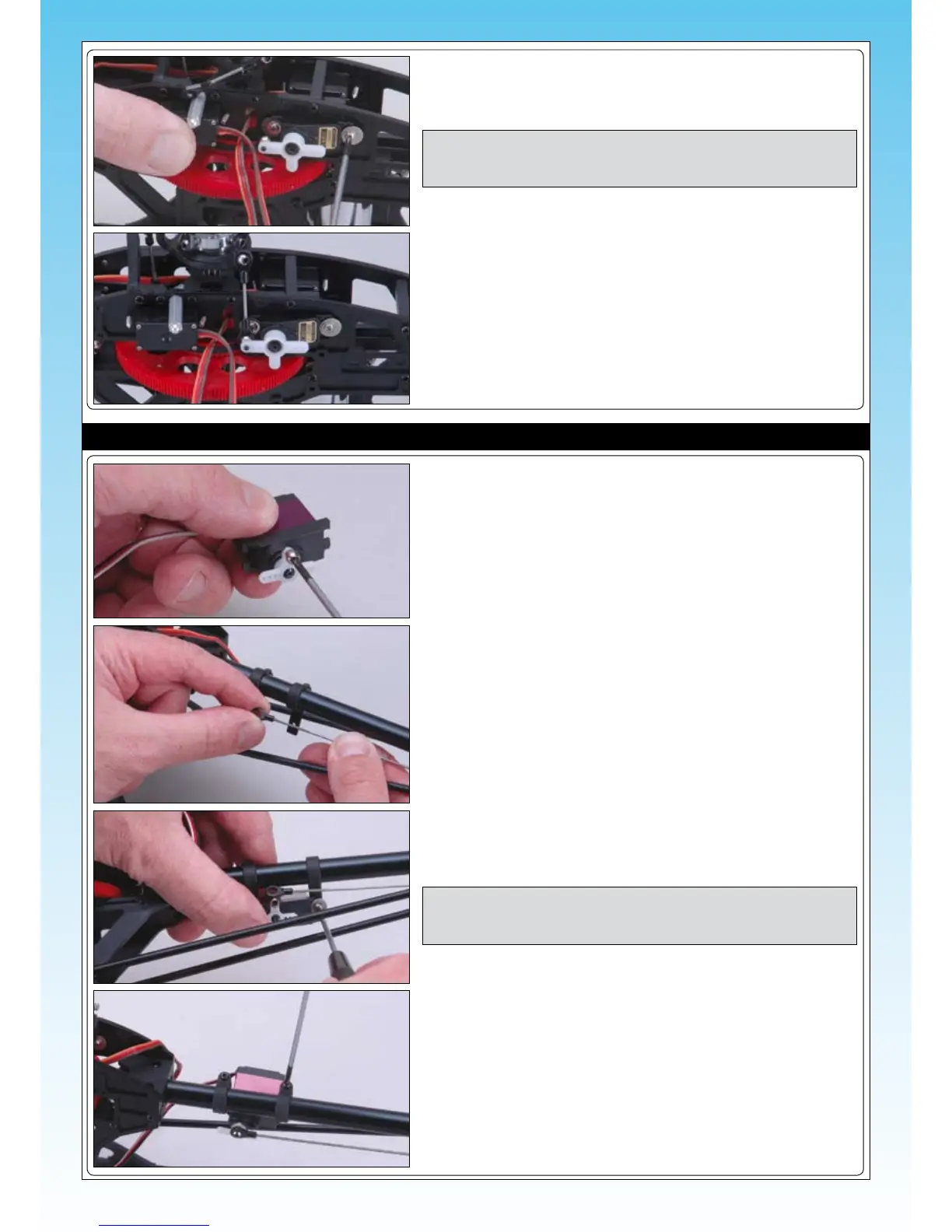

❑ Screw the servo into its mount using the screws supplied with the servo.
Do not use rubber mounting grommets.
❑ The ball-link from the right-hand side of the swashplate can now be
connected to the mounted ball on the right cyclic servo.
❑ Prepare the tail servo horn by removing one of the arms as shown.
❑ Attach a mounted ball on the top of the servo horn 10mm out from the
centre.
❑ Screw the tail servo into its mount using the screws supplied with the
servo. Do not use rubber mounting grommets.
❑ Connect the tail linkage’s ball link to the servo.
❑ Ensure that the pushrod is as straight as possible though the boom
mounted guides. Rotate the servo mount as necessary to achieve this,
then re-tighten the two retaining screws.
❑ Locate a ball end and screw it on to the pre-tted tail pushrod.
INSTALLING THE TAIL SERVO
NOTE If necessary, slide a larger washer over each of the mounting
screws so that they retain the servo effectively with no risk of
them pulling through the mounting lugs.
NOTE If necessary, slide a larger washer over each of the mounting
screws so that they retain the servo effectively with no risk of
them pulling through the mounting lugs.
