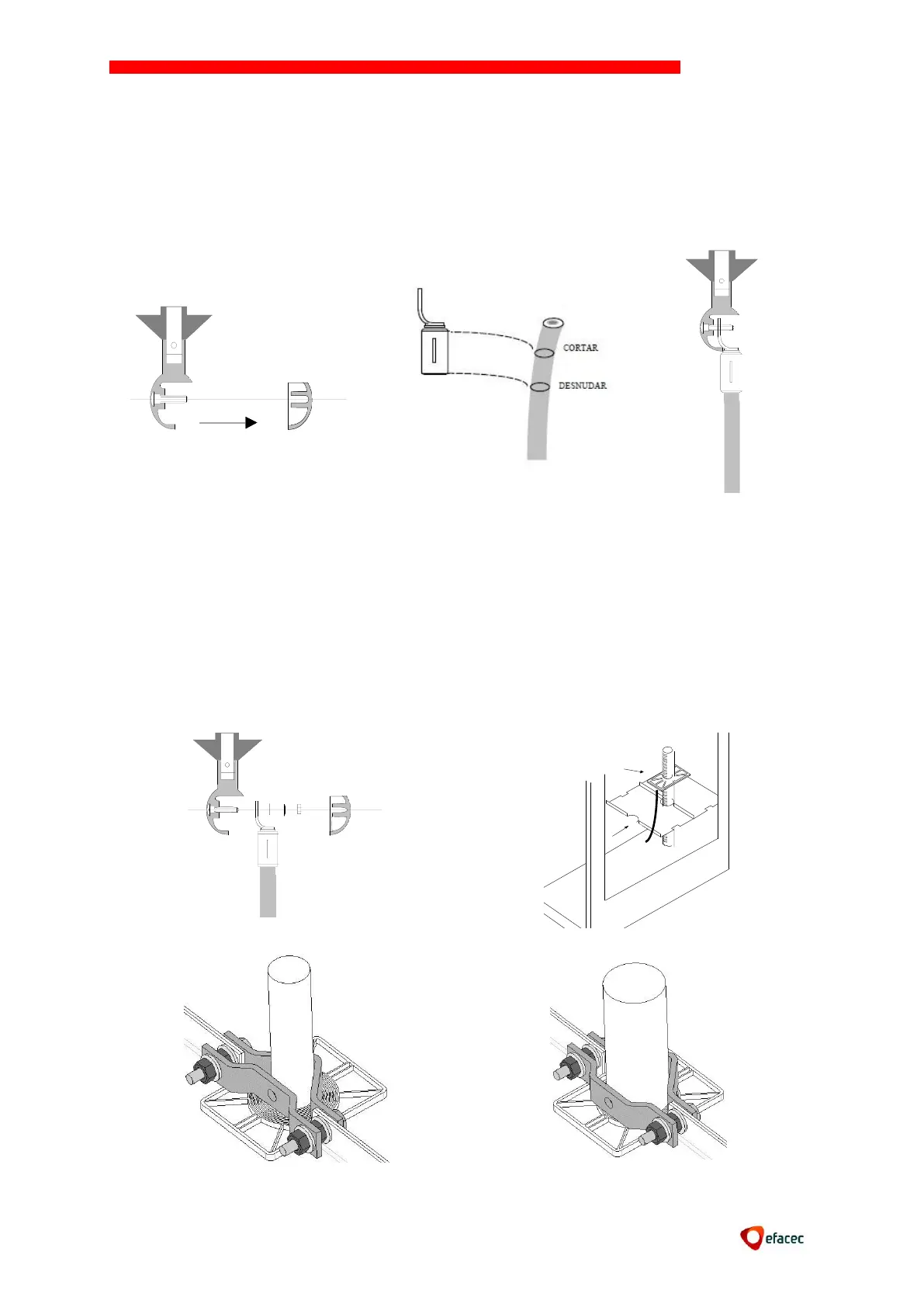

 Access the current switch screw where the terminal is fixed to the cable (on the
panels IS and CD it is necessary to remove the deflector);

Place the cables at terminal height, starting by the furthest phase;

Mark the terminal lower limit on the cables;

Pull the cables outside and execute the ends following the cable manufacturer's
instruction;
 Starting from the farther phase, locate the current terminal and fasten the screw
with the nut and washer - tightening torque 4,5 daNm (and,
replacing the deflector in the IS and CIS);
 Assemble the second element of the bottom plate, taking care to leave the cable
earth plait above the plate.
 Cut the cable bushing according with the cable outside diameter and insert it down
the cable to the bottom plate.
 Adapt the tightening clamps and immobilise the nuts (wrench 13), being careful not
to overtorque the cable.
