NORMAFIX

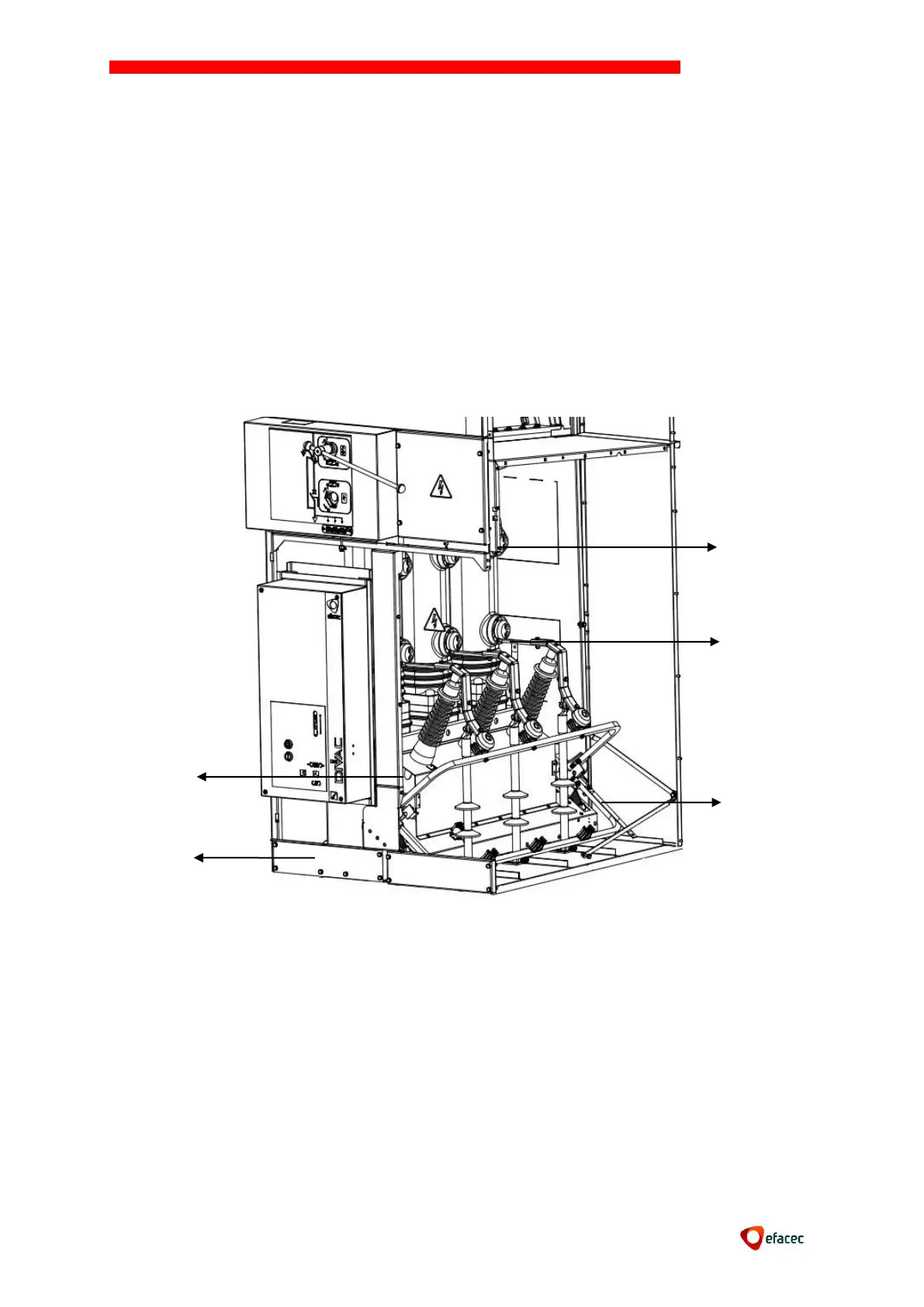

12.3 Removing the automatic switch disconnector of the cubicle
To access the cable compartment it is necessary: to open the breaker, then open the
isolator, and finally close the earthing switch.
Open the cable compartment access panel
Remove the front crossbar (2 screws, wrench 13)
Disconnect the earth braid of circuit breaker (1 screw, wrench 13)
Disconnect the superior and inferior pole connections (12 screws, wrench 13)
Disconnect LV Cabling (Disconnect the low voltage connector and cabling that are
connected to terminals)
Remove the circuit breaker support on the inside of the cubicle
The Circuit breaker is now ready to be removed from the low voltage cabling (with
low voltage connector)
