NORMAFIX
4
Panels dimensions of 36 kV
Panel type
Width (mm)
Height** (mm)
Depth* (mm)
Weight (kg)
IS
600
2010 (+400)
1155 (+110)
275
CIS
600
2010 (+400)
1155 (+110)
300
DC
1200
2010 (+400)
1155 (+110)
900
CD
600
2010 (+400)
1155 (+110)
245
M
1200
2010 (+400)
1155 (+30)
470
SBM
1200
2010 (+400)
1155 (+110)
560
TT
600
2010 (+400)
1155 (+110)
420
DB
1200
2010 (+400)
1155 (+110)
1000
* Depth of 1155 mm for the standard cubicle, adding 110 mm for the operating mechanism.
** Height of 2010 mm for the standard cubicle, adding 400 mm for the top compartment.

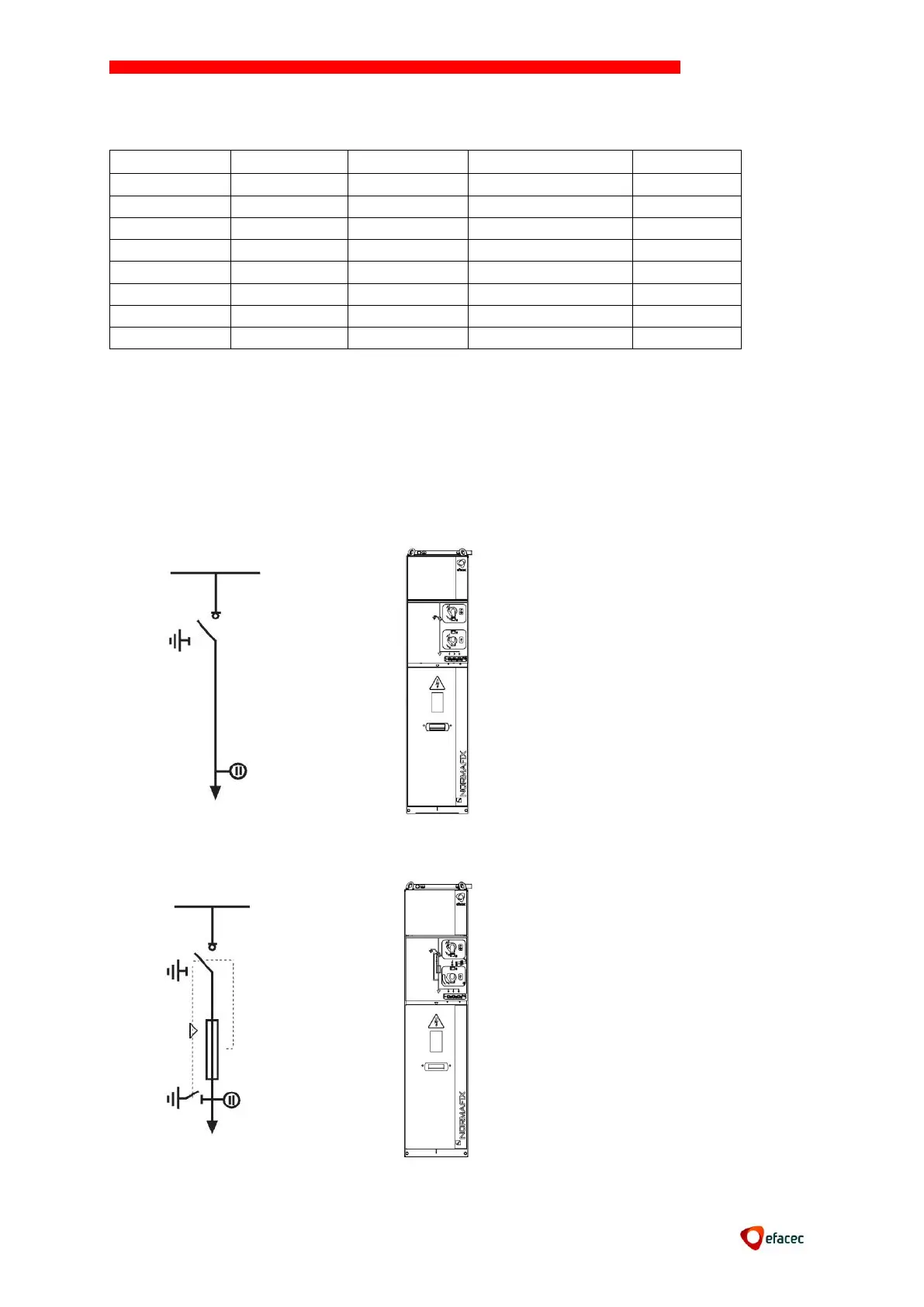

2. MODULAR UNITS
2.1 IS Cubicle
Switch Disconnector
Cubicle (IS)
Cubicle for incoming/outgoing
cable equipped with switch
disconnector ISF (with
operation mechanism CI1).
2.2 CIS Cubicle
Transformer Protection
Cubicle (CIS)
Cubicle for transformer
protection by fuses, equipped
with switch disconnector ISF
(with operation mechanism
CI2).
