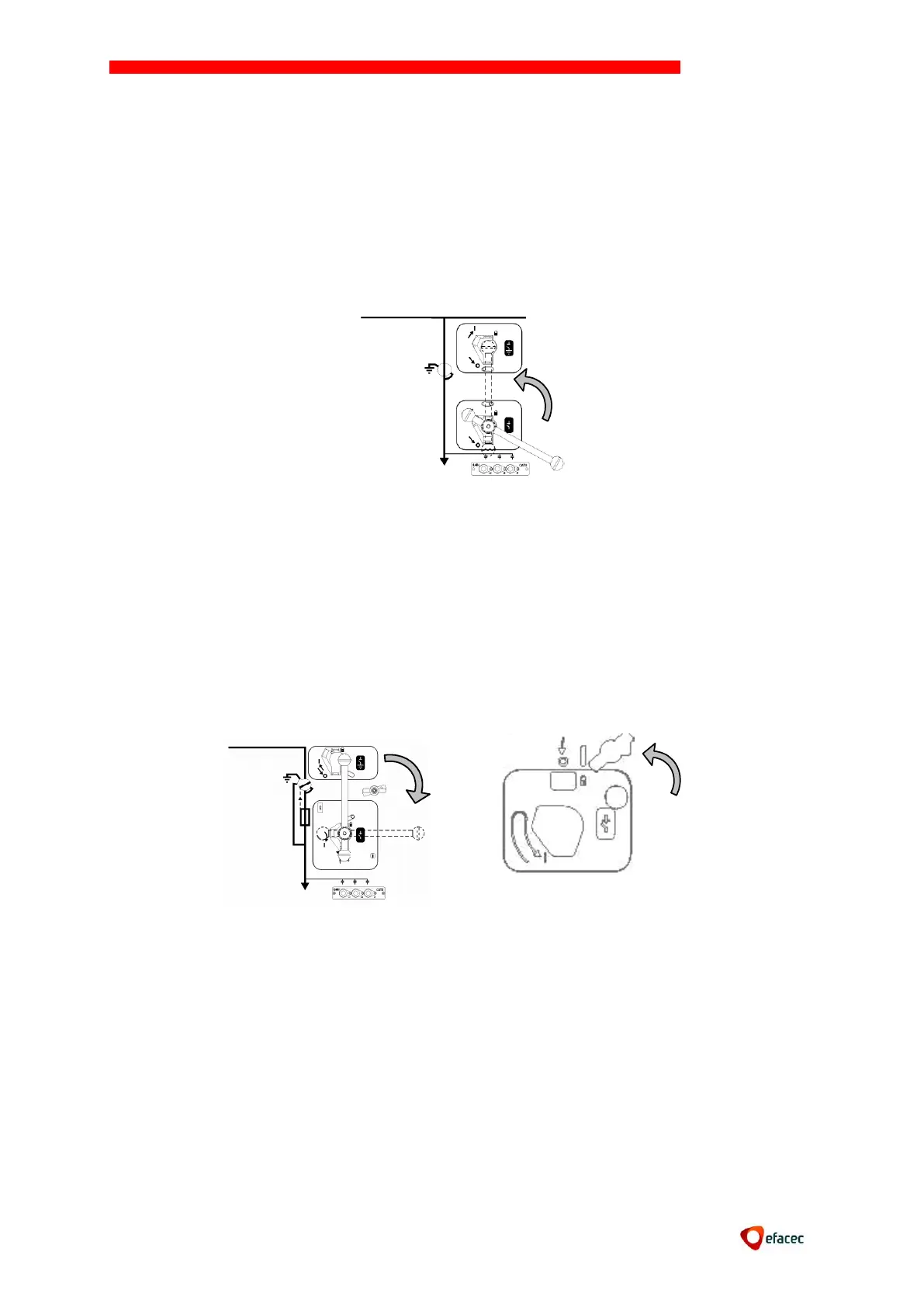

10.5. Switch opening operation (CI1 or CS1)

 This maneuver is only possible if the switch is in the closed position;

 Insert the lever into the slot of the Switch maneuver;

 Operate the lever counter clockwise to the “open” position – the switch opens up

shaply;

 The earth switch mechanism is then cleared and can be closed.

10.6. Switch closing operation and recharge for opening (CI2 - transformer protection

function)

 This maneuver possible only if the earth switch is in the open position;

 Insert the lever into the slot fo the Switch maneuver;

 Operate the lever clockwise until the final position;

 The Switch closes and the lever remains captive.

Attention, essential maneuver following the closure of the ISF:

Operate imperatively the handle, clockwise, in order to recharge the spring. After

completing this action the handle may be removed and the Switch is now ready to be

opened.
