3. OVERVIEW OF MODULAR UNITS

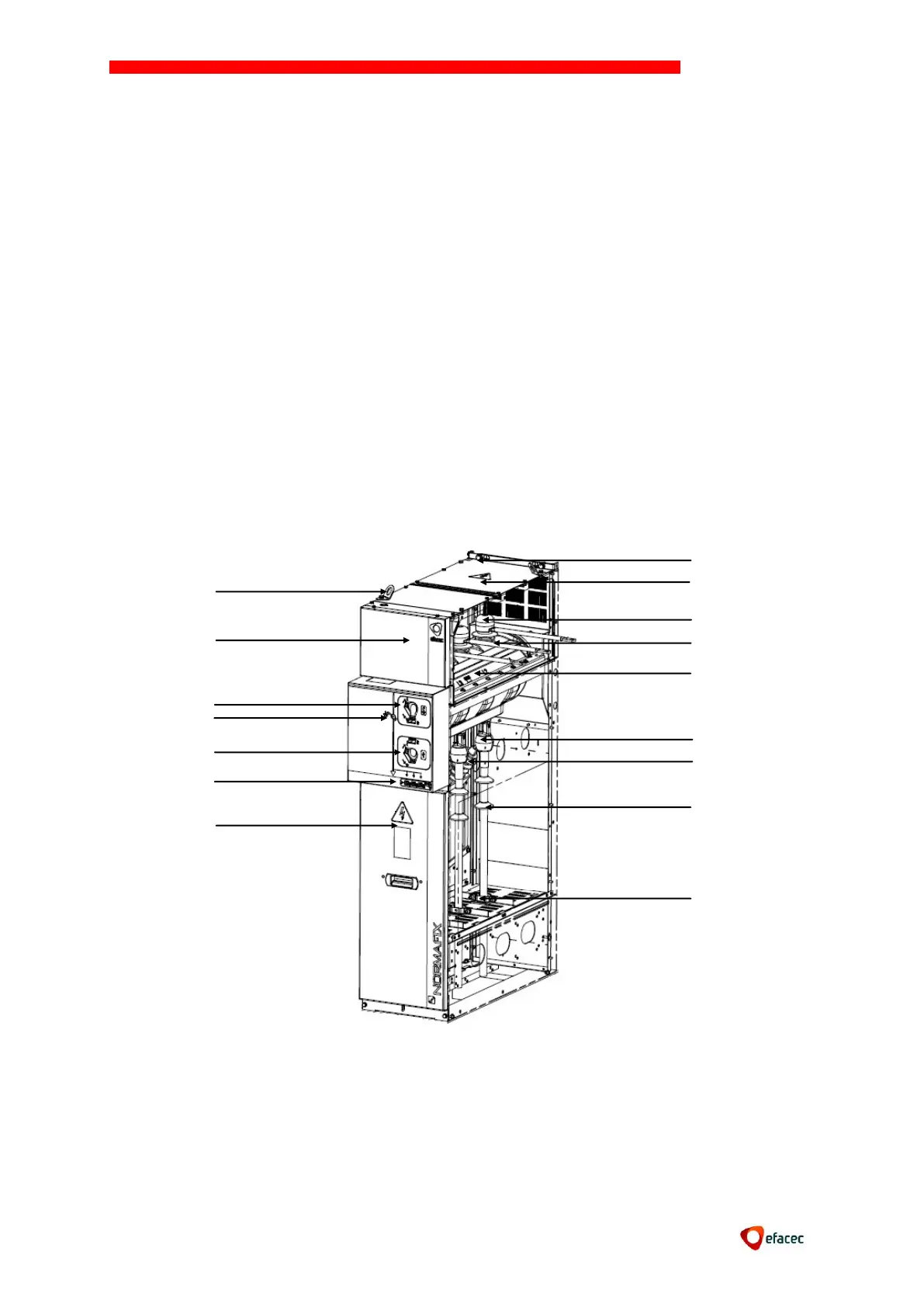

Cubicle IS
1- Accessories for lifting the cubicle
2- Low voltage compartment
3- Earth switch operating mechanism
4- Mechanical synoptic state of the switch disconnector
5- Switch disconnector operating mechanism
6- Live cables signalling neon lamps
7- Cable compartment access door
8- Earth main bar
9- Busbar access panel
10- Busbar deflector Cover
11- Busbar
12- ISF Switch Disconnector
13-
Die for cable connection MT
14- Capacitive insulator of support
15- MV Cables
16- Tightening of cables
