NORMAFIX

12.4 Removing cover mechanism

All the mechanisms replacement operations should be carried out by the EFACEC´s After

Sales Support Team.

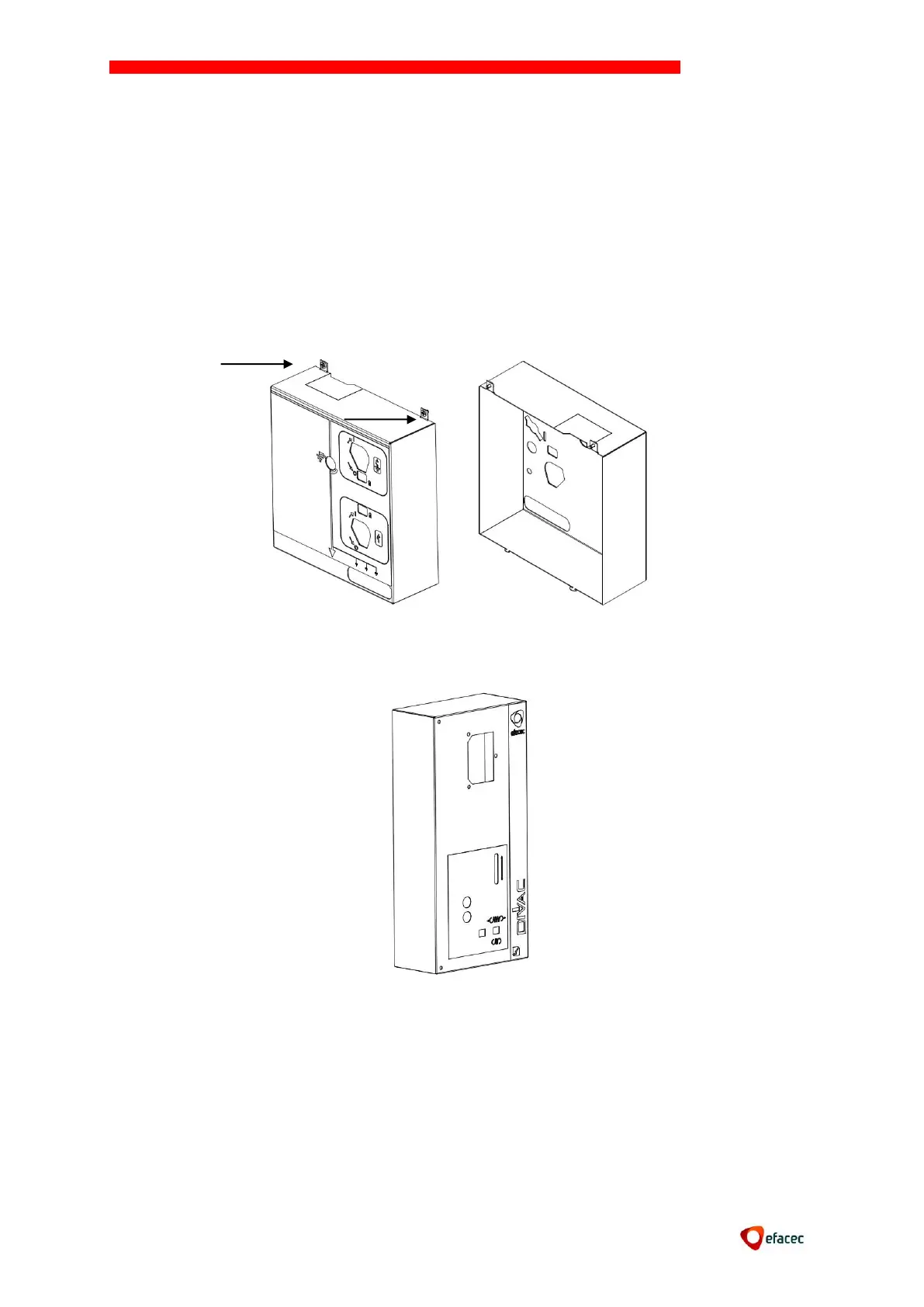

To access the operating switch disconnector or earth switch it is necessary to remove its

cover.

 Remove the Low Voltage compartment panel (to have access to the screws and the

cover)

 Remove the 2 M6 screws

 Undock cover

To access to the operating circuit-breaker it is necessary to remove its cover.

 Remove the 2 screws

 Undock cover

13. SPARE PARTS

Following are the recommended spare parts:

 Lamps for voltage indicator

 Fuses (if applicable)

 Opening coil (if applicable)
