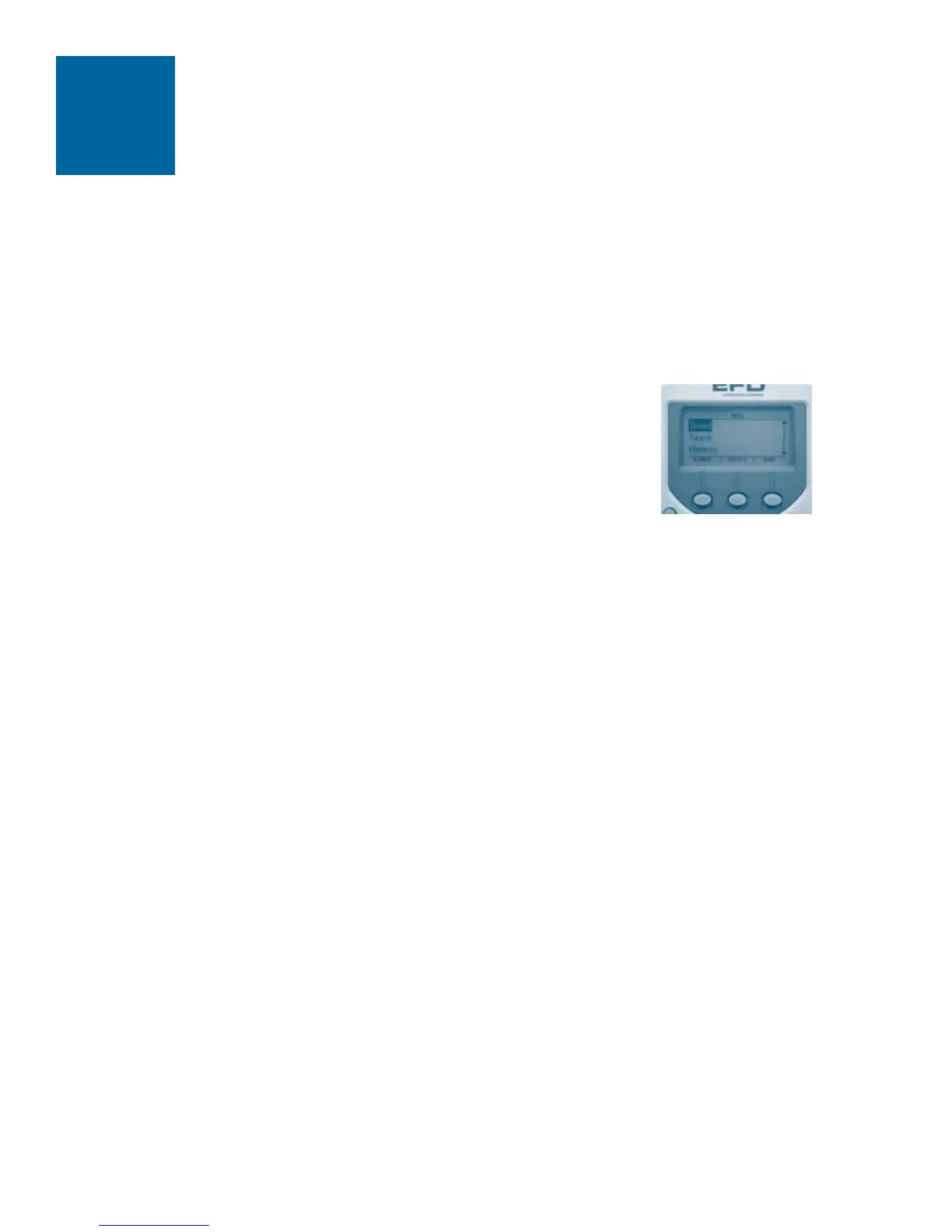

Features &
Controls:
Front Panel
10
Power
Press the power button to turn the unit on. An EFD logo will briefly appear before the Home screen
displays. The Ultra 2400 will go into sleep mode when it’s inactive for more than 90 minutes. Simply
press any button or the foot pedal to reactivate the screen.
Menu
You can access the menu screen by pressing MENU. From here press the up/down and left/right
arrows to select from a variety of screens, including:
See page 20 for details on various Menu functions.
Shot Count
The shot count is displayed in the top center section of the display screen. It displays the number of
deposits that have been dispensed. Follow these steps to reset the shot count.
• Press MENU.
• Press the down arrow to highlight CLEAR COUNT.
• Press SELECT. This resets the shot count to 0 and automatically returns you to the Home screen.
Timed Mode
In TIMED mode, the Ultra 2400 will dispense a single deposit each time you press the foot pedal or
finger switch. Deposit size is based on dispense time and pressure settings shown on the display.
Steady Mode
In STEADY mode you can dispense for as long as you press the foot pedal or finger switch. From
TIMED mode, press STEADY. This toggles the display so that the top left corner is now selected for
STEADY mode. See Initial Test Procedures, page 16, for more details on STEADY mode.
Teach Mode
In TEACH mode you can “teach” the deposit based on physical size. Begin in the Home screen for
TIMED mode. Press TEACH. This toggles the display so that the top left corner is now selected for
TEACH mode. See Initial Test Procedures, page 16, for more details on TEACH mode.
Output Air Port
The Ultra 2400 features two output air ports. You can connect the Ultra adapter assembly to the port
on the front panel or the back panel, whichever is most convenient.
TIMED TEACH MEMORY
CLEAR COUNT UNITS OF PRESSURE UNITS OF VACUUM
SECURITY LANGUAGE SAVE JOB
SET CLOCK INFO
To Next Page
