EFD Ultra 2415 User Manual

4
3
15
11
12
16
2
5
17
13
9
10
6
8
7
22
24
26
23
18
27
19
25
22
23
20
28

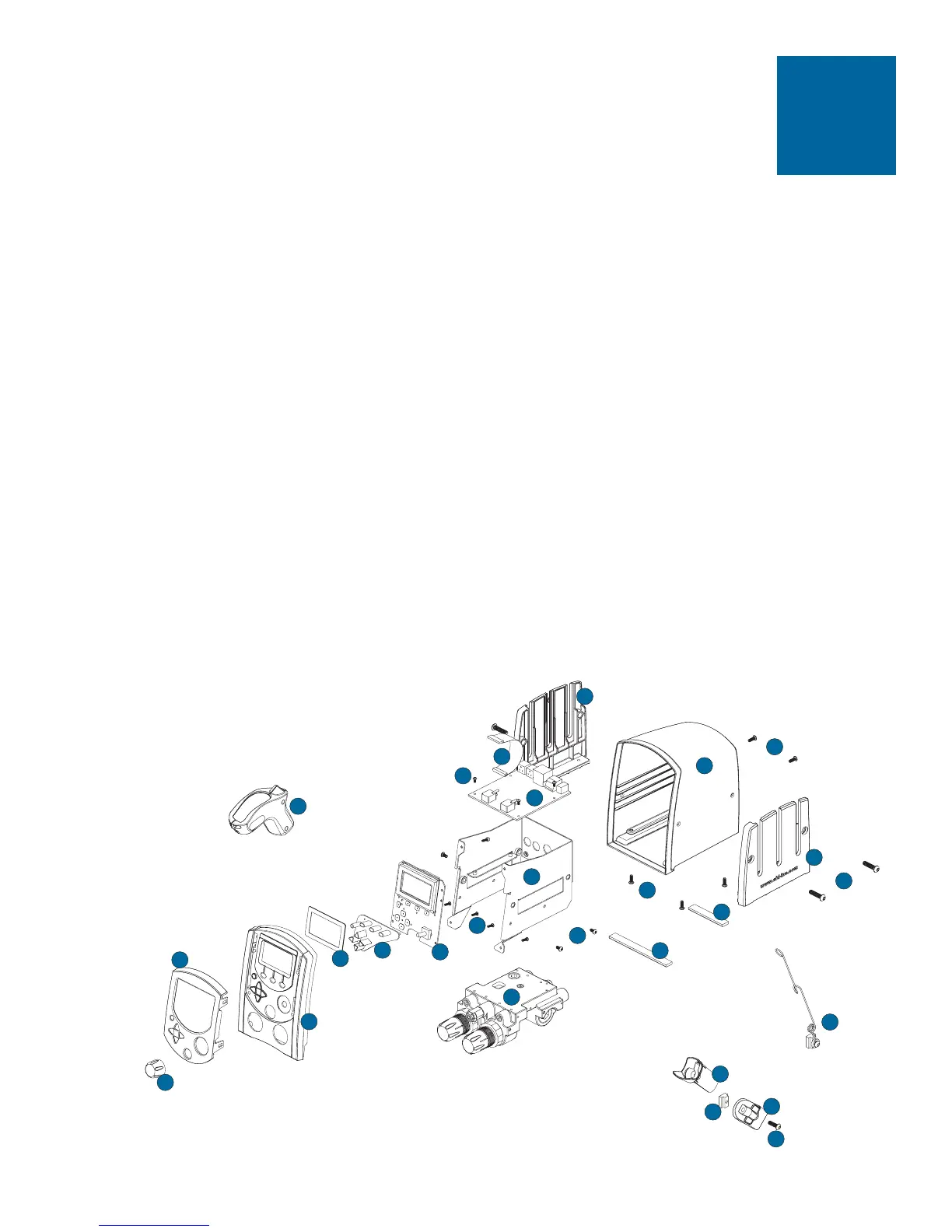

1. 2024-6MM ...........Tubing - 6 mm OD urethane,
blue*
2. 2401-100.............Air manifold 100 psi (6.9 bar)
2401-15...............Air manifold 15 psi (1.03 bar)
2401-05...............Air manifold 5 psi (0.34 bar)
3. 2406 ....................Face plate
4. 2407 ....................Rotary dial
5. 2408-1.................Chassis
6. 2409 ....................Cover
7. 2410 ....................Work panel - left
8. 2411-1.................Work panel - right
9. 2412-1.................Rubber strip - front
10. 2413-1.................Rubber strip - rear
11. 2417 ....................LCD protective lens
12. 2418 ....................Key pad
13. 2420 ....................Communication cable
14. 2422 ....................Circular foot pedal*
15. 2423 ....................Front cover
16. 2425 ....................Display board assembly
17. 2426 ....................I/O board assembly
18. 2427......................Barrel holder sleeve
19. 2428......................Barrel holder
20. 2441......................Barrel hand grip
21. 2447......................20w universal power
supply*
22. HM3X6MM-BH........Screw – M3 x 6 mm,
buttonhead
23. HM4X12MM-BH......Screw – M4 x 12 mm,
buttonhead
24. HM4X8MM-BH........Screw – M4 x 8 mm,
buttonhead
25. HM6x20MM-BH ......Screw – M6 x 20 mm,
buttonhead
26. HM6X25MM-BH......Screw – M6 x 25 mm,
buttonhead
27. HM6X8MM-TNUT....M6 x 8 mm T-Slot nut
28. 2439......................Adapter hose holder
2452 .....................Washer
29. 8135-1...................Fitting – 1/4-inch NPT
x 6 mm*
Schematic
23
* Not shown
