Features &
Controls:

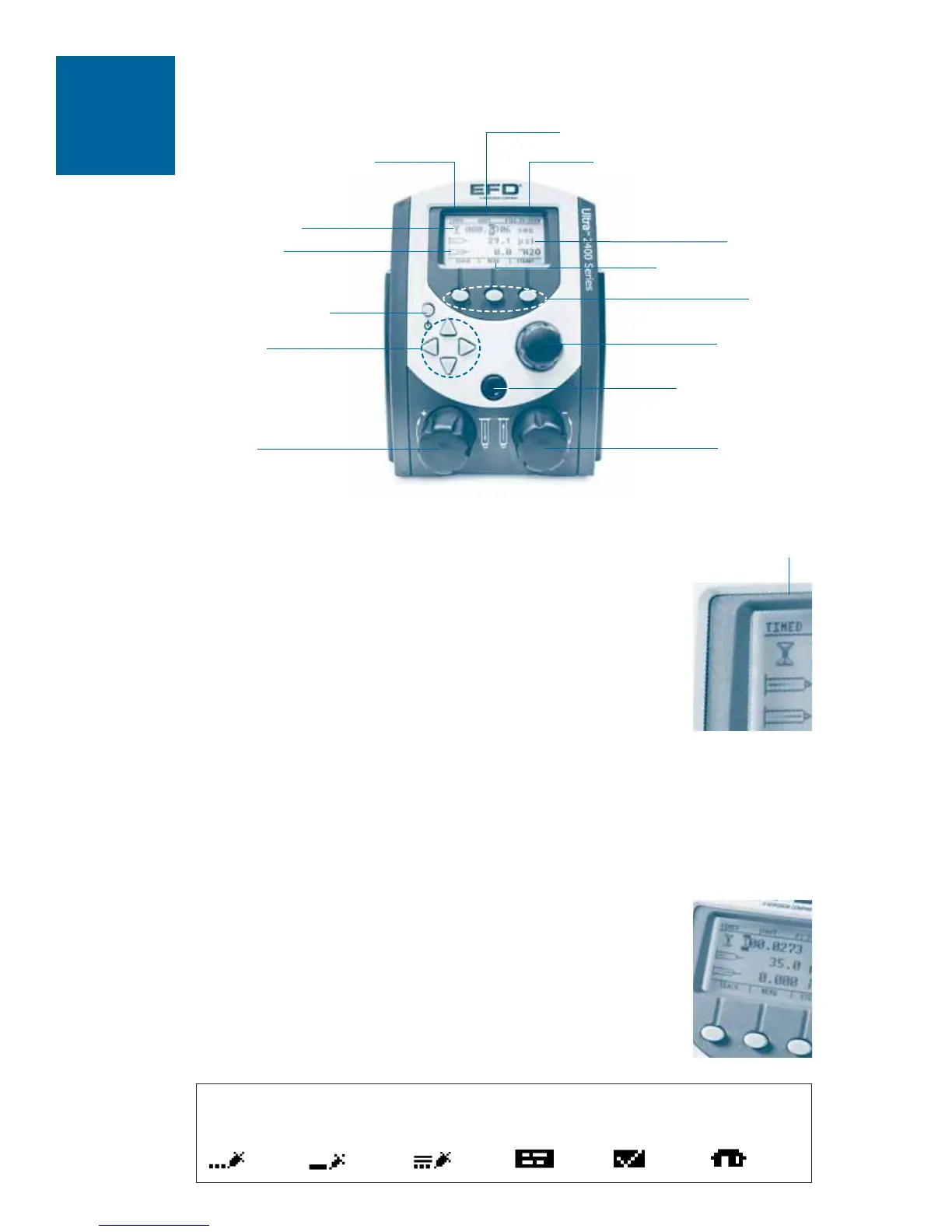

Front Panel
8
Dispense Mode
When powered for the first time, the Ultra 2400 Home screen displays in
TIMED mode. Otherwise, it displays in the mode last used.
You can verify what mode you’re in by checking the top left corner of the
display screen. It will be TIMED, TEACH, STEADY or MEMORY.
• You can return to TIMED mode from TEACH or STEADY by pressing
TIMED in the bottom right corner of the display.
• You can return to TIMED mode from MEMORY by pressing MENU, then
selecting TIMED.
See the appropriate section below for details on each dispense mode.
Dispense Time
Dispense time, shown with an hourglass icon, displays from 000.0001 to 999.9999 seconds.
Follow these steps to set the dispense time.
• Begin in TIMED mode.
• Press the left/right arrows to highlight the first number you want to change.
• Press the up/down arrows to set the time. Or if you prefer, you can also
use the timer dial (top right knob) to set the time.
• Repeat as needed to adjust the other numbers in the dispense time row.
Timed
Mode
display navigation
dispense time
multi-function controls
pressure regulator
vacuum regulator
power
data/time control
output air
dispense pressure
cycle counter
time of day
mode indicator
vacuum pullback
menu
See the Ultra 2400 Icon Guide, included with your dispensing system, if you are
working in Chinese, Japanese, or Korean. Sample icons:
(Timed) (Steady) (Teach) (Menu) (Select) (Home)
