Efergy ELITE User Manual

INSTALLATION NOTES
TECHNICAL NOTES FOR ELECTRICIAN
20 19

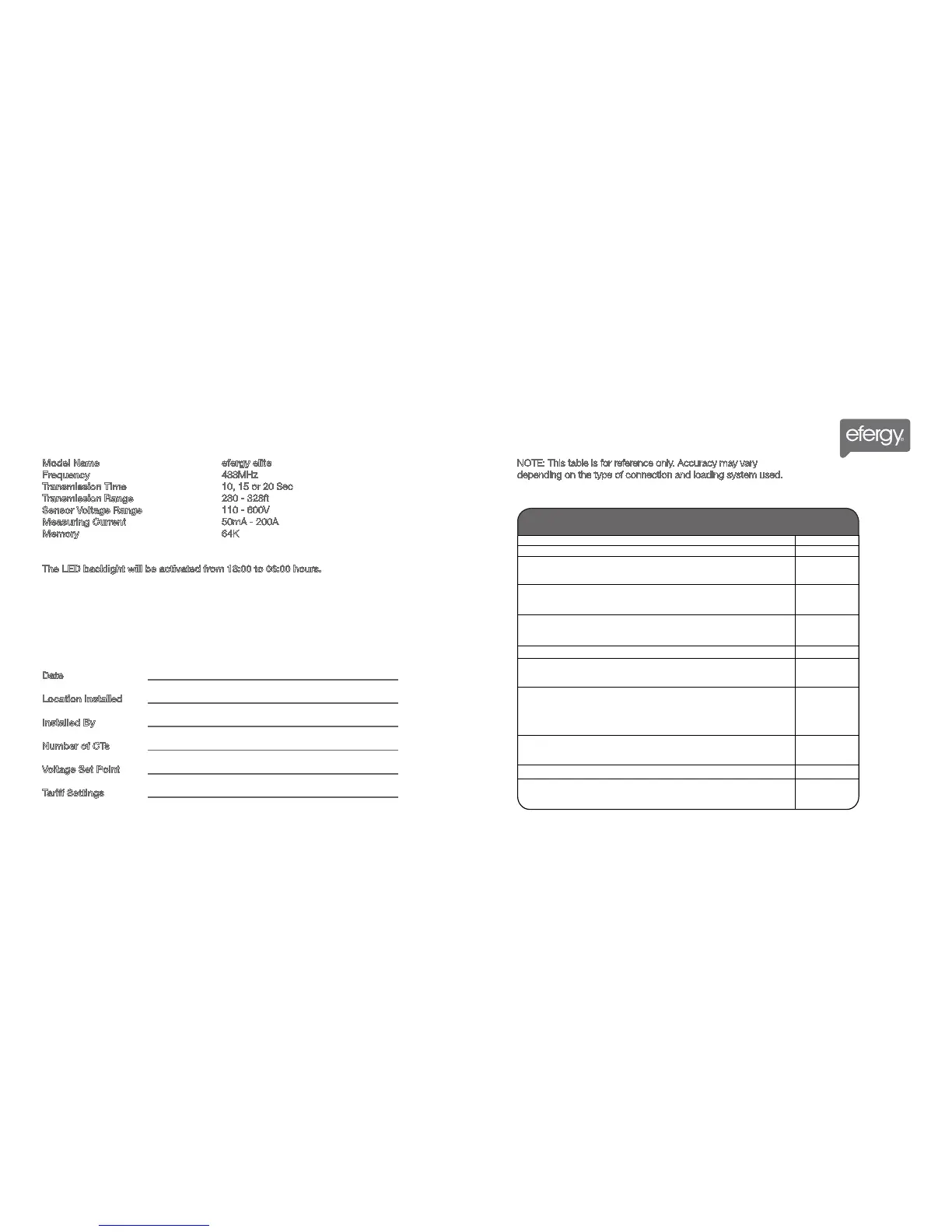

TECHNICAL INFORMATION
Model Name
Frequency
Transmission Time
Transmission Range
Sensor Voltage Range
Measuring Current
Memory
The LED backlight will be activated from 18:00 to 06:00 hours.
efergy elite
433MHz
10, 15 or 20 Sec
230 - 328ft
110 - 600V
50mA - 200A
64K
NOTE: This table is for reference only. Accuracy may vary
depending on the type of connection and loading system used.
120V, 3 Wire, Single Phase (TYPICAL RESIDENTIAL SERVICE IN US & CANADA) 120
240V, 3 Wire, Single Phase 240
120/ 208V, 3 Wire, 2 Phases of a 3 Phase 120/208V
Three wires phase 1 live, phase 2 live, Grid 120V is live to neutral and 208 is phase 120
to phase. Assume unbalanced load. 2 CT Sensors
120/ 208V, 4 Wire, 3 Phases, Balanced Load
Three phase live, phase 2 live - Neutral, where 120V is phase to neutral and 208V 208
is phase to phase. 1 CT Sensor
120/ 208V, 4 Wire, 3 Phases, Unbalanced Load
The display does not recognize unbalanced loads in this configuration. The degree 120
of accuracy will be relative to the amount of unbalanced current. 3 CT Sensors
208V, 3 Phase Delta Balanced Load 208
277/ 480V, 4 Wire, 3 Phases, Balanced Load
Three phase live + neutral, where 277V is phase to neutral and 480V is phase to 480
phase. 1CT Sensor
277/ 480V, 4 Wire, 3 Phases, Unbalanced Load
Three phase live + neutral, where 277V is phase to neutral and 480V is phase to
phase. The display does not recognize unbalanced loads in this configuration. 277
The degree of accuracy will be relative to the amount of unbalanced current.
3 CT Sensors
230/ 400V, 4 Wire, 3 Phases, Balanced Load
Three phase live + neutral, where 230V is phase to neutral and 400V is phase to 400
phase. 1CT Sensor
347/ 575V, 3 Phase, Balanced Load. 1CT Sensor 580
347/ 575V, 3 Phase, Unbalanced Load.
The display does not recognize unbalanced loads in this configuration. The degree 350
of accuracy will be relative to the amount of unbalanced current. 3 CT Sensors
ELECTRICITY SYSTEM VOLT SETTING
Date ___________________________________________________
Location Installed ___________________________________________________
Installed By ___________________________________________________
Number of CTs ___________________________________________________
Voltage Set Point ___________________________________________________
Tariff Settings ___________________________________________________

Efergy ELITE Specifications

General

Type	Energy Monitor
Display	LCD
Transmission Frequency	433MHz
Real-Time Monitoring	Yes
Compatibility	Single Phase Systems
Communication	Wireless
Operating Temperature	0°C to 40°C
Frequency	50Hz - 60Hz
Battery Life	12 months
