Efergy ELITE User Manual

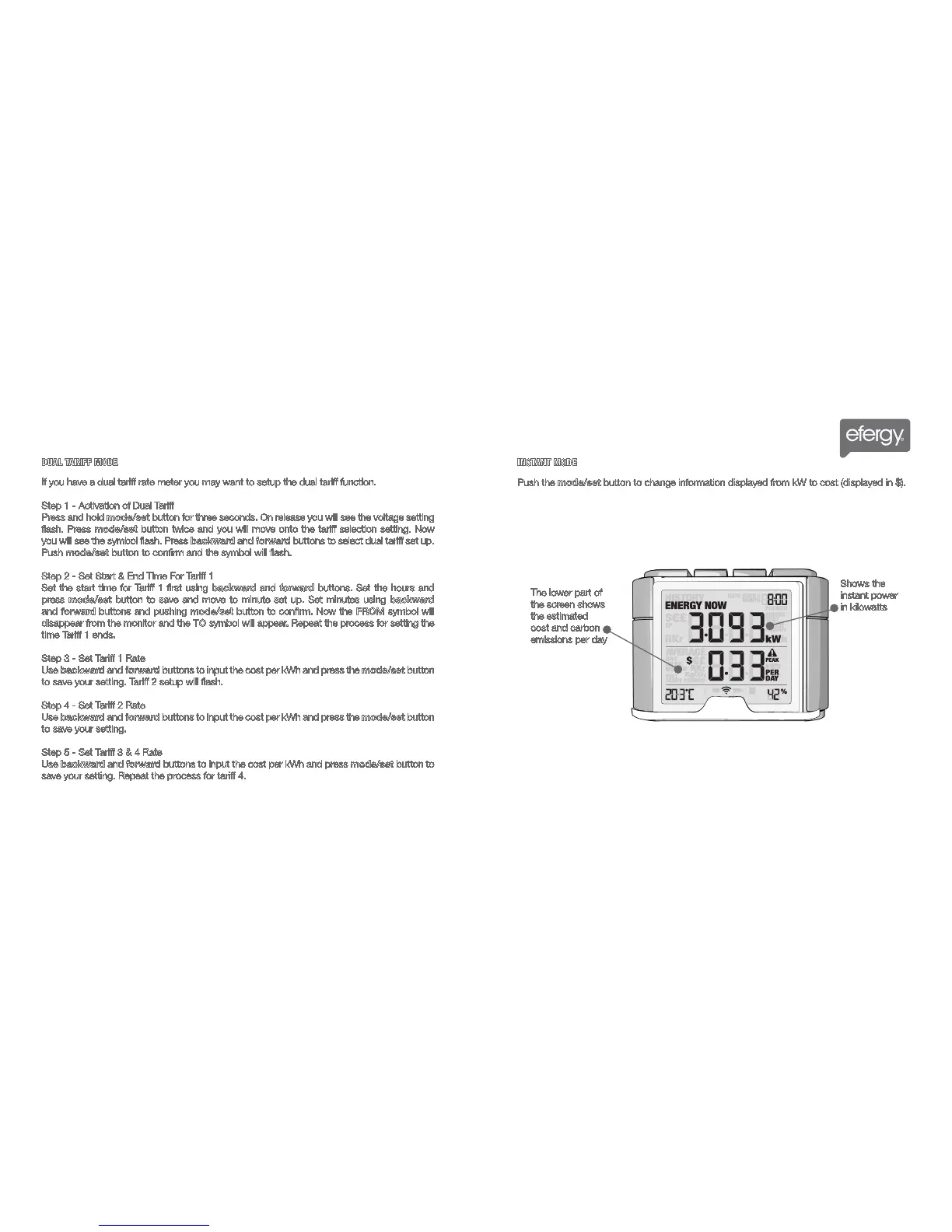

DUAL TARIFF MODE
If you have a dual tariff rate meter you may want to setup the dual tariff function.
Step 1 - Activation of Dual Tariff
Press and hold mode/set button for three seconds. On release you will see the voltage setting
flash. Press mode/set button twice and you will move onto the tariff selection setting. Now
you will see the symbol flash. Press backward and forward buttons to select dual tariff set up.
Push mode/set button to confirm and the symbol will flash.
Step 2 - Set Start & End Time For Tariff 1
Set the start time for Tariff 1 first using backward and forward buttons. Set the hours and
press mode/set button to save and move to minute set up. Set minutes using backward
and forward buttons and pushing mode/set button to confirm. Now the FROM symbol will
disappear from the monitor and the TO symbol will appear. Repeat the process for setting the
time Tariff 1 ends.
Step 3 - Set Tariff 1 Rate
Use backward and forward buttons to input the cost per kWh and press the mode/set button
to save your setting. Tariff 2 setup will flash.
Step 4 - Set Tariff 2 Rate
Use backward and forward buttons to input the cost per kWh and press the mode/set button
to save your setting.
Step 5 - Set Tariff 3 & 4 Rate
Use backward and forward buttons to input the cost per kWh and press mode/set button to
save your setting. Repeat the process for tariff 4.
15 16
MONITOR SETUP
The lower part of
the screen shows
the estimated
cost and carbon
emissions per day
INSTANT MODE
Push the mode/set button to change information displayed from kW to cost (displayed in $).
Shows the
instant power
in kilowatts

Efergy ELITE Specifications

General

Type	Energy Monitor
Display	LCD
Transmission Frequency	433MHz
Real-Time Monitoring	Yes
Compatibility	Single Phase Systems
Communication	Wireless
Operating Temperature	0°C to 40°C
Frequency	50Hz - 60Hz
Battery Life	12 months
