MONITOR SETUP

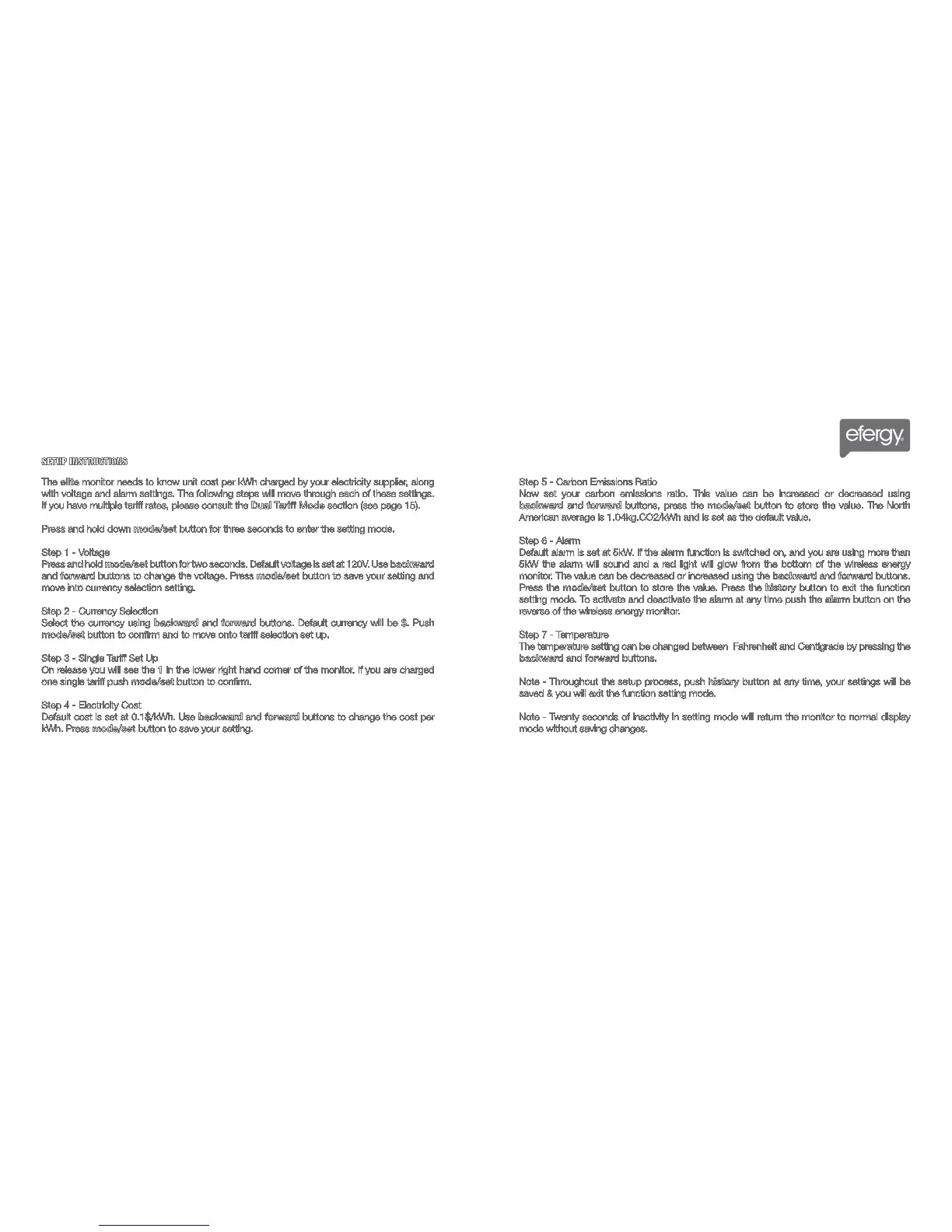

SETUP INSTRUCTIONS
The elite monitor needs to know unit cost per kWh charged by your electricity supplier, along
with voltage and alarm settings. The following steps will move through each of these settings.
If you have multiple tariff rates, please consult the Dual Tariff Mode section (see page 15).
Press and hold down mode/set button for three seconds to enter the setting mode.
Step 1 - Voltage
Press and hold mode/set button for two seconds. Default voltage is set at 120V. Use backward
and forward buttons to change the voltage. Press mode/set button to save your setting and
move into currency selection setting.
Step 2 - Currency Selection
Select the currency using backward and forward buttons. Default currency will be $. Push
mode/set button to confirm and to move onto tariff selection set up.
Step 3 - Single Tariff Set Up
On release you will see the 1 in the lower right hand corner of the monitor. If you are charged
one single tariff push mode/set button to confirm.
Step 4 - Electricity Cost
Default cost is set at 0.1$/kWh. Use backward and forward buttons to change the cost per
kWh. Press mode/set button to save your setting.
Step 5 - Carbon Emissions Ratio
Now set your carbon emissions ratio. This value can be increased or decreased using
backward and forward buttons, press the mode/set button to store the value. The North
American average is 1.04kg.CO2/kWh and is set as the default value.
Step 6 - Alarm
Default alarm is set at 5kW. If the alarm function is switched on, and you are using more than
5kW the alarm will sound and a red light will glow from the bottom of the wireless energy
monitor. The value can be decreased or increased using the backward and forward buttons.
Press the mode/set button to store the value. Press the history button to exit the function
setting mode. To activate and deactivate the alarm at any time push the alarm button on the
reverse of the wireless energy monitor.
Step 7 - Temperature
The temperature setting can be changed between Fahrenheit and Centigrade by pressing the
backward and forward buttons.
Note - Throughout the setup process, push history button at any time, your settings will be
saved & you will exit the function setting mode.
Note - Twenty seconds of inactivity in setting mode will return the monitor to normal display
mode without saving changes.
