1 String A
2 DC connection socket switched off

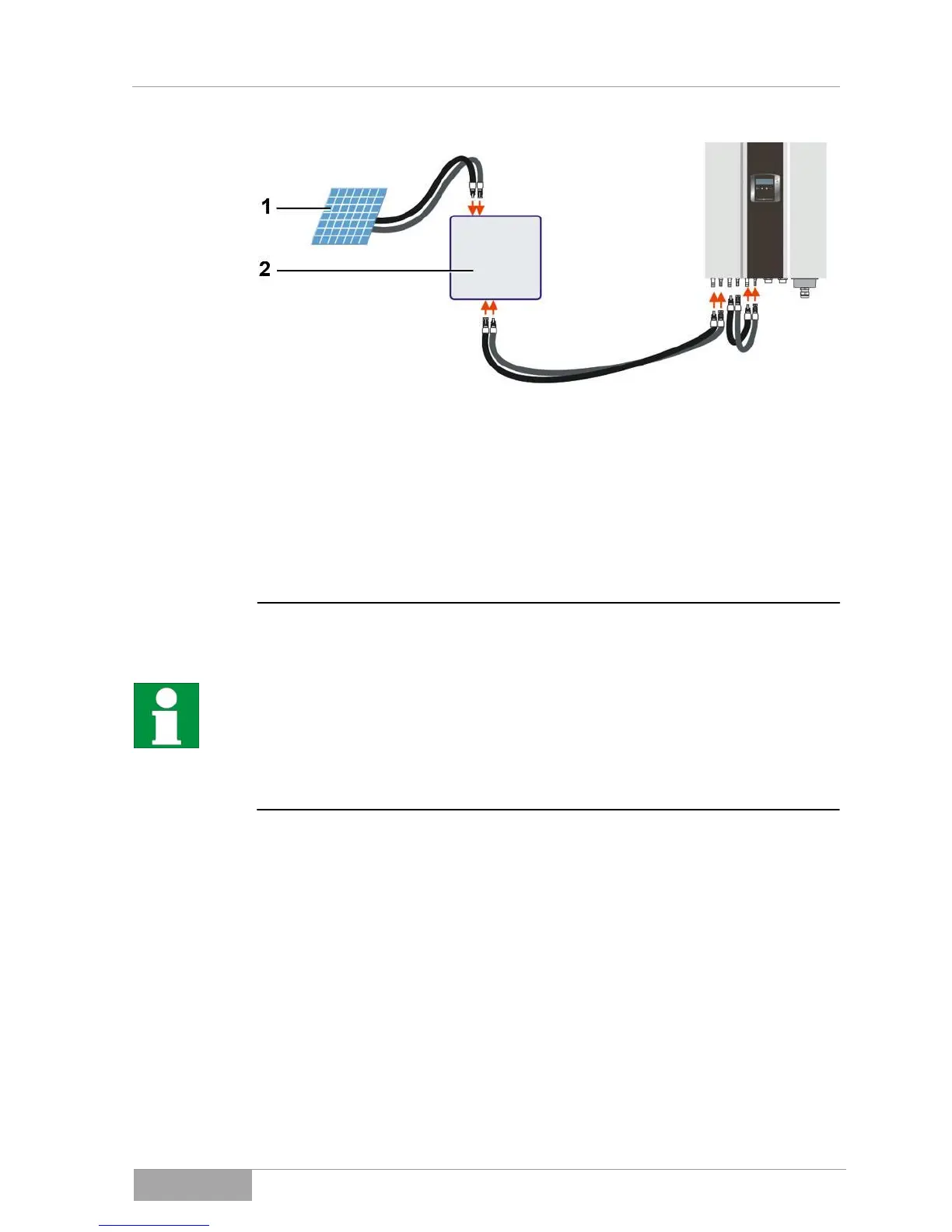

Fig. 5.2.3 - 2 ES4200 / ES5000 cabling overview in parallel operation
using 2-pin DC disconnector (all modules before the DC
disconnector cabled on one string)
In the case of wiring with one string, you must switch the operating mode in the
configuration to "parallel"; see Chapter
ê 7.2 Country settings, operating mode settings and ID settings
Please note that the ES2200 / ES3300 only have one tracker with connections
for three of the same strings (internally switched in parallel).
If you connect the strings individually, you need a corresponding DC
disconnector for several (4-pin of 6-pin) strings.
