USV ME1000/1500 Instruction Manual
6 Description of equipment – ME series
In this chapter, you will be introduced to the various elements of the equipment
and will be provided with instructions on its operation as well as all information
on equipment connections.
6.1 Display and operator control elements on the front panel

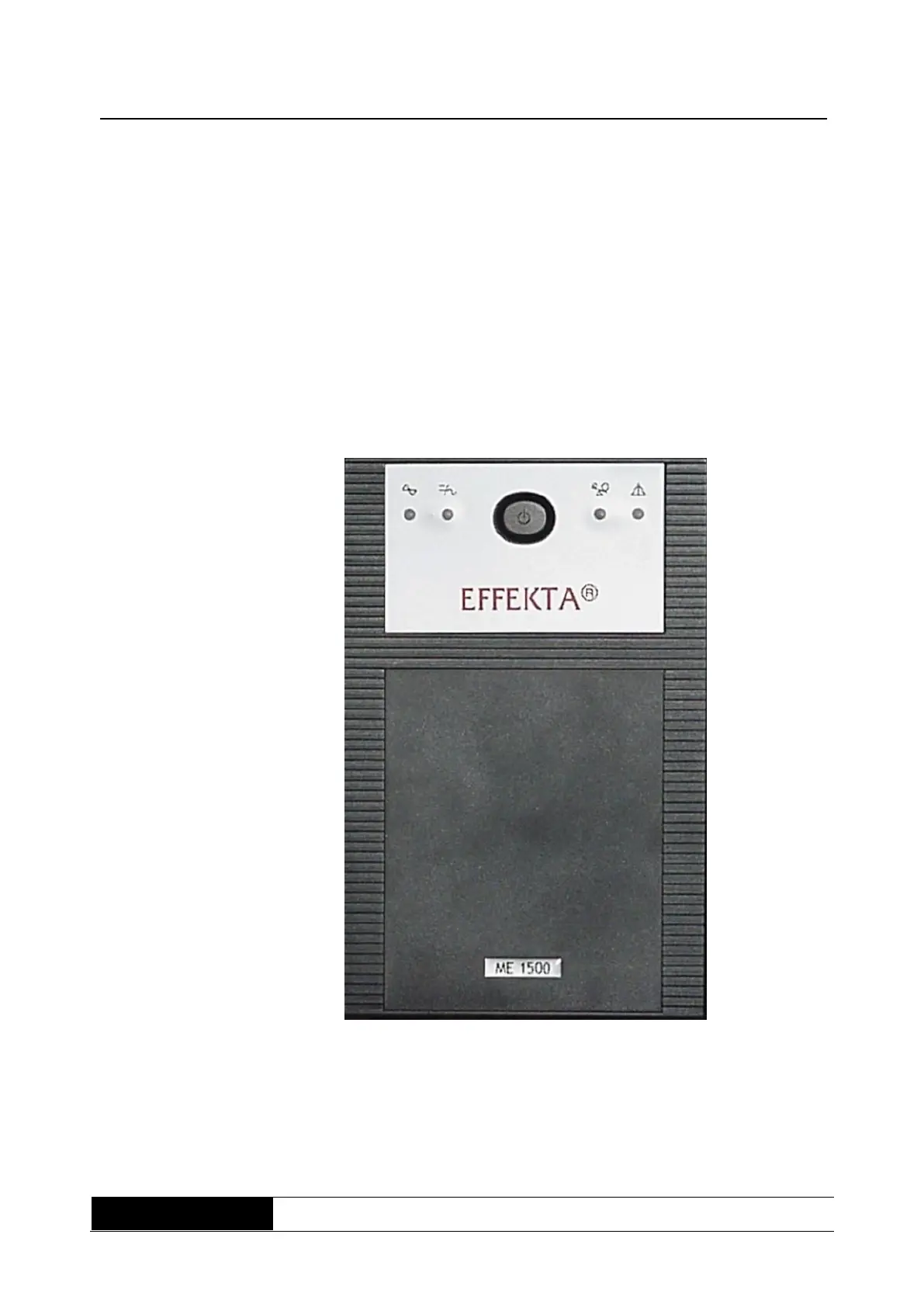

Fig. 2:
Front view
ME series
All of the operator control and display elements required for normal operation
are positioned on the front of the equipment.
