UPS MKD2000/3000 XL Manual
MKD XL Series
Page 32 of 45

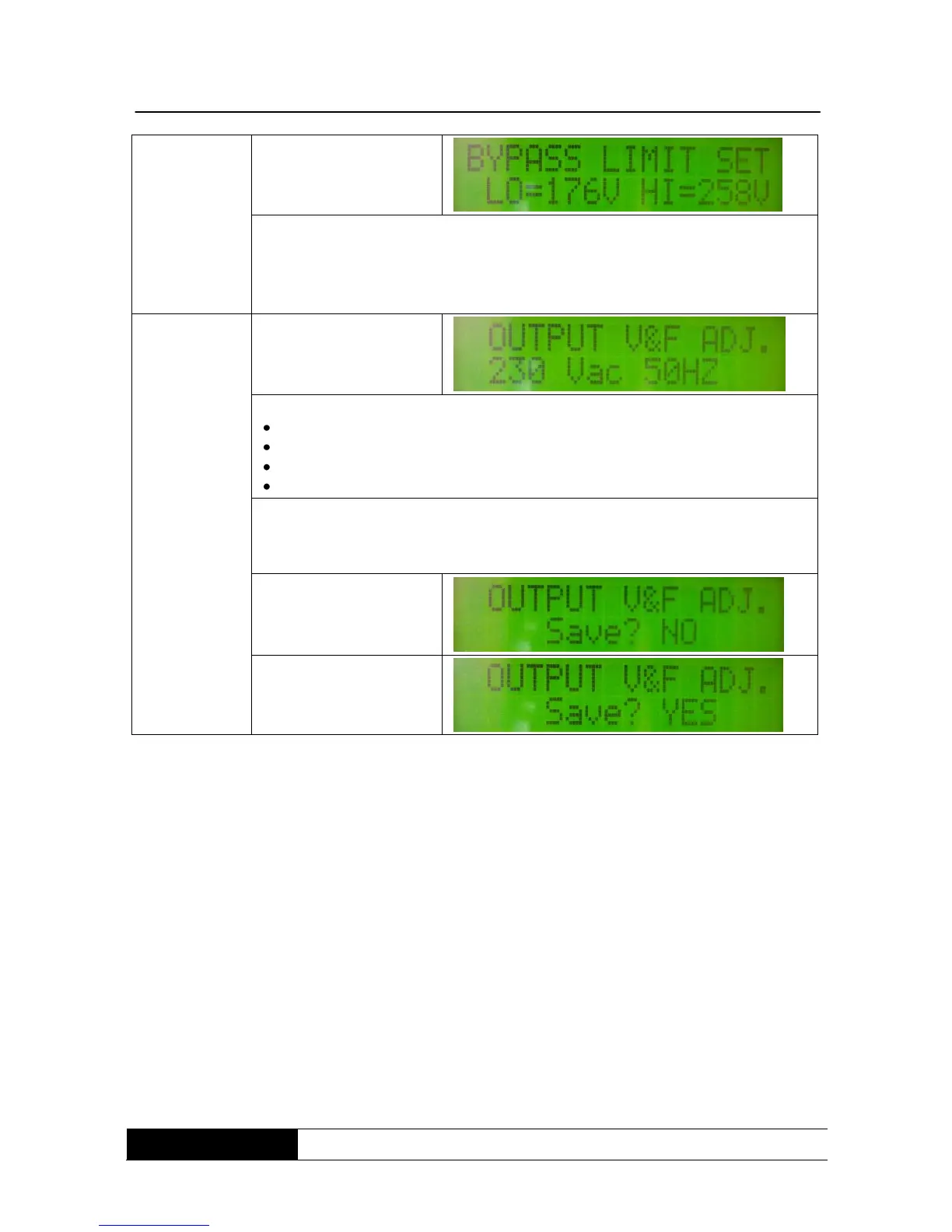

BYPASS LIMIT SET
(input voltag)
Scroll in switched-off condition, with the button (3) “Menu-down” to the
display OUTPUT V&F. The cursor can be set to Vac (output voltage) or Hz
(output frequency) by using the button (2) “Menu-option”. In switched-off
condition, output voltage or output frequency can be changed by using the
buttons (3) “Menu-down” and (4) “Menu-up”.
OUTPUT
(e.g. 230VAC; 50Hz
inactive bypass)
Output frequency can have the following settings:
50Hz  output frequency 50Hz; inactive bypass
60Hz  output frequency 50Hz; inactive bypass
50Hz P  output frequency 50Hz; active bypass
60Hz P  output frequency 50Hz; active bypass
Confirm your choice with button (2) „Menu-option“.
By using the cursor buttons (3+4) the wanted storage can be chosen in case
of a savety query. Confirm with the button (2) “Menu-option”.
Safety query
Choice with cursor
