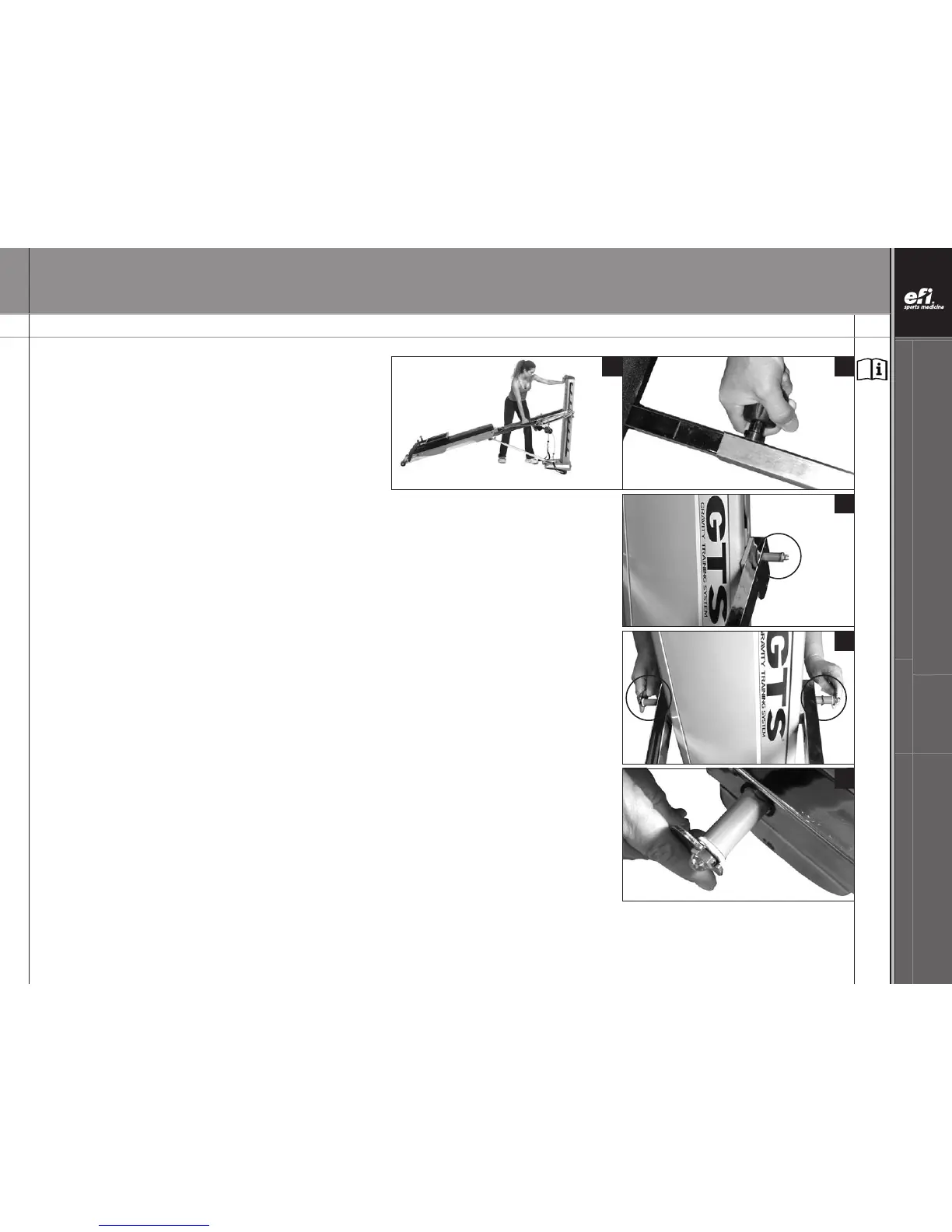

Figure 4a
15
16
17
18
14
INSTALL LAT BARS
14. With one hand holding the padded Center Rail
Crossbar (U) and another on the Tower (A), raise
the rails to Tower (A) level 5 or 6 for ease
of assembly, as shown.
15. Ensure that the Support Strut Knob (M) is engaged
and tight.
REMOVE THE SHIPPING SLEEVES - PHASE 1
16. Your GTS arrives with shipping sleeves on the ends
of the Tower Crossbar (Z). The shipping sleeves
serve one purpose: to protect the tower crossbar
during shipping.
17. To remove the first shipping sleeve, face the back
of the Tower (A) and take one of the supplied
wrenches in each hand.
NOTE: For easiest assembly, keep the Tower
Crossbar (Z) centered throughout the assembly
process, with each end extending about equal
distance from the Tower (A).
18. Apply one Wrench (GG) to the nyloc nut on one side
of the Tower Crossbar (Z) to immobilize the
Crossbar. Use the other Wrench (GG) to loosen the
nyloc nut by turning counterclockwise.
NOTE: Letters in (parentheses) refer to the PARTS IDENTIFIER on page 3 and/or the PARTS ASSEMBLY on page 4. Use as needed for clarification.
