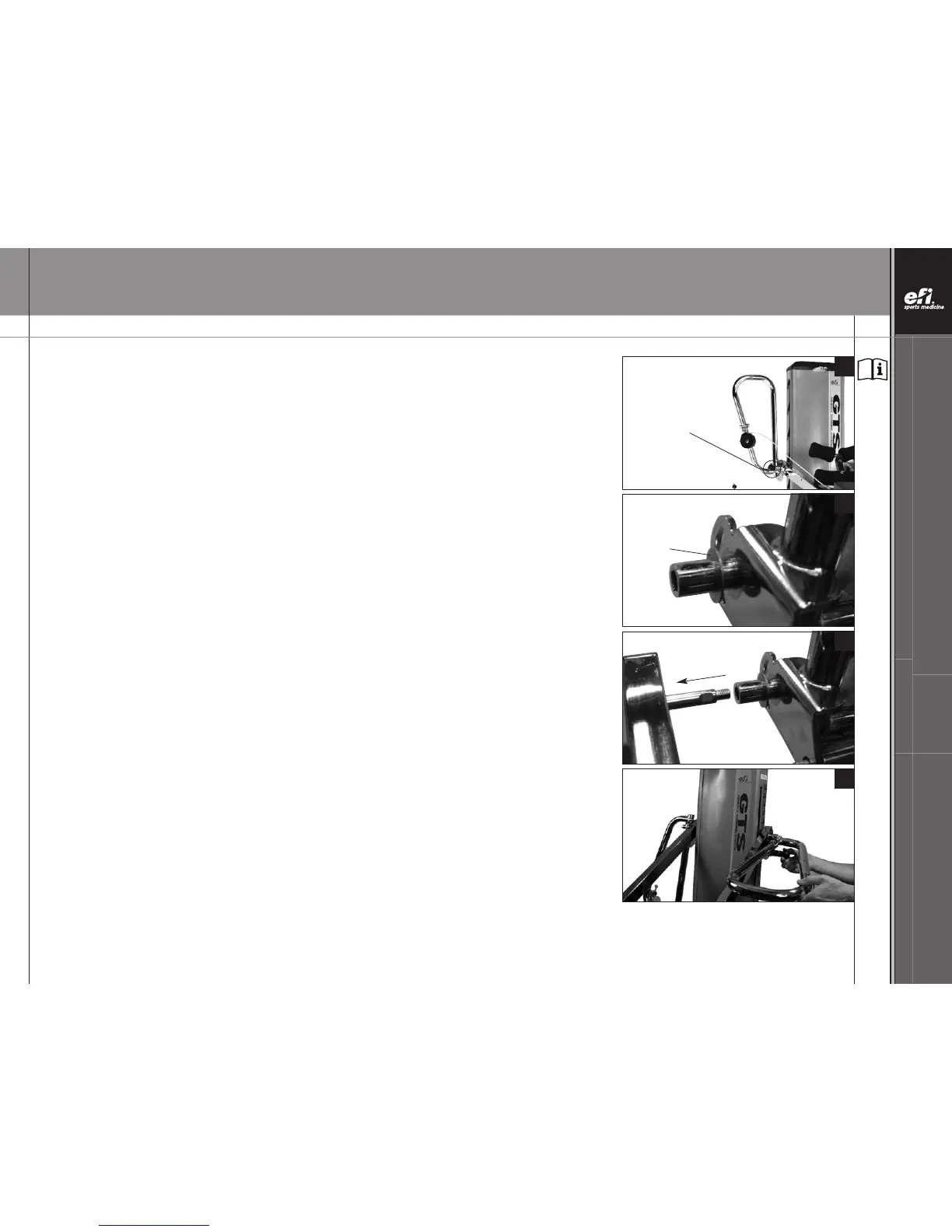

INSTALL LAT BARS (CONTINUED)
POSITION THE LAT BARS - PHASE 2
24.
To position the first LAT Bar (Y) for mounting, make sure the long, vertical side of the LAT Bar
(Y) aligns closest to the Tower (A). NOTE: The slotted holes face the back of the GTS, the black
knob faces the Glideboard (G).
25. Slide a Bronze Washer (HH) onto the LAT Bar cylinder.
26. Stand beside the tower and align the LAT Bar cylinder with the Tower Crossbar (Z).
REMINDER: Keep the Tower Crossbar (Z) centered during assembly. Slide the LAT Bar cylinder
onto the Tower Crossbar (Z) until it is securely seated on the Upper Rail (N).
27. Rotate the LAT Bar upside-down until the other LAT Bar is installed, and both nuts on the
Tower Crossbar (Z) have been tightened.
NOTE: Letters in (parentheses) refer to the PARTS IDENTIFIER on page 3 and/or the PARTS ASSEMBLY on page 4. Use as needed for clarification.
black knob
