EG4 14.3kWh PowerPro WallMount All Weather Battery User Manual

PowerPro WallMount All Weather Installation Manual
27

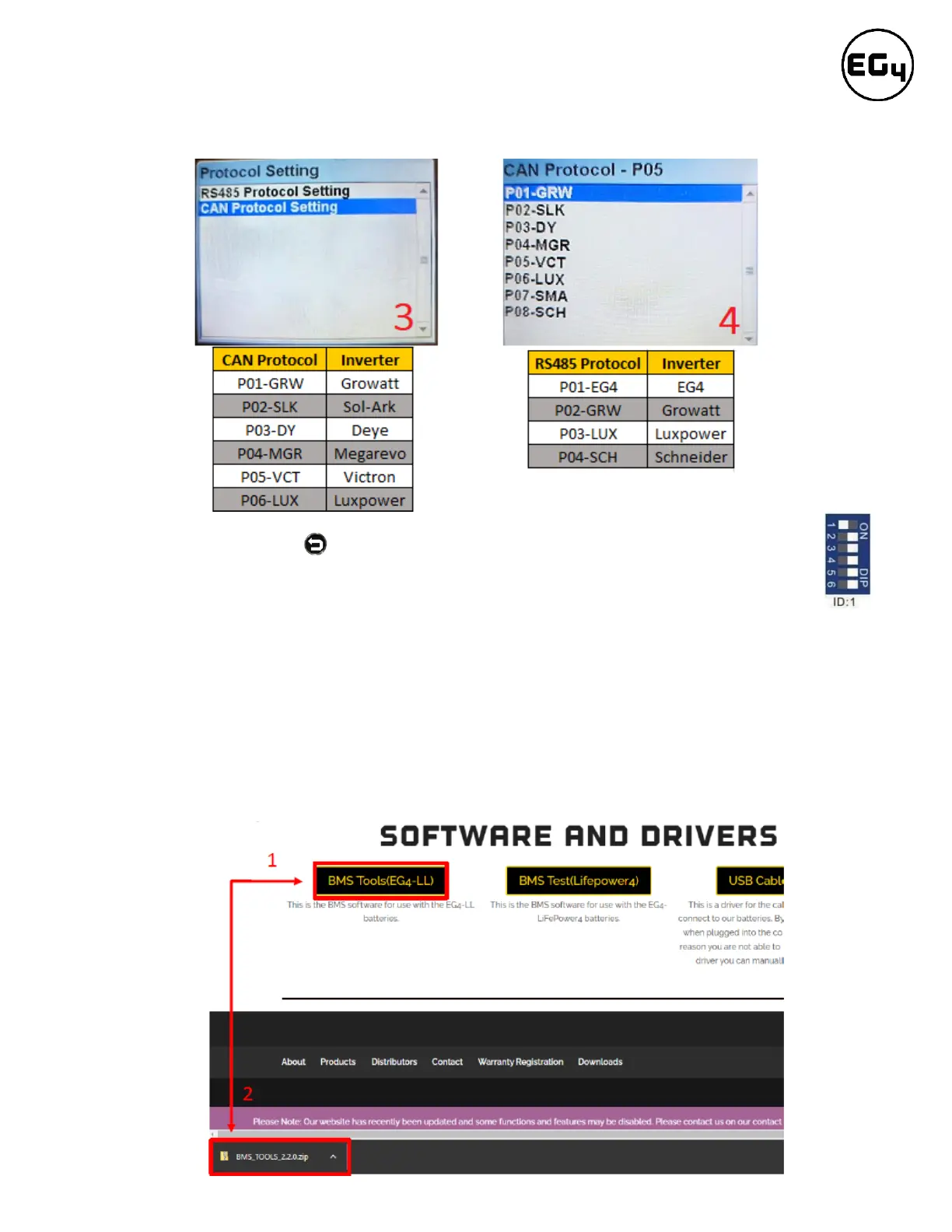

4. Select the corresponding RS485 program or CAN program, and press Enter.
5. Press the “Return” key to return to the main interface.
6. Change the master DIP switch address back to address 1. (See image on right.)
7. Power cycle the master battery, and the BMS will correspond to the protocol selected.
10. Operation Guide
10.1 BMS Tools Installation and Interfacing
The PC software “BMS Tools” provides real-time battery analysis and diagnostics. The battery cannot
communicate with BMS Tools and a closed loop inverter at the same time.
Visit eg4electronics.com/downloads to get the latest version of the software for free. It can be
found in the “Software and Drivers” section.

EG4 14.3kWh PowerPro WallMount All Weather Battery Specifications

General

Battery Capacity	14.3 kWh
Type	Lithium Iron Phosphate (LiFePO4)
Mounting	Wall Mount
Weather Resistance	All Weather
Nominal Voltage	51.2 V
Nominal Capacity	280 Ah
Max. Continuous Charging Current	100 A
Max. Continuous Discharging Current	100 A
Operating Temperature	-20°C to 60°C
Storage Temperature	-20°C to 45°C
Warranty	10 years
Enclosure	IP65
Scalability	Up to 16 units in parallel
Cell Type	Prismatic
Chemistry	LiFePO4
IP Rating	IP65
Cycle Life	6000 cycles at 80% DoD
Communication	CAN, RS485
Voltage Range	44.8V - 57.6V
