EG4 14.3kWh PowerPro WallMount All Weather Battery User Manual

PowerPro WallMount All Weather Installation Manual
30

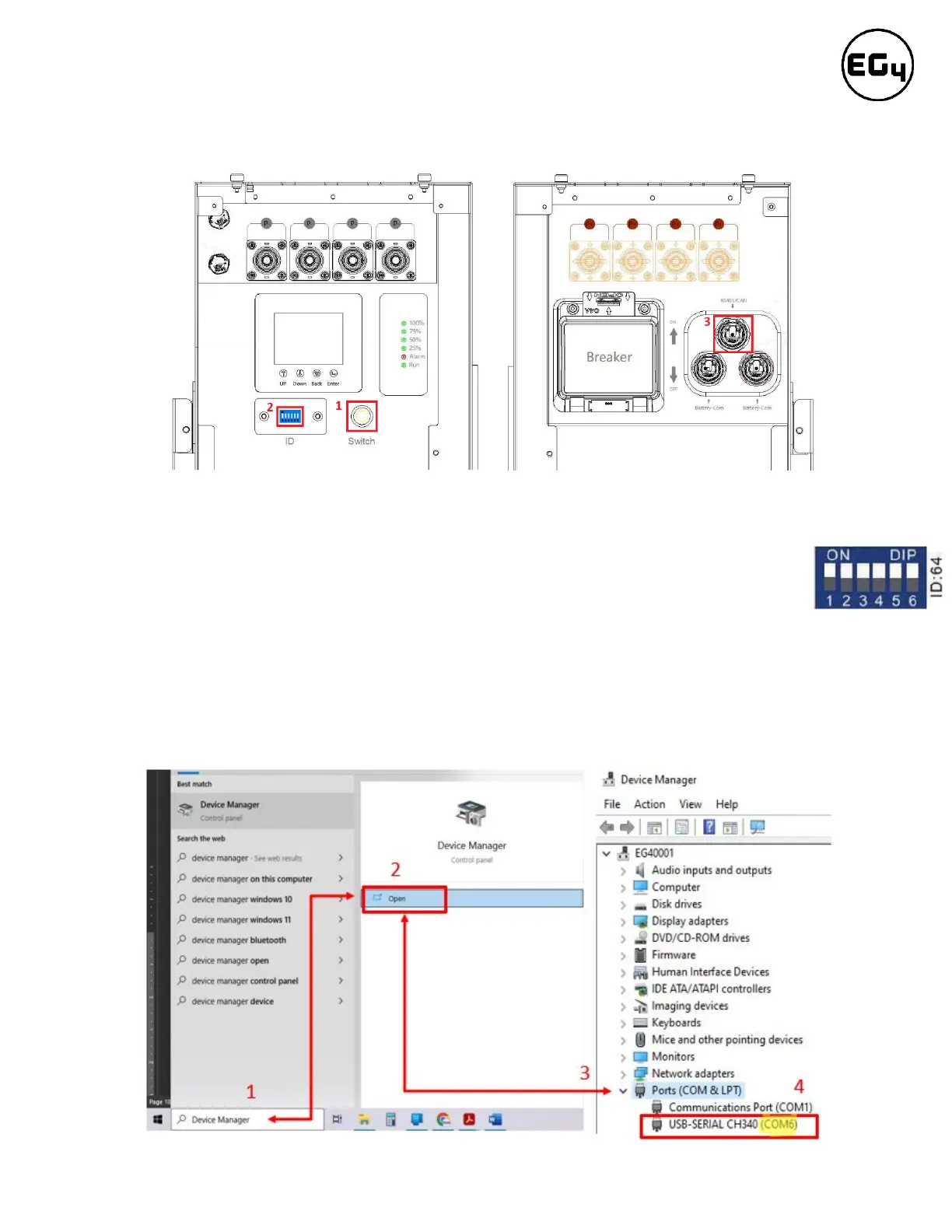

10.2 Interfacing with BMS Tools
1. Press the ON/OFF button on the battery to power off the BMS.
2. Set the DIP switch ID address of the battery to Address 64 (6-pin DIP, see image to
the right).
3. Connect the included battery-to-PC USB cable to your PC and to the RS485 port on the battery. (If
BMS Tools is running on your PC, close the program before continuing.)
4. Press the ON/OFF button to power on the battery.
5. In the search bar at the bottom of the PC screen, type “Device Manager.”

EG4 14.3kWh PowerPro WallMount All Weather Battery Specifications

General

Battery Capacity	14.3 kWh
Type	Lithium Iron Phosphate (LiFePO4)
Mounting	Wall Mount
Weather Resistance	All Weather
Nominal Voltage	51.2 V
Nominal Capacity	280 Ah
Max. Continuous Charging Current	100 A
Max. Continuous Discharging Current	100 A
Operating Temperature	-20°C to 60°C
Storage Temperature	-20°C to 45°C
Warranty	10 years
Enclosure	IP65
Scalability	Up to 16 units in parallel
Cell Type	Prismatic
Chemistry	LiFePO4
IP Rating	IP65
Cycle Life	6000 cycles at 80% DoD
Communication	CAN, RS485
Voltage Range	44.8V - 57.6V
