7.2 INSTALLATION OF BEAM & COLUMN
Below are the steps to assemble the leg groups for EG4
®
BrightMount Adjustable Cat1.

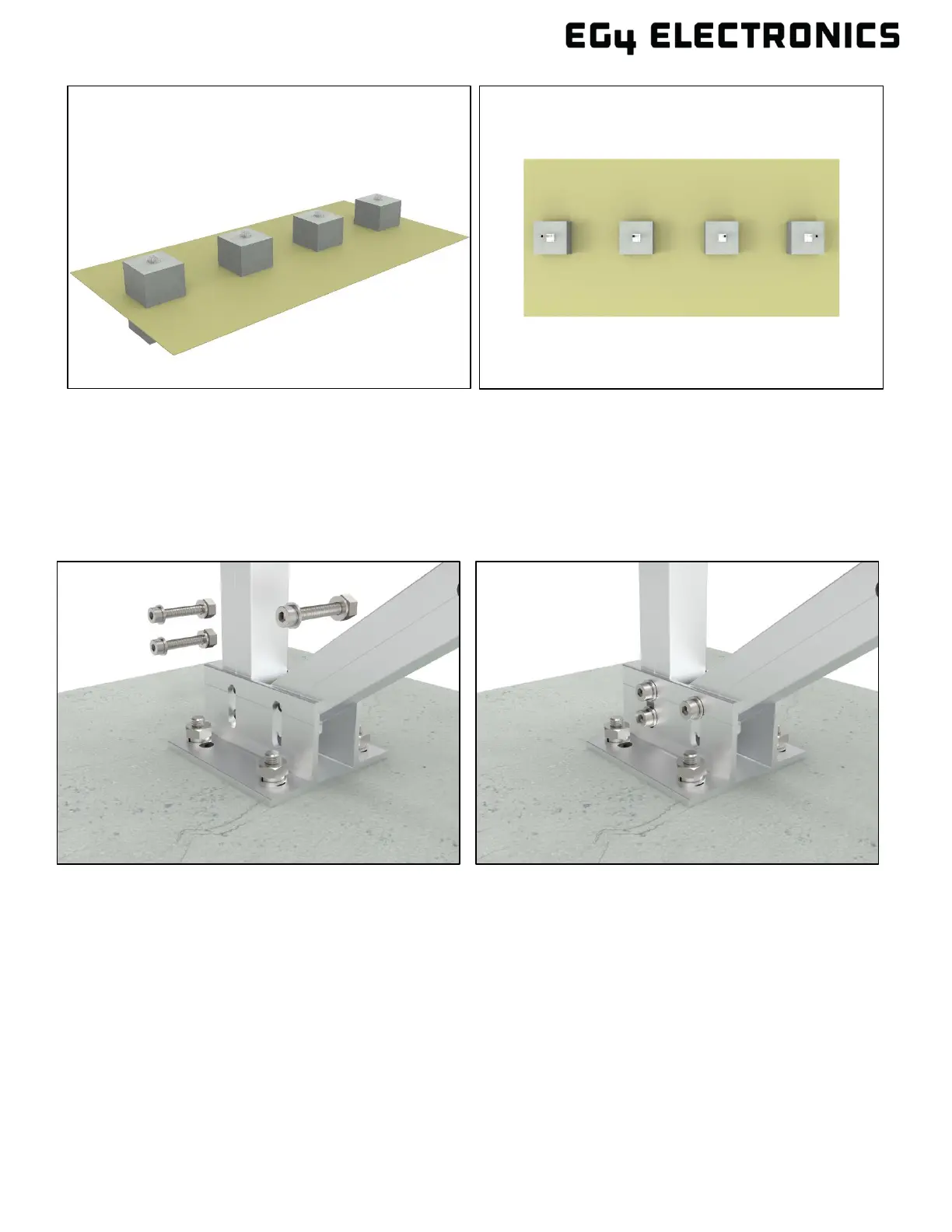

Step 1: Unfold the beam & column leg assembly and align the holes with the base slot holes. Once
aligned, install an M8*60 bolt, flat washer, spring washer, and 17 mm nut on each anchor bolt and
torque the 17 mm nuts to 115 in-lbs. (13Nm).
