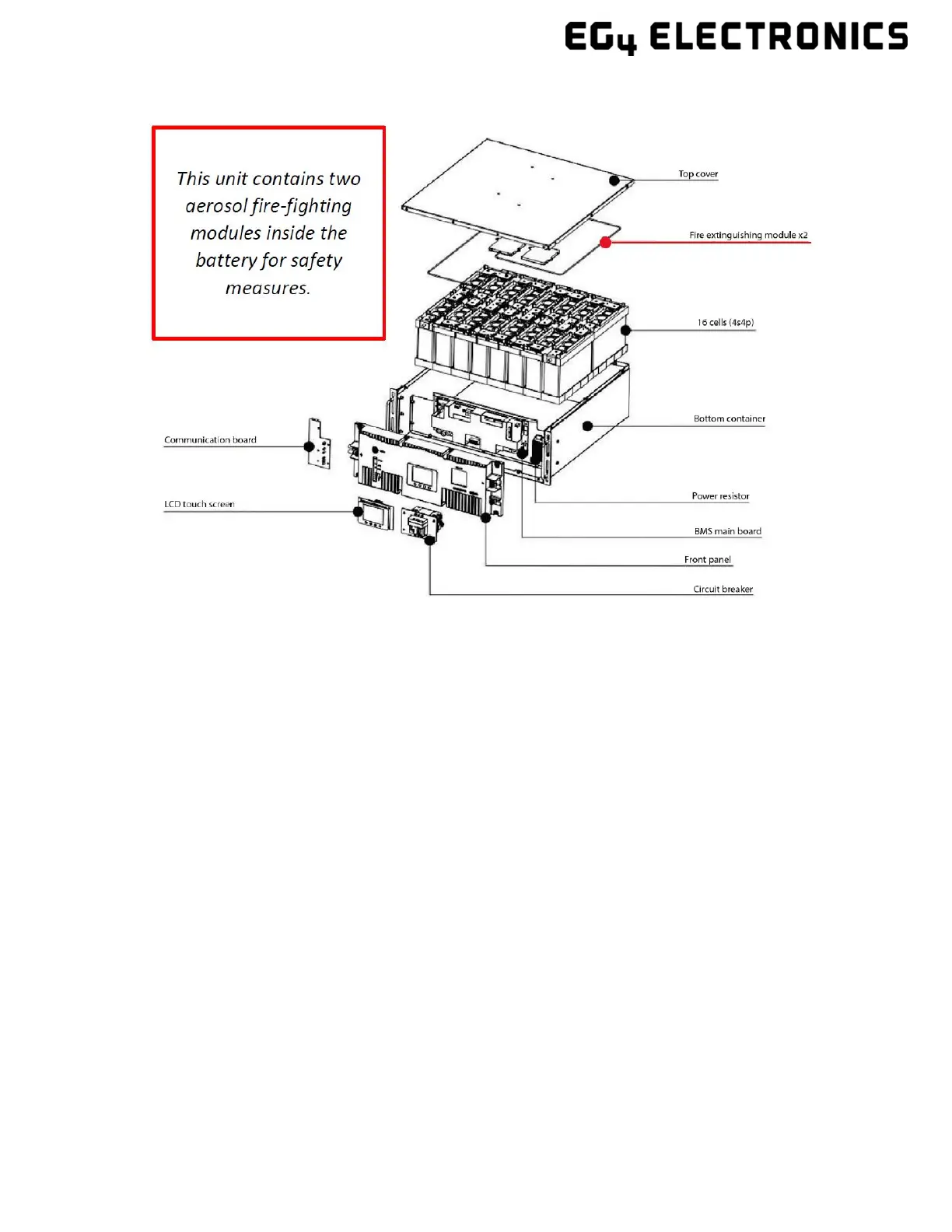

Overview of System Components
The battery module is made up of sixteen "AAA" grade cells, a BMS, a housing, a breaker, and wire. It
can be installed in a standard 19-inch cabinet and communicates with external devices via CAN/RS485
as well as with other EG4 batteries via RS485. The modules can be connected in parallel to meet
expansion requirements. Inter-battery communications support a maximum of 16 modules.

EG4 LL Specifications

General

Nominal Voltage	51.2V
Nominal Capacity	100Ah
Energy	5.12 kWh
Max. Continuous Discharging Current	100A
Warranty	10 years
Cycle Life	6000 cycles @ 80% DoD
Communication	CAN, RS485
Scalability	Up to 16 in parallel
Operating Temperature	-4°F to 131°F (-20°C to 55°C)
Battery Type	LiFePO4
Protection	High Temperature, Low Temperature, Short Circuit
C Rating	1C
