13

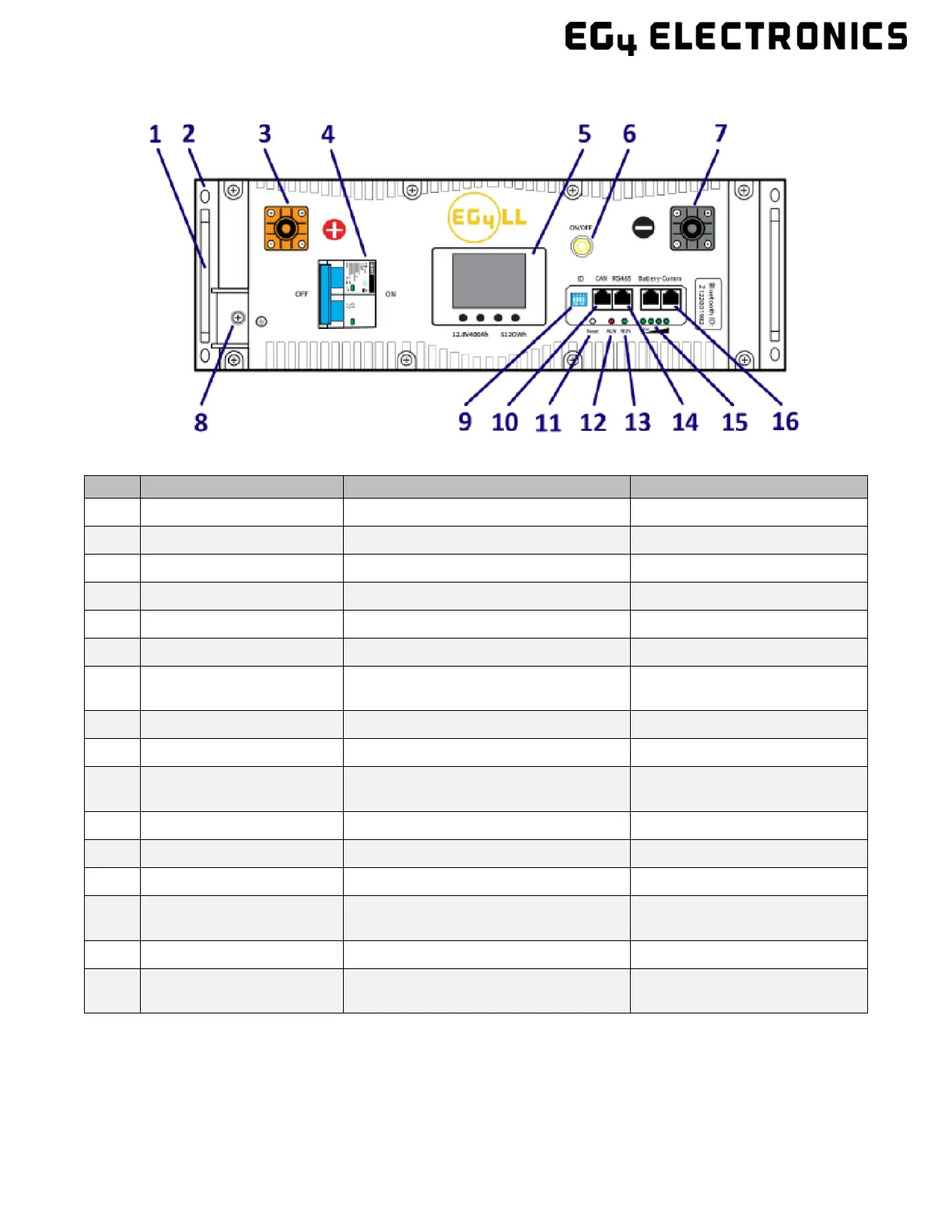

Battery Diagram
No.
Item
Description
Remarks
1
Handle
Handle to carry module
2
Rack mount ear
For rack mounting
3
Battery positive terminal
Terminal M8 screw
4
Circuit Breaker
Shuts down power supply
5
HD LCD
HD touch screen
6
ON/OFF Button
Button to turn BMS On/Off
7
Battery negative
terminal
Terminal M8 screw
8
Ground Screw
Grounding point for chassis
9
ID Board
DIP switch board for BMS
10
CAN port
CAN bus port for communication
Pin 4 - CAN_H
Pin 5 – CAN_L
11
Reset Button
Emergency reset
12
ALM LED
Alarm status LED
13
RUN LED
Run status LED
14
RS485 port
RS485 communication port
Pin 1 & Pin 8 – RS485_B
Pin 2 & Pin 7 – RS485_A
15
SOC LED
State of charge LED
16
Battery-Comm ports
Parallel battery communication port
Pin 1 & Pin 8 – RS485_B
Pin 2 & Pin 7 – RS485_A

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the EG4 LL and is the answer not in the manual?

EG4 LL Specifications

General IconGeneral
Nominal Voltage51.2V
Nominal Capacity100Ah
Energy5.12 kWh
Max. Continuous Discharging Current100A
Warranty10 years
Cycle Life6000 cycles @ 80% DoD
CommunicationCAN, RS485
ScalabilityUp to 16 in parallel
Operating Temperature-4°F to 131°F (-20°C to 55°C)
Battery TypeLiFePO4
ProtectionHigh Temperature, Low Temperature, Short Circuit
C Rating1C
