Operator’s Manual Park Ranger 2150 Hedge cutter Operator’s Manual Park Ranger 2150 Hedge cutter
2.1 Assembly / Disassembly -
continued

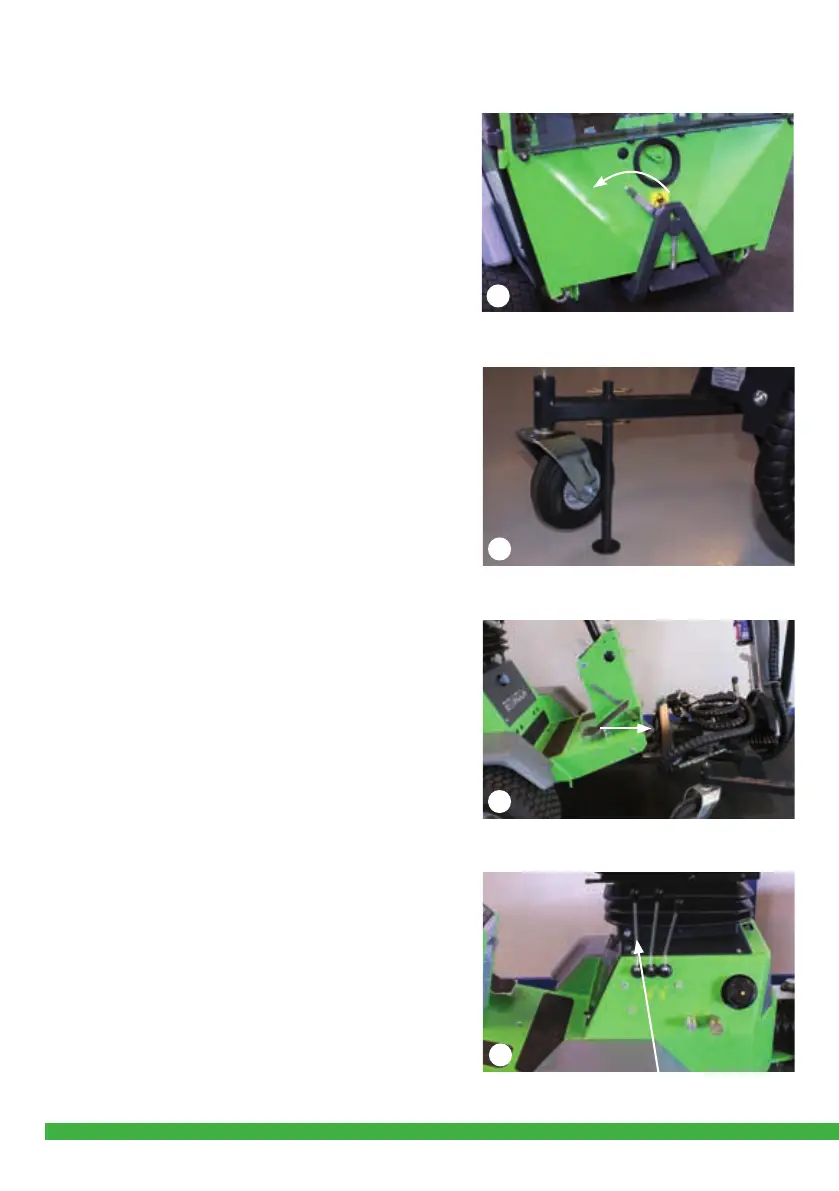

1. The locking handle on the A-frame of the
basic machine must be in the unlocked position.
(Picture 1)
Tips!
Raise the Hedge cutter front wheels free of the
ground and lower the support struts, so that the
Hedge cutter A-frame is angled back.
This makes it much easier to ‘catch’ the A-frame
when attaching. (Picture 2)
2. Drive the machine right up to the A-frame of the
Hedge cutter so the A-frames t into each other.
(Picture 3)
3. Raise the A-frame using lever A on the left-hand
side of the Basic machine until the Hedge cutter
is freely suspended above the ground. (Picture 4)
4. Switch off the engine.
Locking
Lever A
Unlocked A-frame
Support strut lowered
U
n
l
o
c
k
e
d
