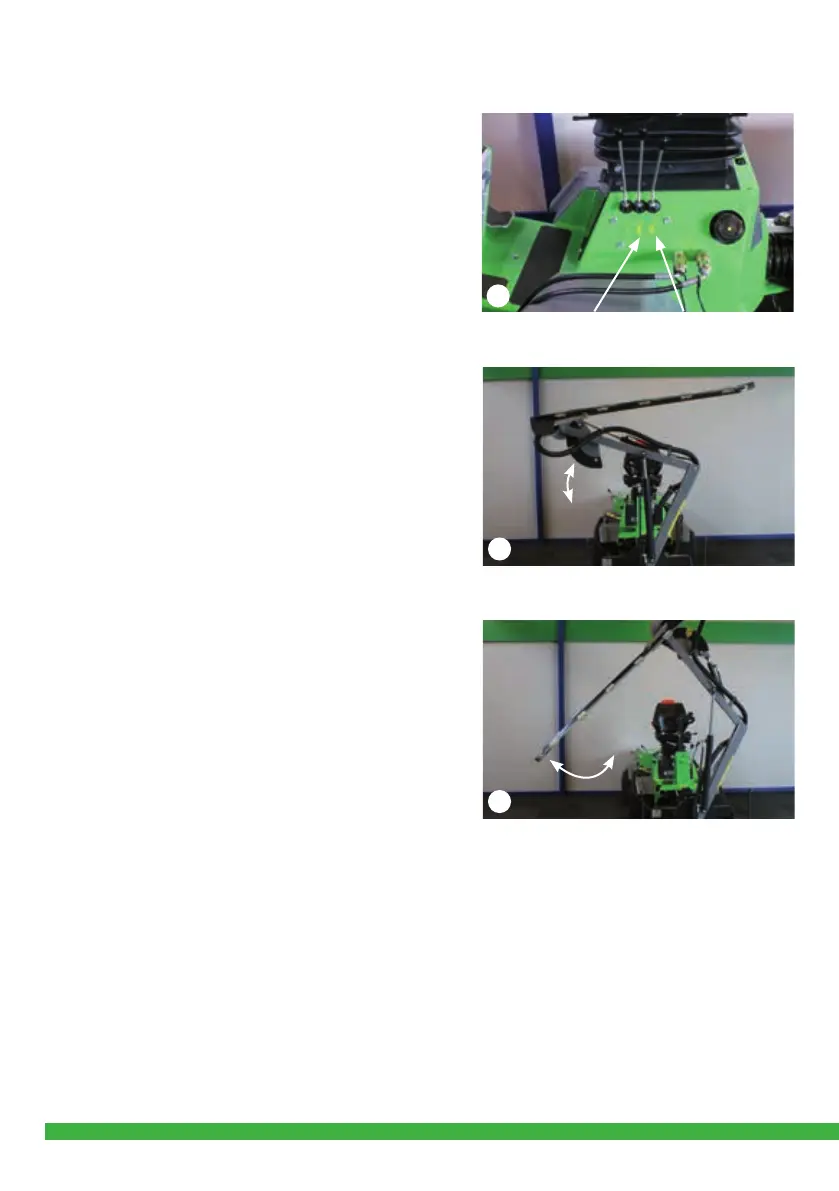

2.4 Setting trimmer position
To set trimmer position, move Levers B and C
either towards or away from the seat. (Picture 1)
Hedge trimming on the left of the machine
1. Use Lever C to move the cutting arm.
(Picture 2)
2. Use Lever B to move the cutting bar.
(Picture 3)
Horizontal/vertical hedge trimming to the left
1. Activate Lever B until the cutting bar reaches
the required position.
2. To trim at higher horizontal/vertical positions:
Activate Lever C to move the cutting arm
upwards. Use Lever B to reposition the cutting
bar.
Lever B Lever C
Cutting arm
Cutting arm
