2.4 Setting trimmer position -
continued
Change from left to right side of machine

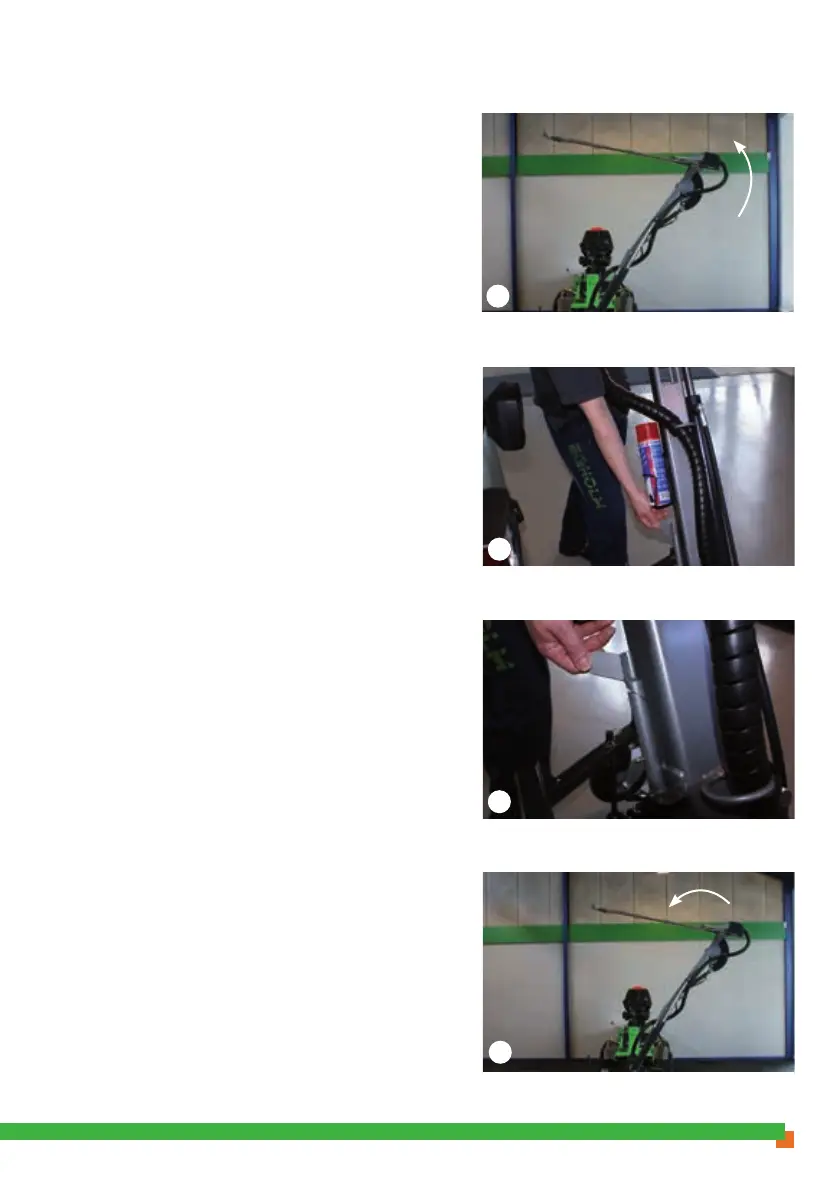

1. Use Lever B to move the cutting bar. Do not
stop the machine until the cutting bar end is on
the right. (Picture 1)
2. Move the boom from left to right position.
Free the locking pin by turning the handle out to
90°.
The boom can now be tilted to the right side and
locked. (Pictures 2 + 3)
Tips!
Narrow paths
If a narrow path has to be trimmed, tilt the boom
all the way over to the opposite side. The cutting
bar remains close to the machine.
Tips!
Reach
If a long side-reach is required, tilt the boom to
the side where trimming is to be done. (Picture 4)
Cutting bar on right side.
Boom adjustment
Arm to right
Locking pin
