Operator’s Manual Park Ranger 2150 Hedge cutter
2.1 Assembly / Disassembly
Delivery
The arm and cutter are delivered on one pallet.

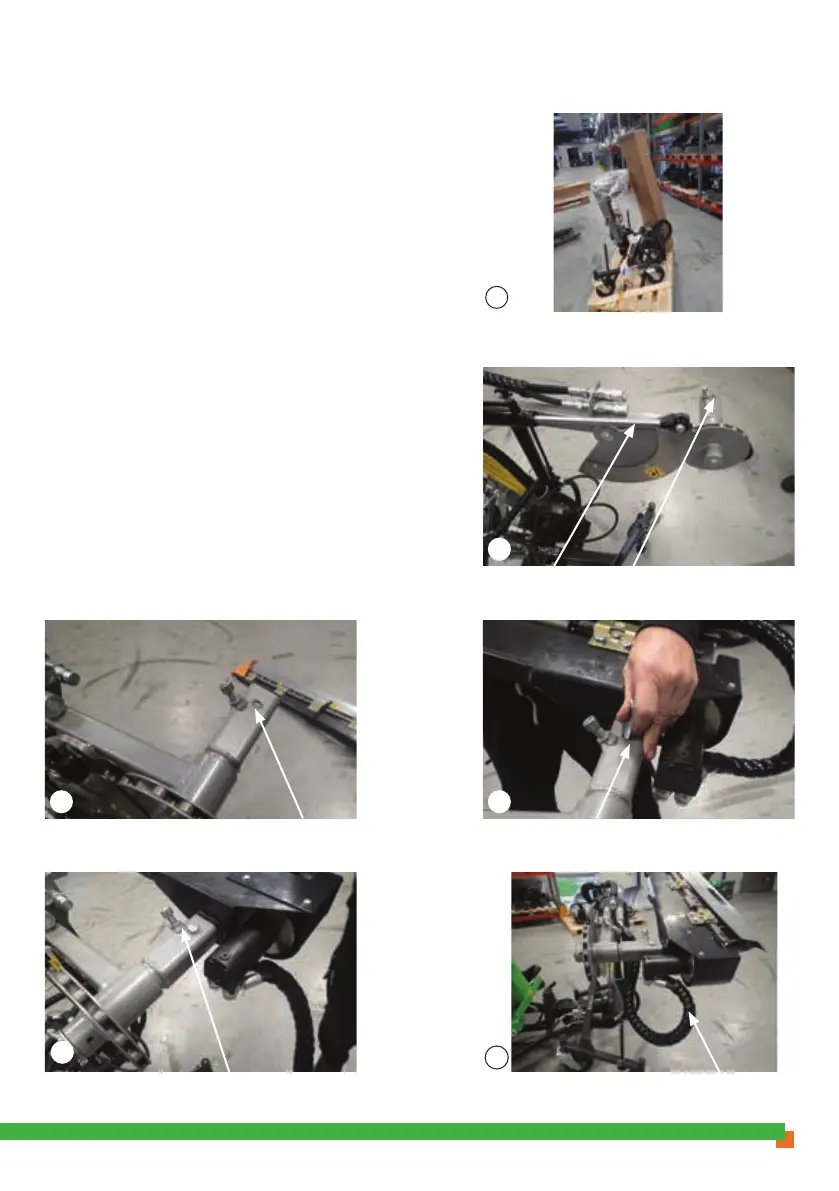

(Picture 1)
Unpack both parts and place them on a plan surface
1. Check the arm, the top hydraulic cylinder must be in
out position (Hole in square pipe pointing up and down.)
(Picture 2+3)
2. Mount the cutter knife in the square hole, put in the
M10 bolt (Picture 4).
Mount and tighten the bolt with M10 nut.
Tighten the allen bolt and check the cutter can not
move at all from the cutter arm square pipe. (Picture 5)
3. Mount the hydraulic hoses. The hoses must be
guided below the cutter arm square pipe. (Picture 6)
The Hedge cutter is now ready to mount on the Basic
machine.
Operator’s manual
The arm and cutter are delivered on one
pallet
Hole in square pipe pointing up and down
Cylinder in out position
Mount the cutter knife in the square hole,
M10 bolt
The hydraulic hoses must be guided
below the cutter arm square pipe
Hole in square pipe pointing up and down
Tighten the allen bolt. Check the cutter can not
move at all from the cutter arm square pipe.
