3. Adjust the deck-height-adjustment lever to the lowest cutting height position.
4. Disconnect three blade motor cables (Fig.1a).
5. Place a rug or a mat (similar in size to that of the deck) under the deck to prevent the damage to the deck.

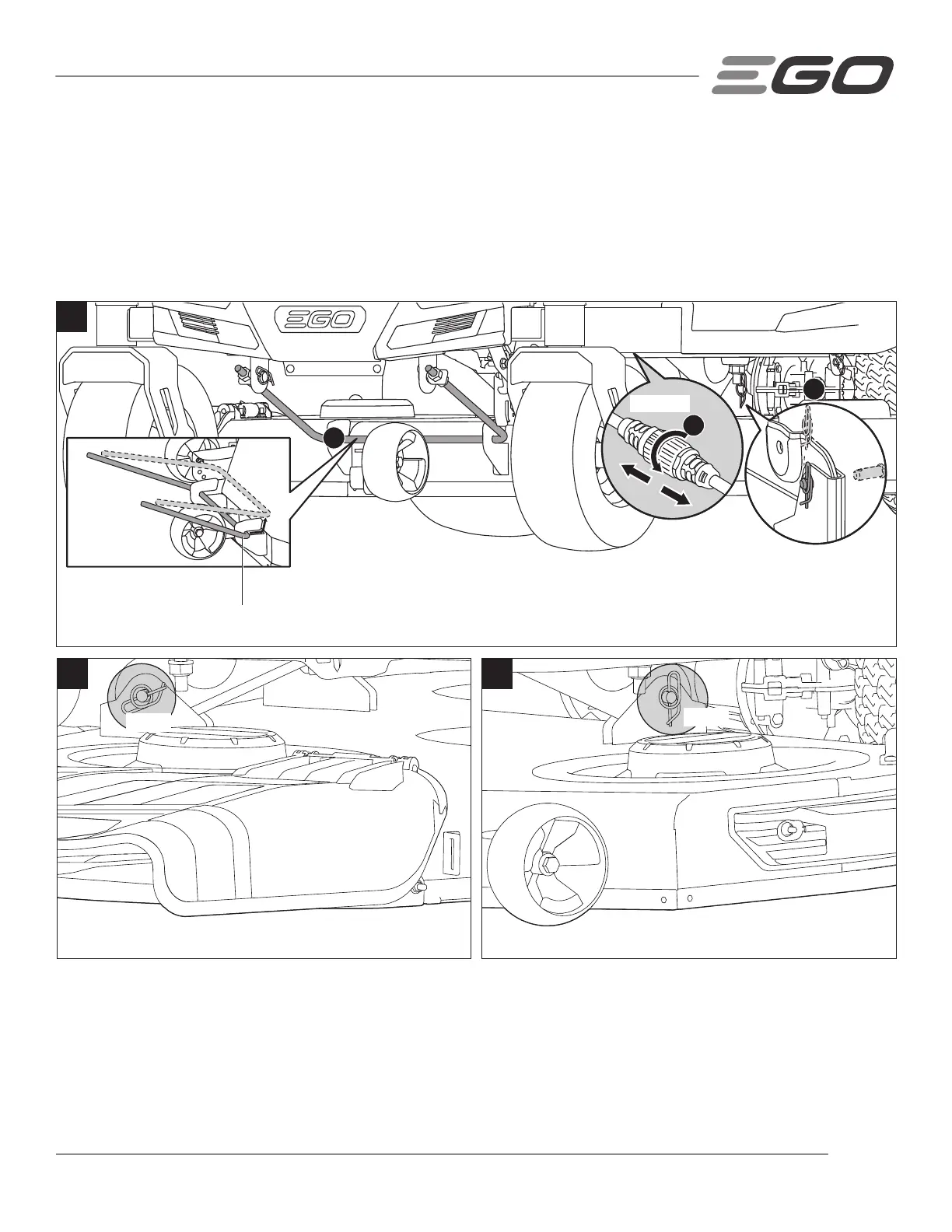

6. Remove the cotter pins and push the shaft pins out. Save both sets for deck re-assembly (Fig. 1a & b & c).
7. Push the deck forward (towards the front wheels) and rotate the suspension linkage counterclockwise to release it
from the deck hooks (Fig. 1a).
1b
Right side
1c
Left side
3
1
2
1a
Motor Cable
Cotter Pin
Suspension Linkage
Cotter Pin
Cotter Pin
