25

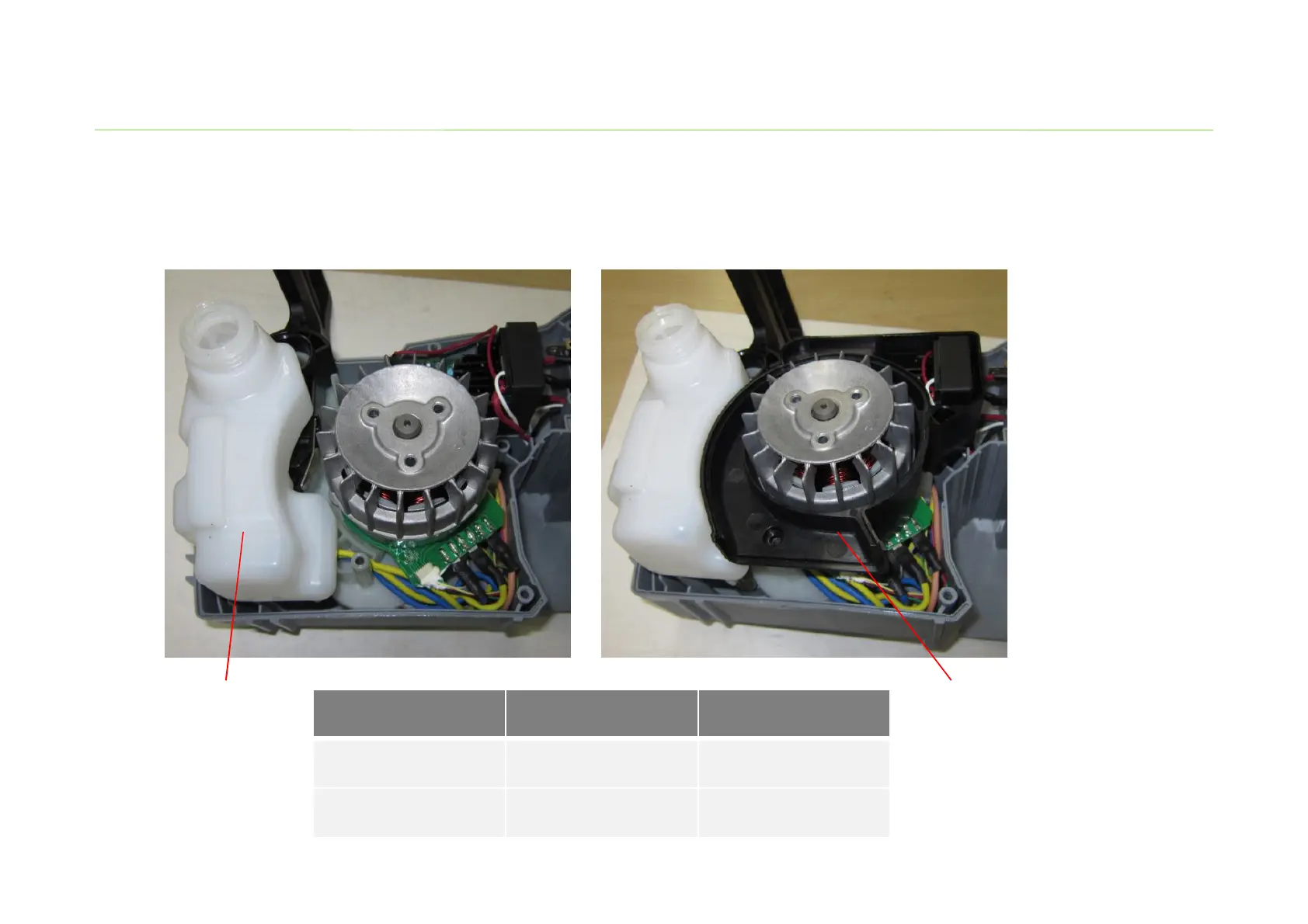

12. Move the oil tank to the position as the figure shown below.
13. Mount the fan baffle to the motor and lock it with 4 screws.
Description Part Number Quantity
Tapping screw
5610042000
4 pcs
Fan baffle
3127502000
Fan baffle
Assemble the Product
Oil tank
assembly
