2. Front Axle Replacement
6. Disassemble the front
wheels(see Part 9).
7. Replace the broken front axle
with a new one.
8. Mount the wheels onto the
new front axle(see part 9).

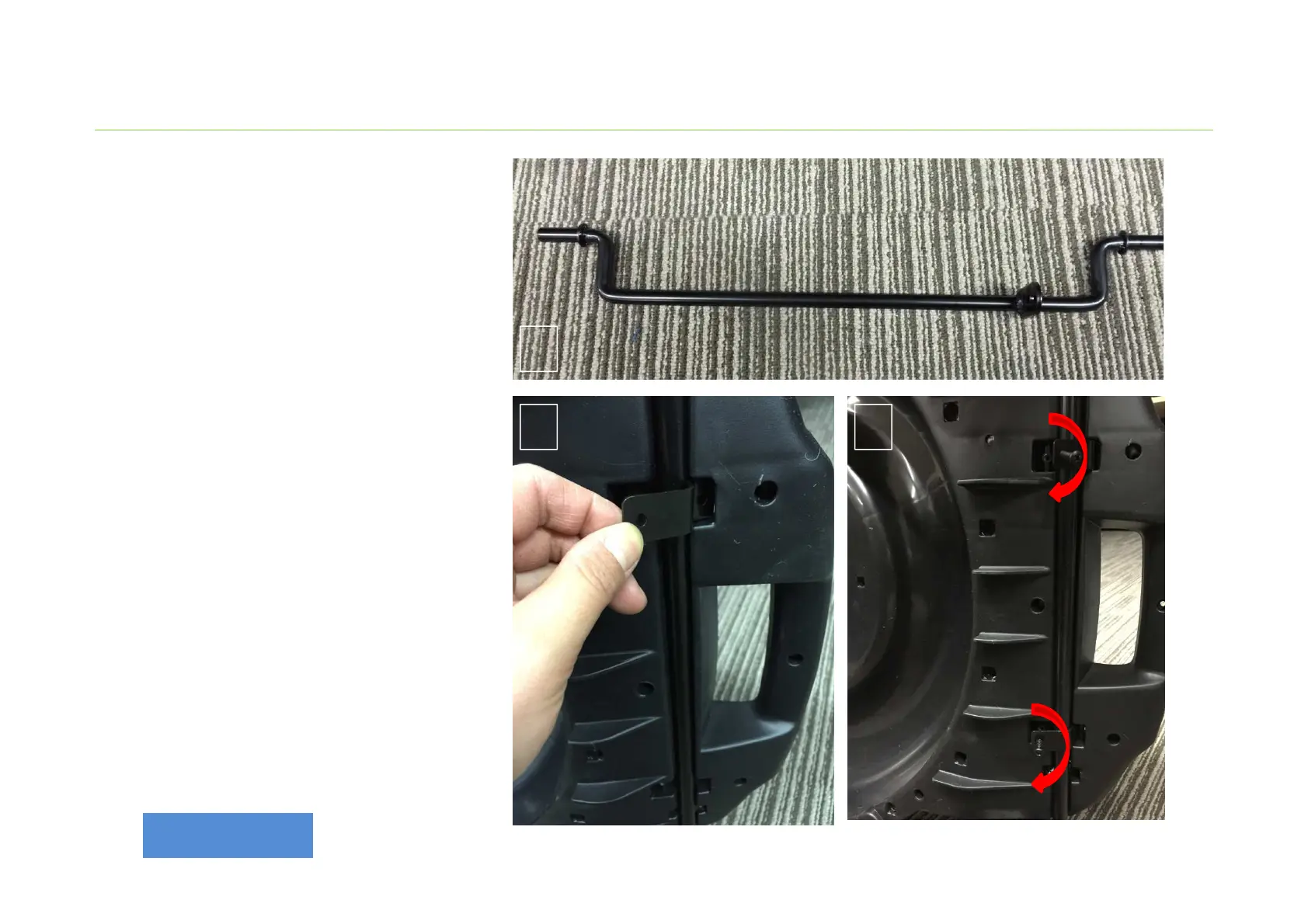

9. Mount the front axle into the
mower deck groove and then
insert the mounting plates into
place. Lock them by tighten
the 2 screws(Fig. 2 &3).
10. Close the housing cover.
11. Assemble the power unit onto
the mower(see Part 2.1).
