EGO LM2120E-SP - Page 38

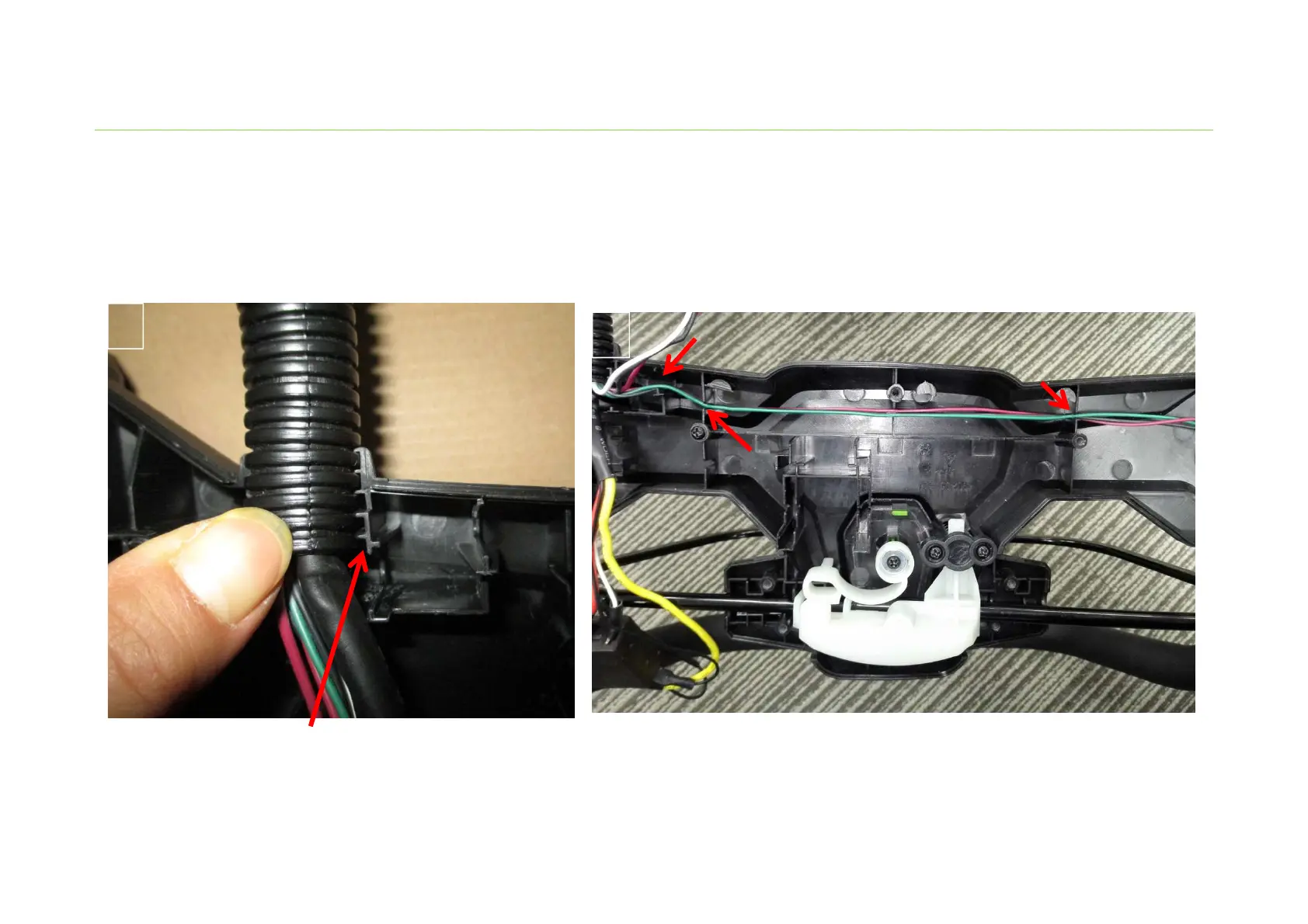

3. Align the bellows into the housing groove with at least five threads located in (Fig. 1) .
4. Align the self-propelled speed-adjusting PCB wires into the grooves (Fig. 2).
21
At least 5 threads of the bellows
located in the housing groove
1
6. The Main Switch/Self-propelled Switch/Speed- adjusting PCB
2
