Handle
locking
clamp
2. Separate the top and bottom housing, remove the bottom housing from the side rail and beam tube.
3. Replace the left beam housing set if they appear to be worn.
4. Assemble the handle locking clamp onto the new left beam housing as shown in Part 5.
Description Part Number
Left Beam Housing Set 2824427001
Handle Locking Clamp Set 2823714002
12

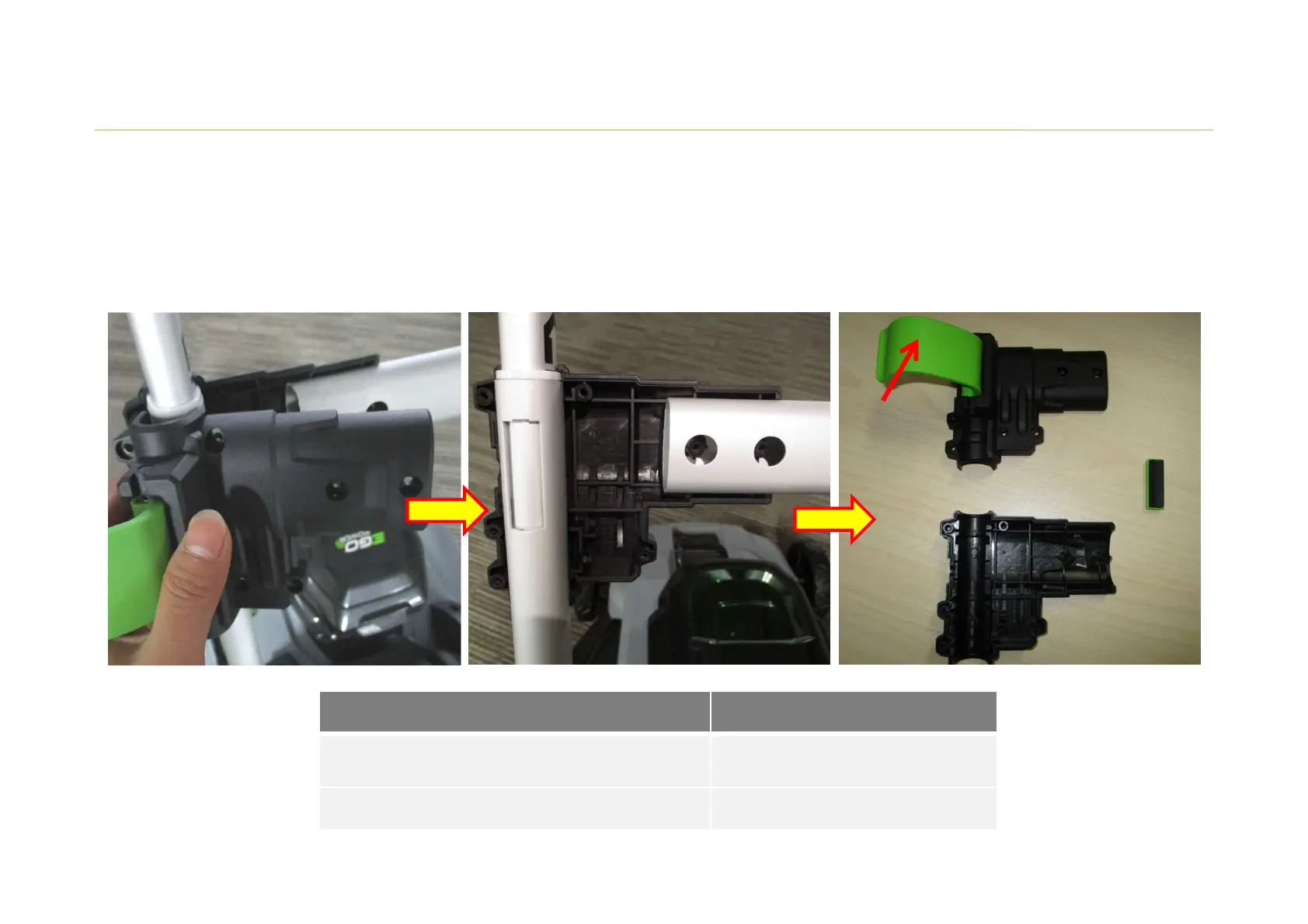

3. Opening the Left Beam Housing
LM2120E-SP Lawn Mower
