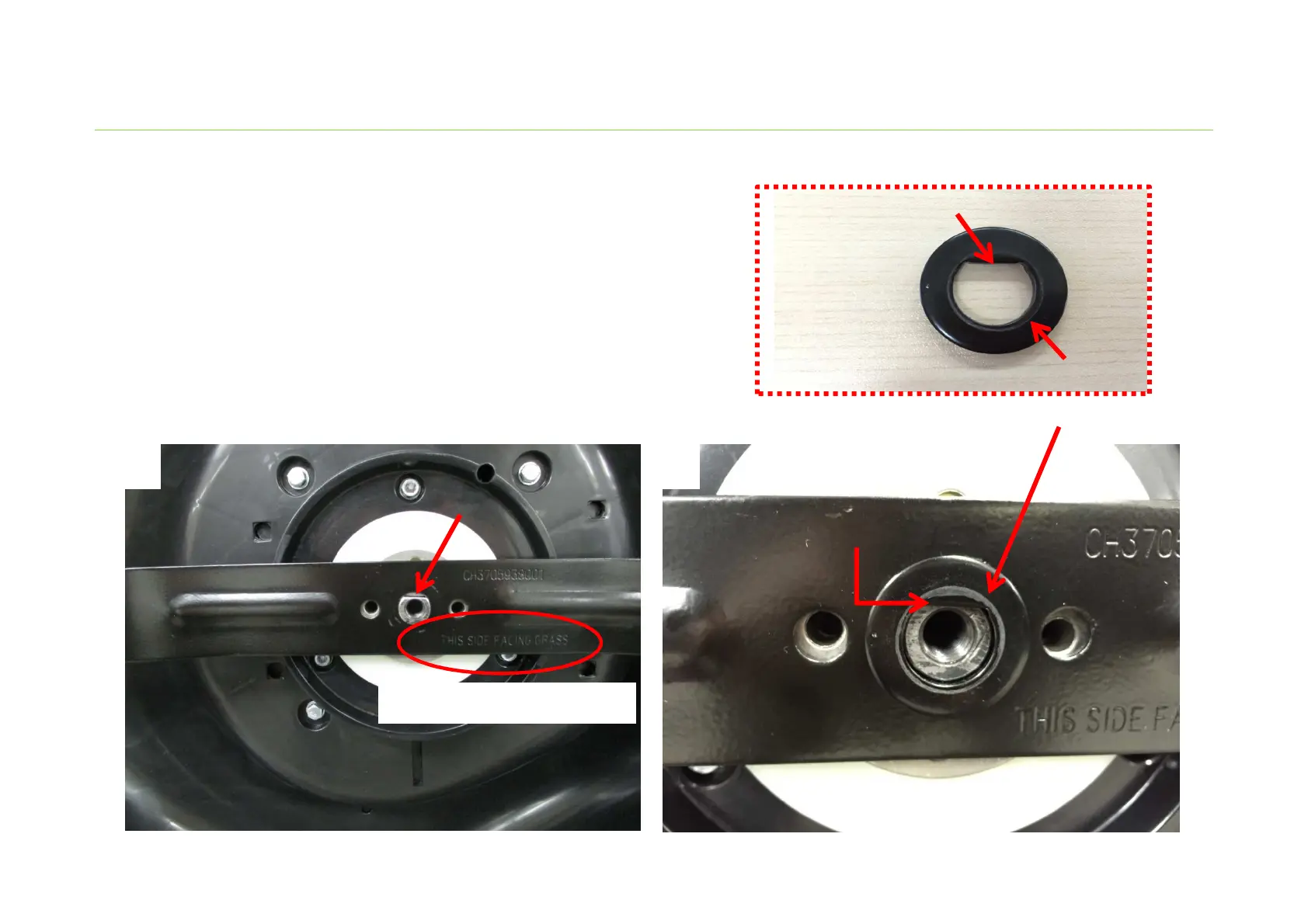

3. Mount the blade onto the inner flange with the
surface stating “THIS SIDE FACING GRASS” facing
outwards (Fig. 1) .
4. Aligning the flat position of the outer flange with
the corresponding flat position on the motor
shaft, mount the outer flange in place(Fig. 2).
2. Blade Installation
Flat position
Outer Flange
This side facing outside
Flat position on the motor shaft
1 2
Flat position
7
LM2120E-SP Lawn Mower
