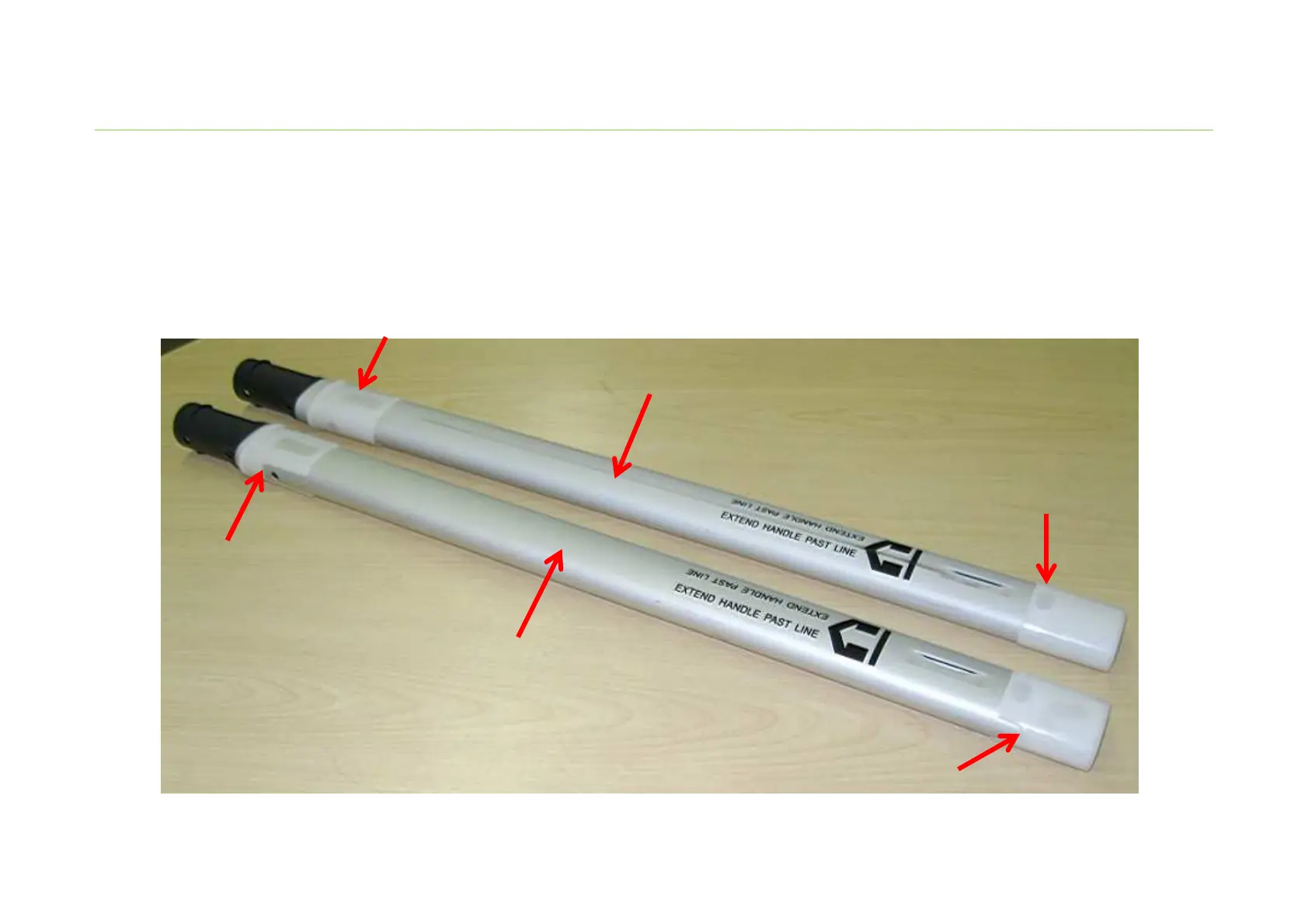

6.
Insert the l
eft/right tube assembly into
the outer t
ube. The left and right inner tubes ar
e
not
inter
cha
ngeable.
Left inner tube ASSY
Right inner tube ASSY
Opening in the pla
stic
sleeve
on left side
Opening in the pla
stic
sleeve
on left side
Opening in the pla
stic
sleeve
on right side
Opening in the pla
stic
sleeve
on right side
17
5. R
eplacing
the Left/Righ
t
Inner T
ube ASSY
/Bea
m T
ube
LM2120E-SP La
wn Mower
70
72
Table of Contents
Table of Contents
2
Blade Removal
3
Blade Installation
6
Repair Guideline
10
PART 3: REAR COVER_LM2120E-SP Lawn Mower
10
Rear Cover Replacement
11
Top Handle & Switch Box COVER_LM2120E-SP Lawn Mower
18
Table of Contents
19
Top Handle & Parts in Switch Box Cover Replacement
20
Opening the Switch Box Cover
21
Switch Actuator
24
The Safety Button Replacement
24
The Main Switch Set(Lever/Trigger) Replacement
28
The Top Handle Replacement
31
To Replace the Top & Bottom Switch Box Cover
32
The Main Switch/Self-Propelled Switch/Speed-Adjusting PCB
33
The Main Switch/Self-Propelled Switch/Speed- Adjusting PCB
34
Test the Self-Propelled Speed-Adjusting PCB
37
Test the Self-Propelled Switch
37
Test the Main Switch
37
Align the Self-Propelled Lever into the Top Switch Box Cover
40
Closing the Switch Box Cover
44
HANDLE LOCKING CLAMP_LM2120E-SP Lawn Mower
47
Handle Locking Clamp Replacement
48
LEFT/RIGHT BEAM HOUSING_LM2120E-SP Lawn Mower
55
Left/Right Beam Housing Replacement
57
Opening the Right Beam Housing
58
Closing the Right Beam Housing
61
Opening the Left Beam Housing
65
Closing the Left Beam Housing
67
Replacing the Left/Right Inner Tube Assy/Beam Tube
69
Replacing the Left/Right Inner Tube Assy/Beam Tube
70
QUICK ADJUSTING LEVER_LM2120E-SP Lawn Mower
74
Quick Adjusting Lever Replacement
75
Wheels Replacement_Lm2120E-SP Lawn Mower
84
Rear Wheel Replacement
86
This Side Facing Wheel
89
This Side Facing Protective Cap
89
Front Wheel Replacement
92
Housing Cover and Front Axle Replacement_Lm2120E-SP Lawn Mower
94
Housing Cover Replacement
96
Front Axle Replacement
101
5
Based on 1 rating
