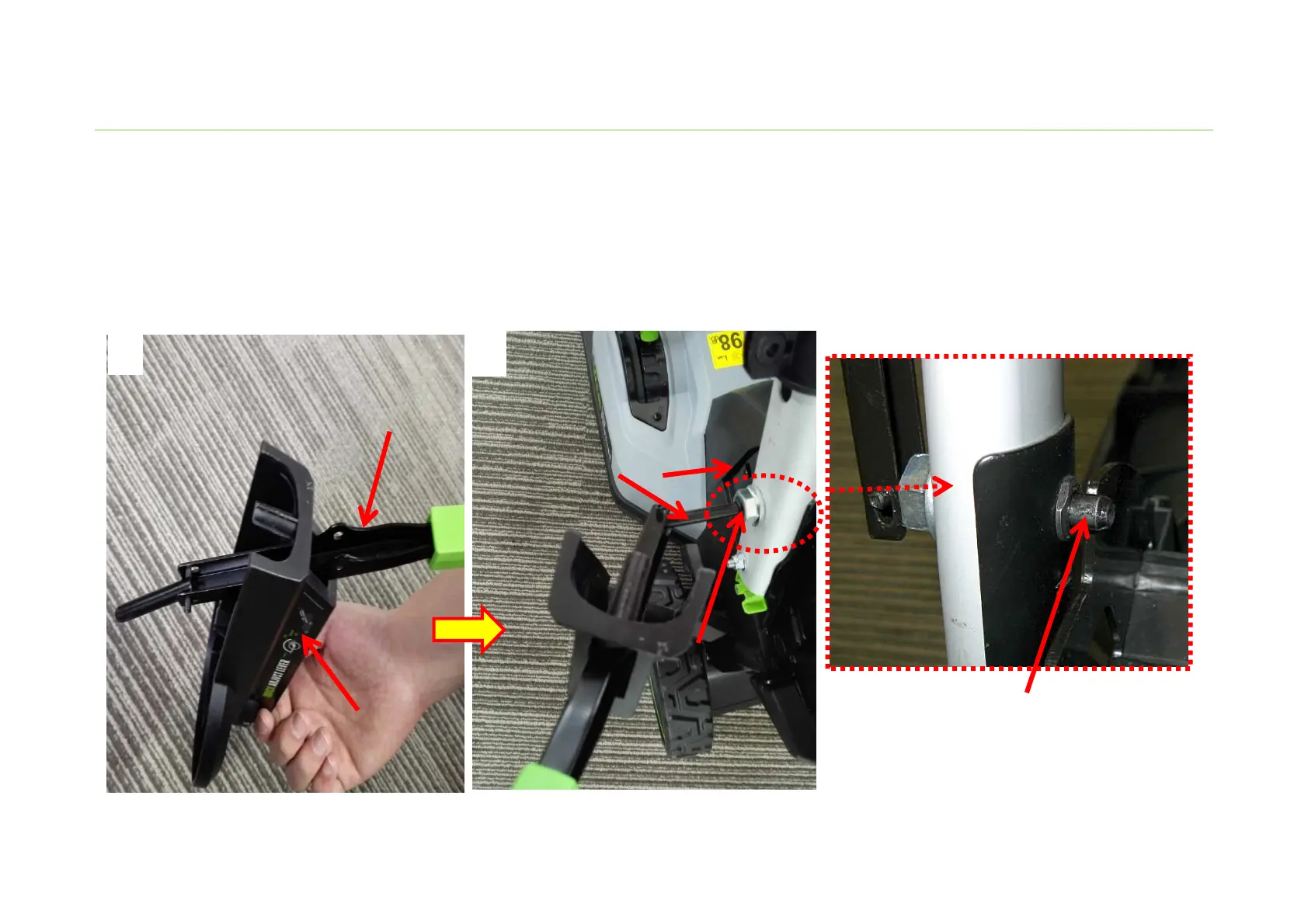

6. Pass the adjusting lever through the decorative cover (Fig. 1).
7. Move the handle to Grass bag removal position.
8. Align the locking pin with the nut bushing, fully force the pin into the bushing and let the pin extend
out of the side tube so that the handle can be locked at the position (Fig. 2).
Quick Adjusting Lever Replacement
Extend the pin out of the side
that the handle can be locked at the
grass bag removal position
7
Decoration cover
Adjust lever
1
2
Locking pin
Nut bushing
LM2120E-SP Lawn Mower
